235/85-16 on Stock Suspension, No Body Lift & All Original Panels

More
17 Apr 2022 19:08 - 17 Apr 2022 21:06 #242947 by Rabid Rhino
Pics speak for themselves














Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Last edit: 17 Apr 2022 21:06 by Rabid Rhino.
The following user(s) said Thank You: Soeley

Please Log in or Create an account to join the conversation.

More
17 Apr 2022 21:21 - 20 Apr 2022 02:55 #242954 by Rabid Rhino

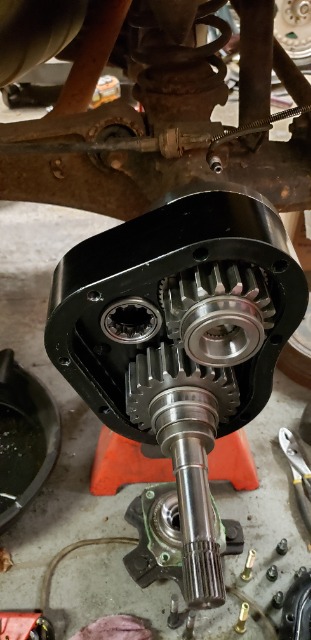

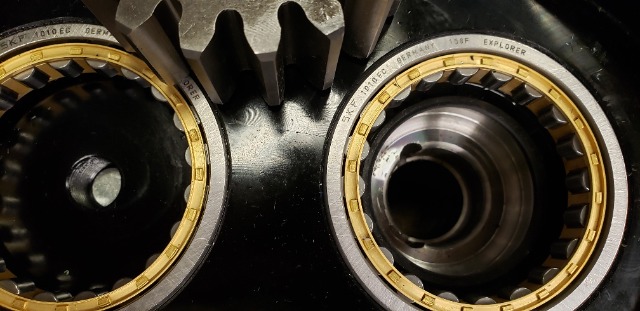

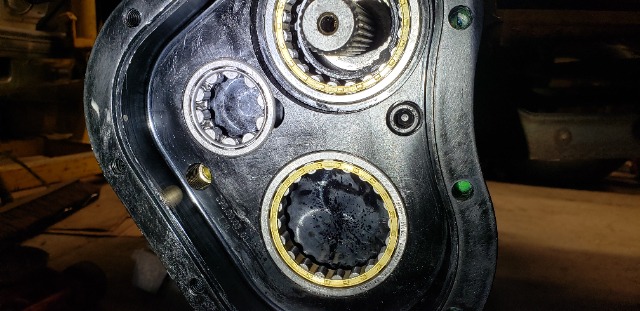

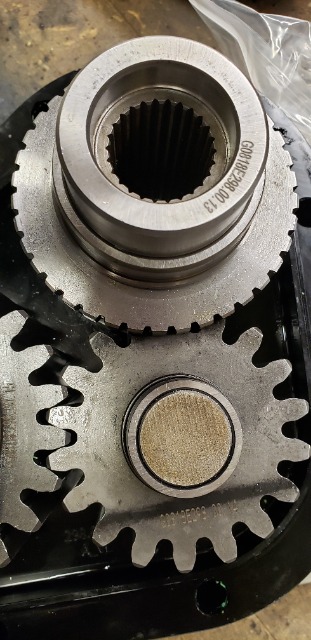

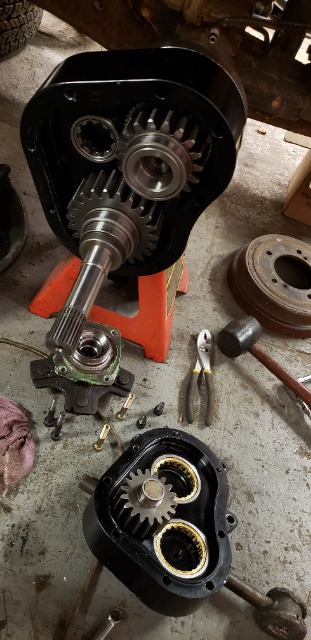

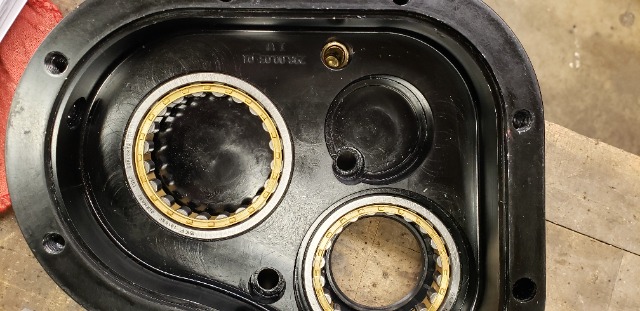

Video of the internals working where you may see the 16% gear reduction.

Don't know how else to embed it so it comes up with a pic.

youtube.com/shorts/1gO0rQ4Mjw0?feature=share

Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Last edit: 20 Apr 2022 02:55 by Rabid Rhino.

Please Log in or Create an account to join the conversation.

More
17 Apr 2022 22:30 - 17 Apr 2022 22:54 #242957 by Rabid Rhino

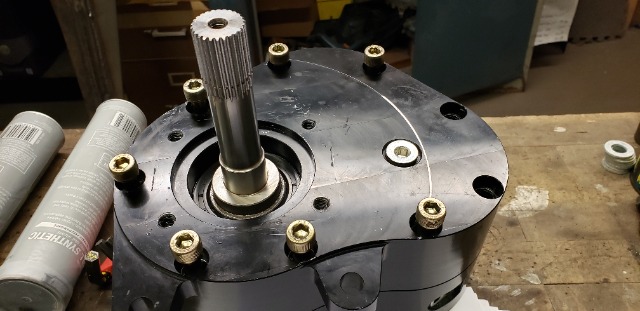

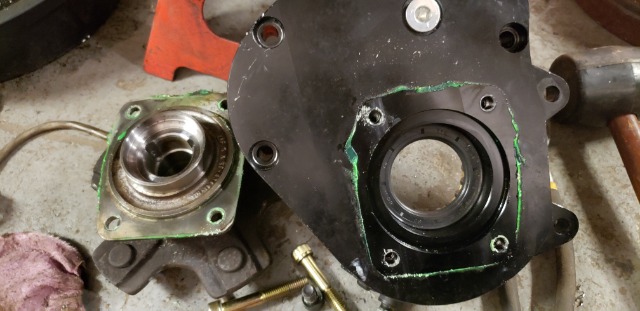

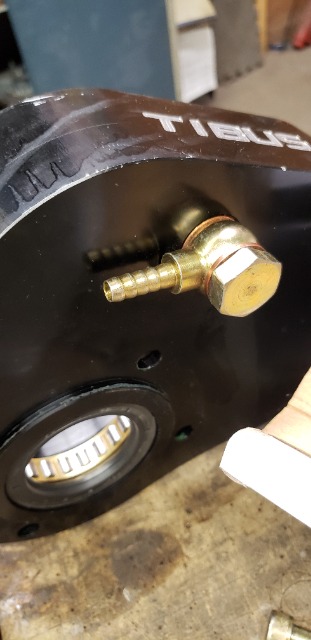

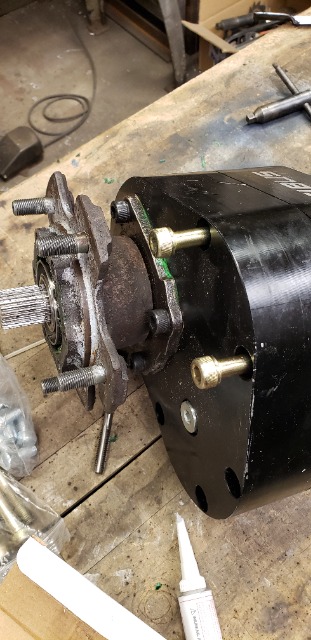

Rear hubs were stripped down to the axle and the 4 bolt holes in the axle flange had to be bored out for bigger bolt to accept an adapter plate & bearing carrier to take the rear face of the portal box.










Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Last edit: 17 Apr 2022 22:54 by Rabid Rhino.

Please Log in or Create an account to join the conversation.

More
17 Apr 2022 23:37 - 17 Apr 2022 23:38 #242961 by Rabid Rhino

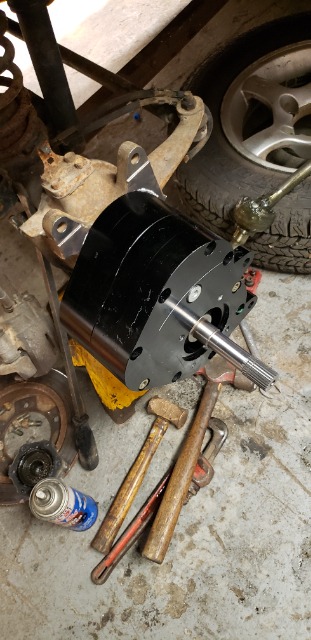

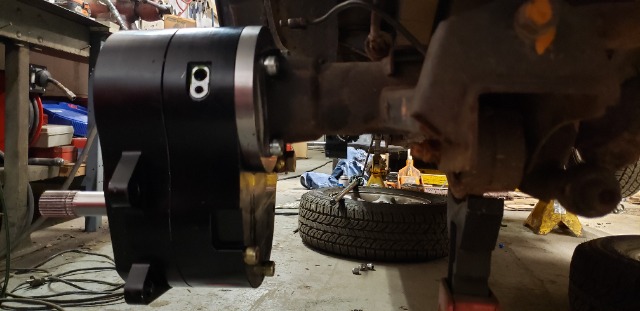

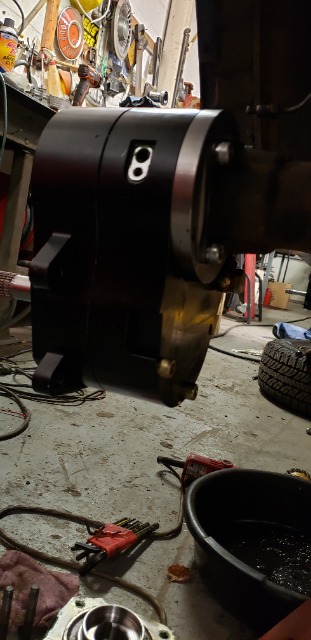

Front axle was pretty much the same as the rear except with extra parts...







lets call this a test fit.

Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Last edit: 17 Apr 2022 23:38 by Rabid Rhino.

Please Log in or Create an account to join the conversation.

More
17 Apr 2022 23:39 #242962 by Rabid Rhino

Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.

Please Log in or Create an account to join the conversation.

More
19 Apr 2022 00:16 - 19 Apr 2022 00:26 #242982 by Rabid Rhino

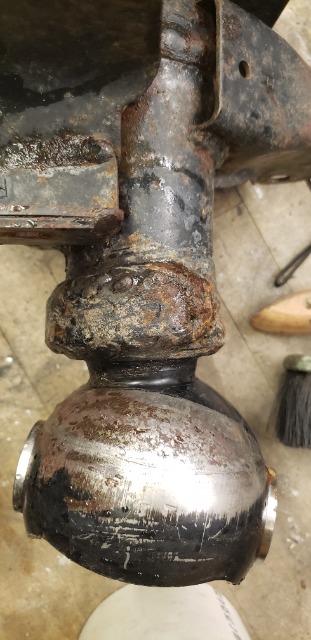

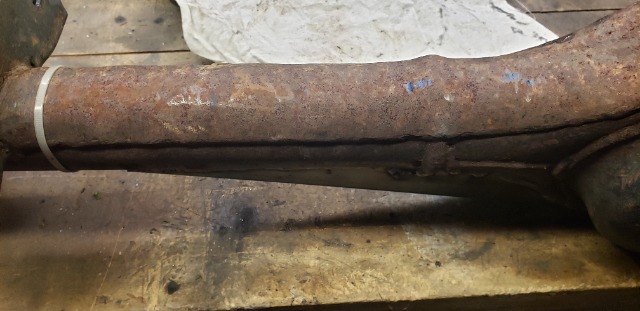

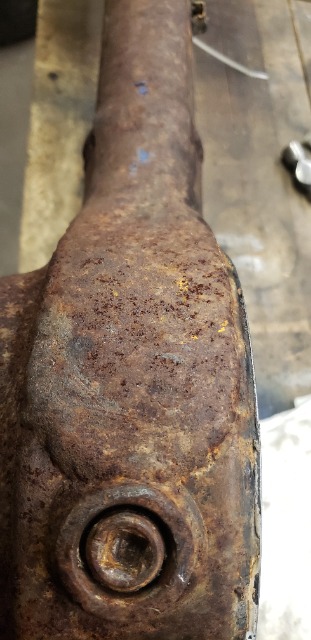

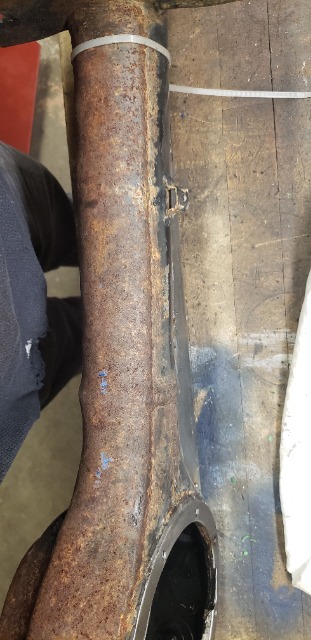

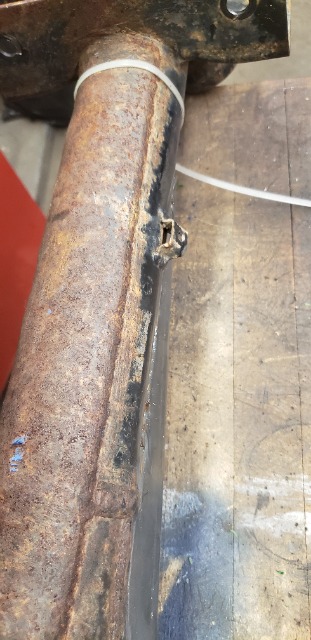

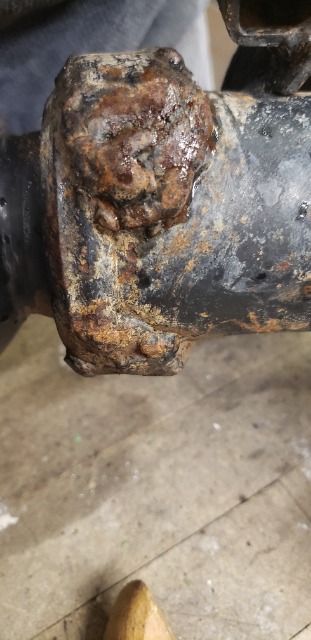

When on the car id seen the front axle had a little protection added to it but on the bench I saw a little more.











What the ?







With this being a Portugese car there's a Portuguese saying which translated is...
Leave the crap alone. The more you touch it ghe more it smells.
So I left these turds alone.

Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Last edit: 19 Apr 2022 00:26 by Rabid Rhino.

Please Log in or Create an account to join the conversation.

More
19 Apr 2022 00:47 #242983 by Rabid Rhino

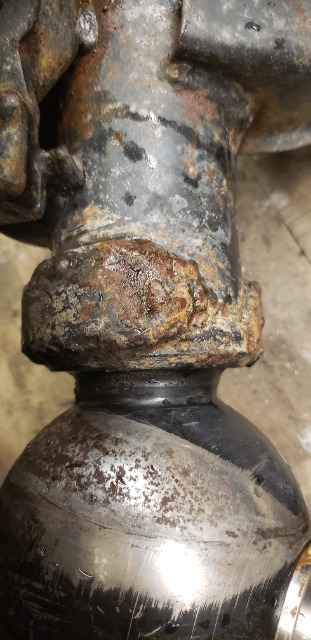

Axle stripped down ir was time for welding then reassembly.

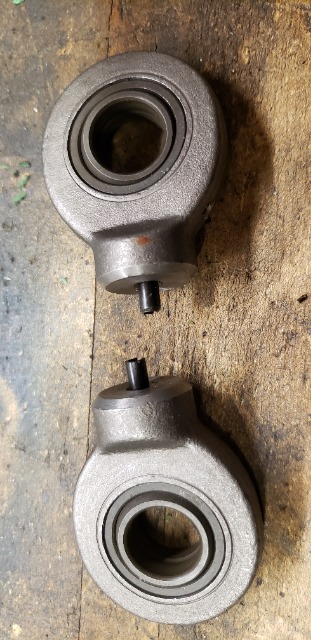

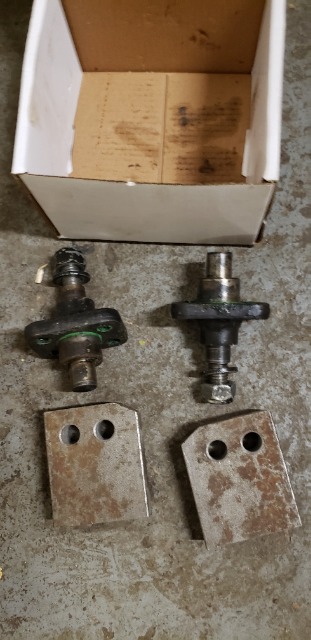

These rod ends fit ontop of the double ended kingpins. Nice bit of welding by Dean to lengthen them.



Eirhervthese where universal brackets or I think Tibus wanted us to mount them tge tenderize of the coil seats & along the trailing arm mounts us



A block that was in the kit (no idea why) was welded to the axle and so the gussets could bolt through it for easy removal & instal





Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.

Please Log in or Create an account to join the conversation.

More
19 Apr 2022 00:50 - 19 Apr 2022 01:01 #242984 by Rabid Rhino

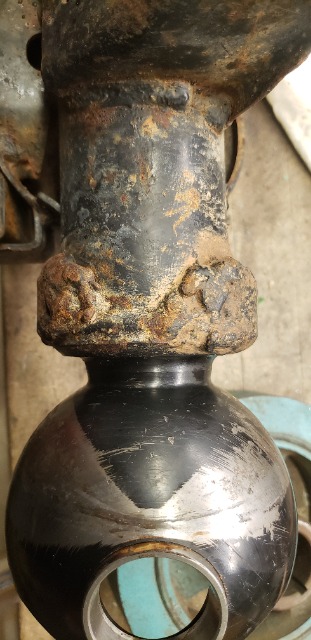

Axle stripped down ir was time for welding then reassembly.

These rod ends fit ontop of the double ended kingpins. Nice bit of welding by Dean to lengthen them.



Eirhervthese where universal brackets or I think Tibus wanted us to mount them tge tenderize of the coil seats & along the trailing arm mounts us



A block that was in the kit (no idea why) was welded to the axle and so the gussets could bolt through it for easy removal & instal

All jigged up.


This one sounds have gone near the top.

Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
Last edit: 19 Apr 2022 01:01 by Rabid Rhino.

Please Log in or Create an account to join the conversation.

More
19 Apr 2022 00:56 #242985 by Rabid Rhino

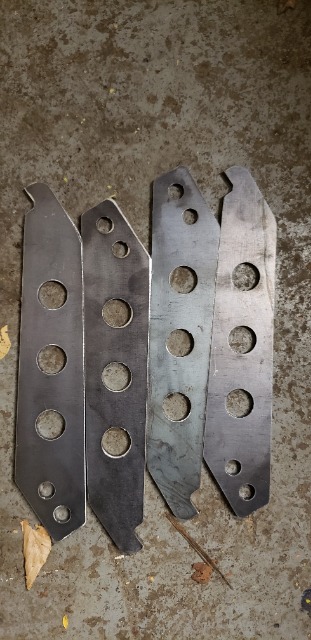

These pics should finish off the King Pin Knuckle Gussets.








Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.

Please Log in or Create an account to join the conversation.

More
19 Apr 2022 01:12 #242986 by Rabid Rhino
Me dreaming of extra trusting.
I lost it for a while & just found it. I may put it on the rear axle.










Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.

Please Log in or Create an account to join the conversation.

More
19 Apr 2022 01:23 #242987 by Rabid Rhino

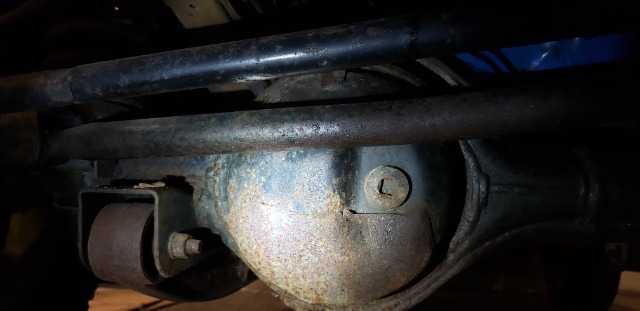

Rear axle gussets weren't as complicated.
they were welded onto the axle to bolt onto the rear face of the portal.






Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.

Please Log in or Create an account to join the conversation.

More
19 Apr 2022 01:41 #242988 by Rabid Rhino
Time to get this buttoned up.
it had been all go... now time to make it stop

Brembo.... sporty. No idea what the rear calipers are.




Kit came with ABS sensors which are no use on mine.

.
This was the most painful part of the build.


Cutting of perftly good  pieces & binning them



Looking for a nice clean and straight LHD Jimny..... Not any more.
Got one that seems to have been magnatized and driven through the "Big Jimny Bits" parts stores too quickly so it missed a few items.
The following user(s) said Thank You: Soeley
