30 Sep 2021 19:24 - 30 Sep 2021 19:52 #239011 by Baloo
Replied by Baloo on topic lightweight buggy

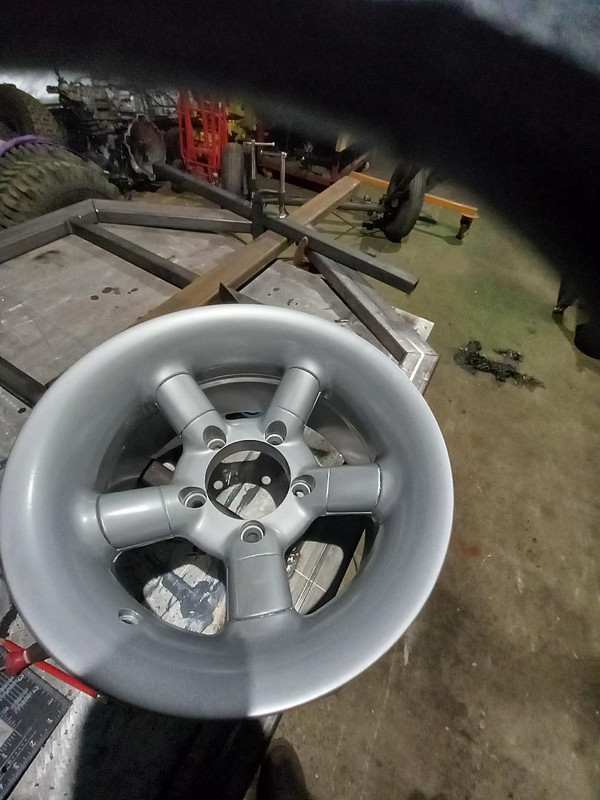

over the last year i have managed to pick 2 of these wheels up, i had them blasted and coated while i had the others done,

[img


now  i already have 4 with tyres on  but wanted 2 more for a future project

[img


i like them because the grey/green spokes unbolt so you can powder coat them a different colour

[img


but i couldent undo the cap screws so i brush painted them anyway

why do i want 6 ?
Last edit: 30 Sep 2021 19:52 by Baloo.

Please Log in or Create an account to join the conversation.

  • Baloo
  • Topic Author
  • Visitor
  • Visitor
    Public
30 Sep 2021 19:26 - 30 Sep 2021 19:26 #239012 by Baloo
Replied by Baloo on topic lightweight buggy

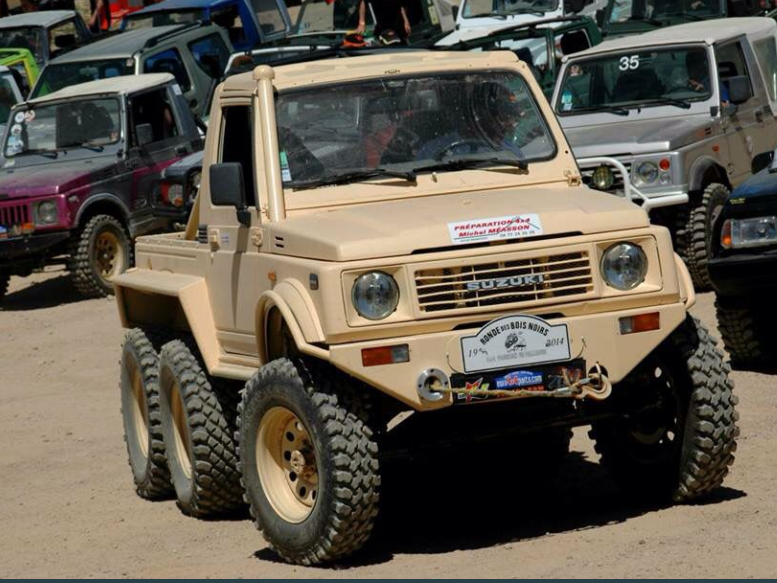

because i fancy a 6 wheel drive jimny
[img


just need a gen 4 to chop up then !!!
Last edit: 30 Sep 2021 19:26 by Baloo.

Please Log in or Create an account to join the conversation.

  • Baloo
  • Topic Author
  • Visitor
  • Visitor
    Public
30 Sep 2021 19:27 #239013 by Baloo
Replied by Baloo on topic lightweight buggy
any one want to discus how you get drive to the rear most axle  ?

Please Log in or Create an account to join the conversation.

  • Baloo
  • Topic Author
  • Visitor
  • Visitor
    Public
30 Sep 2021 19:29 #239014 by Baloo
Replied by Baloo on topic lightweight buggy
and a picture for Les

[img


but 3 are as much use as t!ts on a nun i guess

Please Log in or Create an account to join the conversation.

  • Dirtbird
  • Visitor
  • Visitor
    Public
30 Sep 2021 21:42 #239021 by Dirtbird
Replied by Dirtbird on topic lightweight buggy
ok, all I can see is baby oil and power tools, what am I missing?

Please Log in or Create an account to join the conversation.

  • Lambert
  • Offline
  • Moderator
  • Moderator
    Registered
  • The quickest Jimny in Harrogate...(that I own)
More
01 Oct 2021 05:26 #239026 by Lambert
Replied by Lambert on topic lightweight buggy

any one want to discus how you get drive to the rear most axle  ?


Probably going to be easiest to use a drop box on the top of the axle to the diff and then send the propshaft over the top of the centre axle, having a drive through centre axle diff would leave virtually no space for the diff nose of the rear axle.

Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!

Please Log in or Create an account to join the conversation.

  • Baloo
  • Topic Author
  • Visitor
  • Visitor
    Public
01 Oct 2021 07:27 #239030 by Baloo
Replied by Baloo on topic lightweight buggy
Hi
  well my first thought was making a drive through axle by mounting another diff on the back of the first rear axle like they used to back in the day
[img


space was my concern also but effectively  if you use 31" tyres then youve got around 31" of space from axle to axle  so it should be possible ?

hadent really considered a drop box as i guess i would have to make it from scratch

Please Log in or Create an account to join the conversation.

  • Baloo
  • Topic Author
  • Visitor
  • Visitor
    Public
01 Oct 2021 07:33 #239031 by Baloo
Replied by Baloo on topic lightweight buggy
then i found myself looking at a vitara gearbox that was on the workshop floor
[img


looking at the front output shaft down low  i would imagine it would be possible to machine the housing of the back end and make a new double ended shaft so that you had a flange facing forward and backwards driving the front and middle axle and then use the original rear out put in the centre top position  to drive the rearmost axle,  it maybe an idea to flip the last axle upside down so the diff was on the passenger side  to help with propshaft clearences     does that make sense ??


Please Log in or Create an account to join the conversation.

  • Baloo
  • Topic Author
  • Visitor
  • Visitor
    Public
01 Oct 2021 07:36 #239032 by Baloo
Replied by Baloo on topic lightweight buggy
and then i moved onto the twin side by side transfer box idea  which i think offers most merit
will have to draw that i dont think i can explain it lol


Please Log in or Create an account to join the conversation.

  • Baloo
  • Topic Author
  • Visitor
  • Visitor
    Public
01 Oct 2021 07:45 #239036 by Baloo
Replied by Baloo on topic lightweight buggy

ok, all I can see is baby oil and power tools, what am I missing?

is that baby oil    will check when im at the workshop later today



Please Log in or Create an account to join the conversation.

More
02 Oct 2021 09:51 #239065 by LesNewell
Replied by LesNewell on topic lightweight buggy

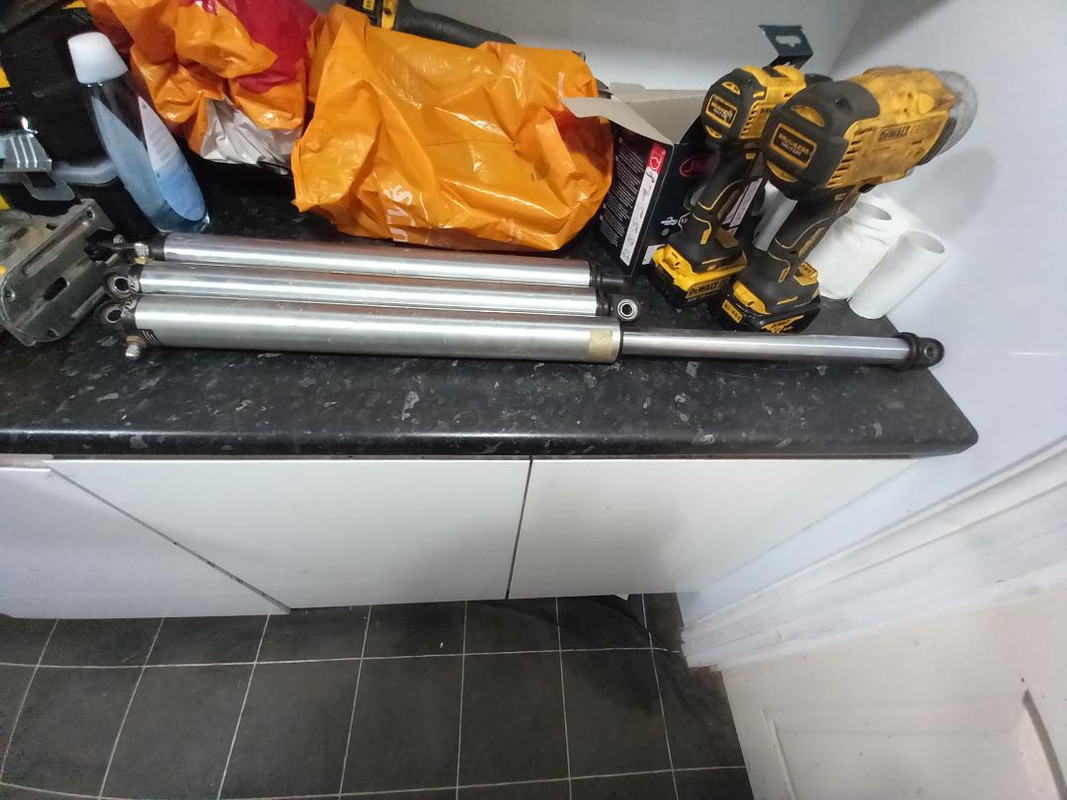

Lots of progress there. I'm sure you'll find a use for those gas shocks. A 3 wheeler maybe? Or you just one side of a 6 wheeler
As far as the baby oil, power tools and tissues are concerned ... Yeah, not going there

The Vit gearbox sounds pretty plausible for 6x6 but you'd have to be careful to unlock the front hubs on the road. If not you'd end up with horrible transmission wind up. I quite like the drive through diff idea but lining up the pinion on that second carrier must be a complete nightmare. The old Fiat Panda 4x4 used a similar setup to get drive for the back axle.  The gearbox is basically a  conventional transverse front wheel drive box with an added crown wheel on the diff driving a pinion and a dog clutch to select 4x4.

Please Log in or Create an account to join the conversation.

  • Dirtbird
  • Visitor
  • Visitor
    Public
02 Oct 2021 10:49 #239072 by Dirtbird
Replied by Dirtbird on topic lightweight buggy
Les just a thought if you google 6x6 Land Rover Perentie you'll find some videos showing how Land Rover gets the drive to both axels. Just a thought.
and this guy
gives a good idea of how you could set up the springs.

Please Log in or Create an account to join the conversation.
