Jimny Trayback
07 Apr 2019 11:24 #205640
by Keithy
Replied by Keithy on topic Jimny Trayback

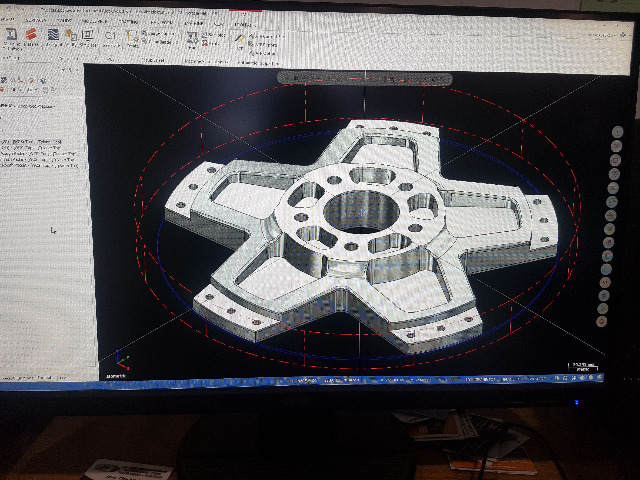

Mastercam model.
Please Log in or Create an account to join the conversation.
21 Apr 2019 15:35 #206455
by Keithy
Replied by Keithy on topic Jimny Trayback
Taper tube made.....I can start building the engine now......after I tidy up the workshop.
Please Log in or Create an account to join the conversation.
21 Apr 2019 17:07 #206457
by Riccy
J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp
Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...
www.youtube.com/user/riclemus
Replied by Riccy on topic Jimny Trayback
Please excuse my ignorance, but what is that and what is it for? :laugh:
Not being that familiar with tuned engine builds and all
Not being that familiar with tuned engine builds and all
J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp
Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...
www.youtube.com/user/riclemus
Please Log in or Create an account to join the conversation.
- jackonlyjack
-
- Offline
- Platinum Member
-
Registered
22 Apr 2019 08:43 #206462
by Keithy
Mine is 78.5mm and nobody makes one.
Jack gets ebeer and brownie points!
Replied by Keithy on topic Jimny Trayback
It's a billet piston which is quite oval and with a teflon coating....standard type ring compressors scratch the skirt......so the better way is to use a tapered guide for installing.Riccy wrote: Please excuse my ignorance, but what is that and what is it for? :laugh:
Not being that familiar with tuned engine builds and all
Mine is 78.5mm and nobody makes one.
Jack gets ebeer and brownie points!
Please Log in or Create an account to join the conversation.
30 May 2019 18:46 #209269
by Keithy
Replied by Keithy on topic Jimny Trayback
Finally started to put the engine together.
Checked the fit on the trigger wheel...all ok so far.
Drew both the bell-housings up ie Jimny and the Lexus....overlapped them in software....only 2 bolts are in conflict....happy with that.
A spot of drill tap and weld-drill should sort that.
Couple of things to think about....oil pump etc......then on to mount the Supercharger and the Turbo.
Checked the fit on the trigger wheel...all ok so far.
Drew both the bell-housings up ie Jimny and the Lexus....overlapped them in software....only 2 bolts are in conflict....happy with that.
A spot of drill tap and weld-drill should sort that.
Couple of things to think about....oil pump etc......then on to mount the Supercharger and the Turbo.
Please Log in or Create an account to join the conversation.
- Daniel30
- Visitor
-
Public
30 May 2019 18:53 #209270
by Daniel30
Replied by Daniel30 on topic Jimny Trayback
Very clever Keithy I wouldn't know were to start with that lot
shiny too, looking forward to seeing it in the jim
shiny too, looking forward to seeing it in the jim Please Log in or Create an account to join the conversation.
31 May 2019 19:30 #209337
by Riccy
J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp
Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...
www.youtube.com/user/riclemus
Replied by Riccy on topic Jimny Trayback
Tis a work of art
J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp
Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...
www.youtube.com/user/riclemus
Please Log in or Create an account to join the conversation.
02 Jun 2019 16:25 #209480
by Keithy
Replied by Keithy on topic Jimny Trayback
Got the ancillaries test fitted.....chuffed to get the Swift air con compressor to fit....what I save I can spend on the turbo manifold parts.
The Jenvey manifold allows me some extra space on the cold side to fit the Supercharger...happy days....it looks like it'll fit!
The Jenvey manifold allows me some extra space on the cold side to fit the Supercharger...happy days....it looks like it'll fit!
Please Log in or Create an account to join the conversation.
