Fuel line fittings for fuel tank
02 Nov 2023 20:07 #251925
by hJohn
Replied by hJohn on topic Fuel line fittings for fuel tank
Been a while since I disassembled everything and I can't remember how it's supposed to go back together.Does anyone know how it's supposed to be connected?

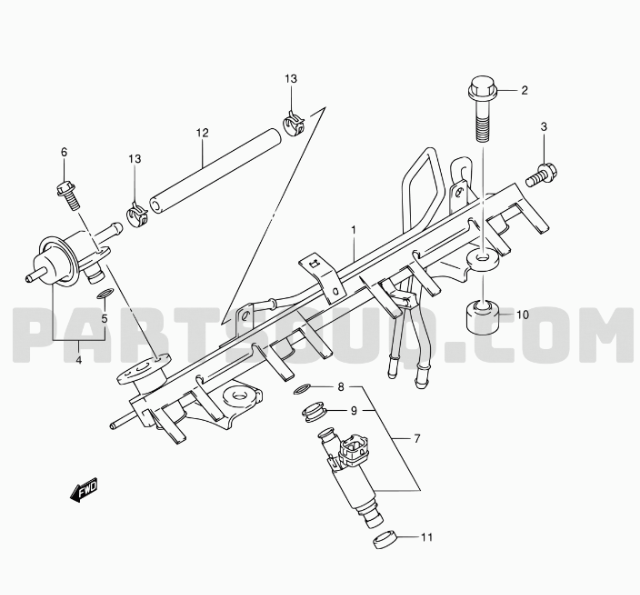

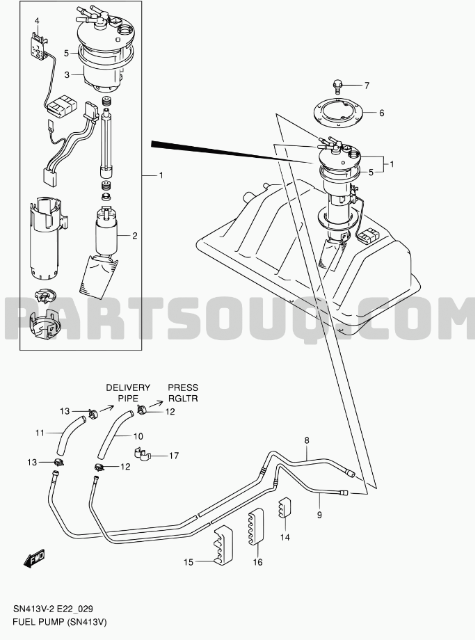

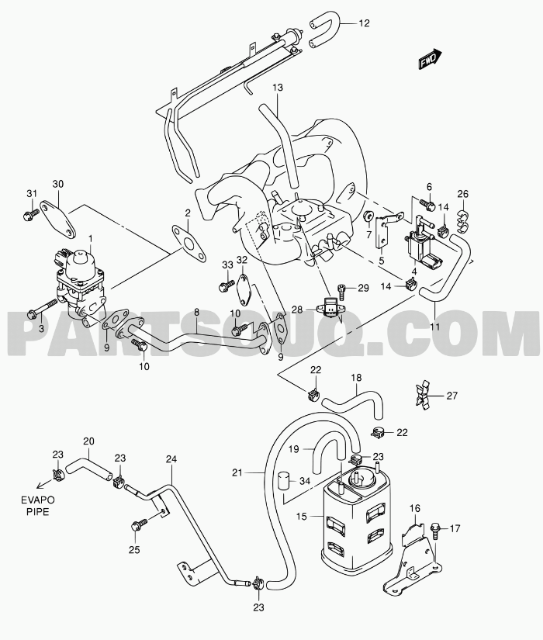

I assume the unlabeled pipe from the fuel pump goes to "EVAPO PIPE", as for the other two which goes on the bigger pipe on the injector rail? "DELIVERY PIPE" or "PRESS RGLTR"
I assume the unlabeled pipe from the fuel pump goes to "EVAPO PIPE", as for the other two which goes on the bigger pipe on the injector rail? "DELIVERY PIPE" or "PRESS RGLTR"
Please Log in or Create an account to join the conversation.
04 Nov 2023 07:07 #251943
by facade
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
Replied by facade on topic Fuel line fittings for fuel tank
The largest diameter is the pressure feed (delivery ) from the pump. It goes to the open end of the fuel rail.
The thinnest pipe (I think- or are there 2 thin ones?) is the vent and goes to the evap canister to trap the fumes.
The thinner than delivery is the return pipe and goes to the outlet of the regulator.
The Plan is that any surplus fuel is leaked off by the regulator (and comes out of it) to maintain pressure in the rail.
I'd imagine that the return pipe goes down into the fuel for silencing, whereas the vent is in fresh air right at the top of the tank, so if you blow into the return spigot you will hear bubbles
The thinnest pipe (I think- or are there 2 thin ones?) is the vent and goes to the evap canister to trap the fumes.
The thinner than delivery is the return pipe and goes to the outlet of the regulator.
The Plan is that any surplus fuel is leaked off by the regulator (and comes out of it) to maintain pressure in the rail.
I'd imagine that the return pipe goes down into the fuel for silencing, whereas the vent is in fresh air right at the top of the tank, so if you blow into the return spigot you will hear bubbles
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
Please Log in or Create an account to join the conversation.
07 Nov 2023 14:00 #252014
by facade
If you haven't connected the return pipe, where does it go?
If it is blanked at the regulator then the regulator won't work as it can't bleed off pressure and the rail will be at the pump's maximum pressure.
Or do you mean that you actually connected all 3 pipes, taking the return from the regulator to the one that they didn't connect in the video?
That is how it should work.
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
Replied by facade on topic Fuel line fittings for fuel tank
Not with only 2 lines connected it won't...In this video they showed two of the lines connected so I just copied that, now everything works as it should.
If you haven't connected the return pipe, where does it go?
If it is blanked at the regulator then the regulator won't work as it can't bleed off pressure and the rail will be at the pump's maximum pressure.
Or do you mean that you actually connected all 3 pipes, taking the return from the regulator to the one that they didn't connect in the video?
That is how it should work.
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
