How to fit a 2"or 3 spring lift.+Wiring spotlights
- GuardianAngel
- Visitor
-
Public
04 Nov 2013 14:33 #89319
by GuardianAngel
Replied by GuardianAngel on topic How to fit a 2"or 3 spring lift.+Wiring spotlights
Thanks for the info everyone
Please Log in or Create an account to join the conversation.
- Tommo
- Visitor
-
Public
- Dean1994
- Visitor
-
Public
- Dean1994
- Visitor
-
Public
- Lukeavb
- Visitor
-
Public
23 Aug 2014 18:05 #122606
by Lukeavb
Replied by Lukeavb on topic How to fit a 2"or 3 spring lift.+Wiring spotlights
Will I need new bolts for my 3" or can I re use the old ones
where can I get new bolts if I will need new bolts?
where can I get new bolts if I will need new bolts? Please Log in or Create an account to join the conversation.
- Tommy-Boy
- Visitor
-
Public
30 Mar 2016 17:43 - 30 Mar 2016 17:46 #164655
by Tommy-Boy
Replied by Tommy-Boy on topic spring lift.+Wiring spotlights
Hi Guys
could someone clarify that i'm understanding this correctly in regards to wiring a light bar onto my little Jimny
This is my understanding of the relay diagram as posted in this post from dirtydogz
www.bigjimny.com/index.php/forum?view=topic&catid=7&id=45978
I'm just not 100% that i am understanding the diagram correctly.

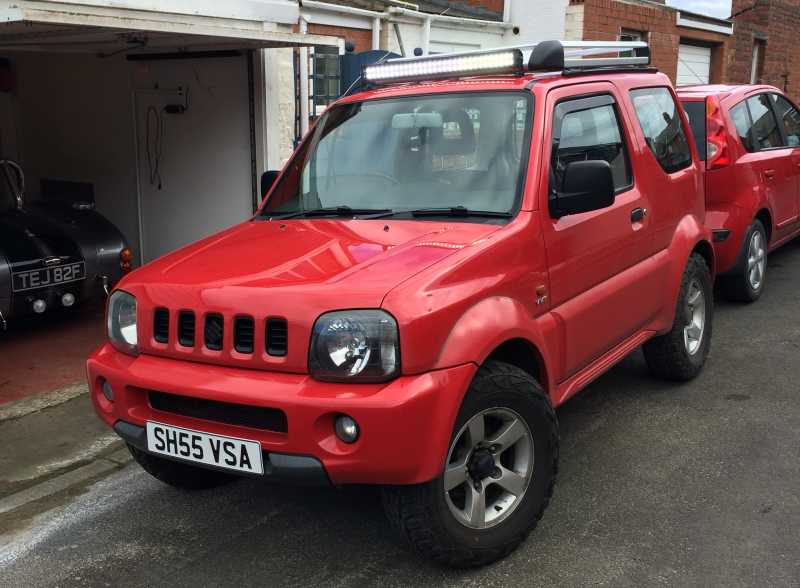

However the light bar is fitted and when hooked up to my jumper pack it burns your flippin eyes out!! LOL
could someone clarify that i'm understanding this correctly in regards to wiring a light bar onto my little Jimny
- Negative (-) wire from the light bar to a sutibale earth point
- Pos (+) wire from the light bar to pin 87 on the relay
- Pin 85 on relay to "Acc" on the switch
- Pin 30 direct to the battery Pos (+) through a sutible fuse (15Amp)
- Pin 86 daisy chain to pin 30 with a second bridge wire to the negative (-) switch terminal, even though this is live (+) ?
- Pos (+) from the switch to the red wire on the headlight plug
This is my understanding of the relay diagram as posted in this post from dirtydogz
www.bigjimny.com/index.php/forum?view=topic&catid=7&id=45978
I'm just not 100% that i am understanding the diagram correctly.
However the light bar is fitted and when hooked up to my jumper pack it burns your flippin eyes out!! LOL
Last edit: 30 Mar 2016 17:46 by Tommy-Boy. Reason: cant spell for shit
