How to fit a 2"or 3 spring lift.+Wiring spotlights

Please Log in or Create an account to join the conversation.

Replied by dirtydogz on topic Fitting a 2"or 3" spring lift.+ Wiring spot lights

Jimnybits 2"lift £336 +rear shock repos £30 + correction bushes £106.80.
www.jimnybits.co.uk/shop/jimny/suspension/cat_171.html

---

2002 JLX Soft Top
Jimnybits 2" lift +Pro Comp ES1000 shocks. Big Jimny rear shock mounts. Big Jimny adjustable panhard rods.
Big Jimny steering damper bracket. Disco Armstrong steering damper. 7X15 black modulars. 205/75/15 Maxxis 743 bravo m/t.Superpro camber correction bushes.Black A bar....

Please Log in or Create an account to join the conversation.

Please Log in or Create an account to join the conversation.

Please Log in or Create an account to join the conversation.

Replied by dirtydogz on topic How to fit a 2"or 3 spring lift.+Wiring spotlights

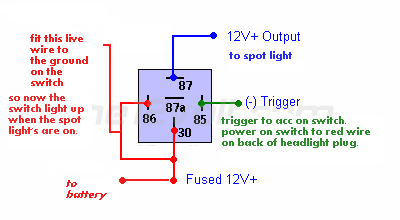

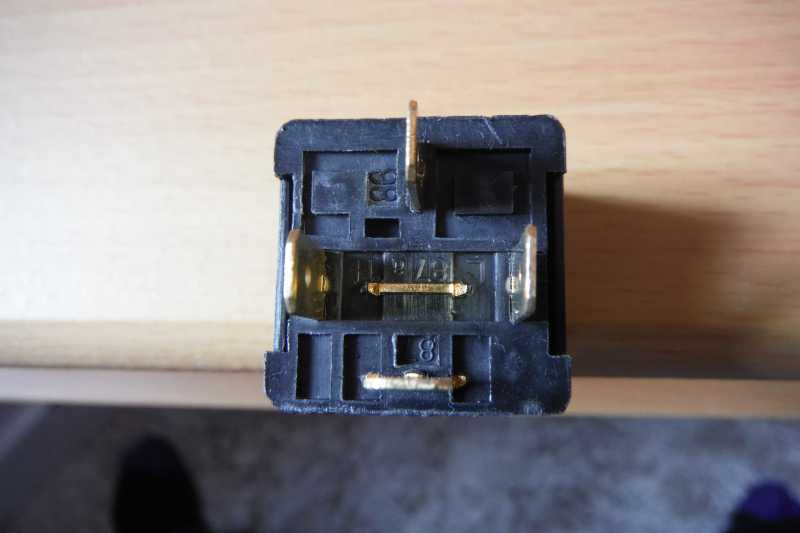

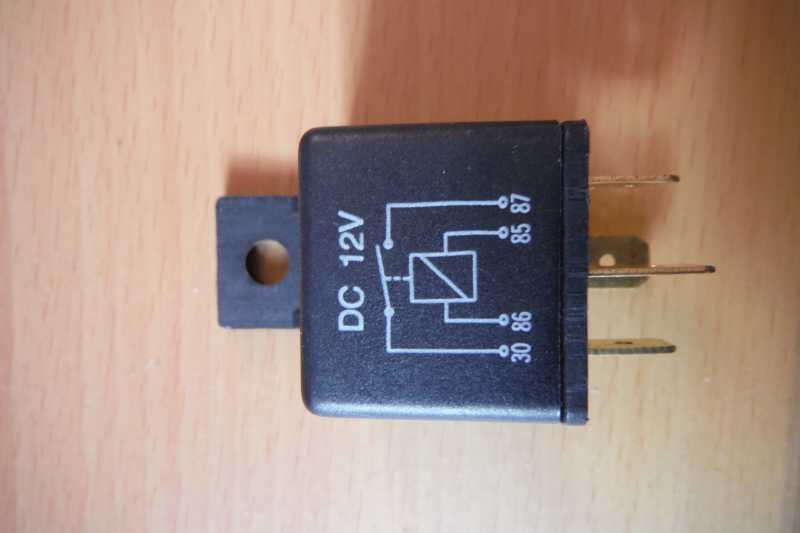

Sorry Guardian Angel I know it's a bit late, but as Jimnyash said, yes it is a wiring diagram of a relay.
If you buy a set of the ring spot light you will get a 4 pin relay and fitting kit in the box.
www.halfords.com/webapp/wcs/stores/servl...-1_categoryId_272451

---

2002 JLX Soft Top
Jimnybits 2" lift +Pro Comp ES1000 shocks. Big Jimny rear shock mounts. Big Jimny adjustable panhard rods.
Big Jimny steering damper bracket. Disco Armstrong steering damper. 7X15 black modulars. 205/75/15 Maxxis 743 bravo m/t.Superpro camber correction bushes.Black A bar....

Please Log in or Create an account to join the conversation.

Please Log in or Create an account to join the conversation.

Replied by GuardianAngel on topic How to fit a 2"or 3 spring lift.+Wiring spotlights

Thanks for the info everyone

Please Log in or Create an account to join the conversation.

Please Log in or Create an account to join the conversation.

Please Log in or Create an account to join the conversation.

Please Log in or Create an account to join the conversation.

Replied by Lukeavb on topic How to fit a 2"or 3 spring lift.+Wiring spotlights

Will I need new bolts for my 3" or can I re use the old ones where can I get new bolts if I will need new bolts?

Please Log in or Create an account to join the conversation.

Replied by Tommy-Boy on topic spring lift.+Wiring spotlights

Hi Guys

could someone clarify that i'm understanding this correctly in regards to wiring a light bar onto my little Jimny

1. Negative (-) wire from the light bar to a sutibale earth point
2. Pos (+) wire from the light bar to pin 87 on the relay
3. Pin 85 on relay to "Acc" on the switch
4. Pin 30 direct to the battery Pos (+) through a sutible fuse (15Amp)
5. Pin 86 daisy chain to pin 30 with a second bridge wire to the negative (-) switch terminal, even though this is live (+) ?
6. Pos (+) from the switch to the red wire on the headlight plug

This is my understanding of the relay diagram as posted in this post from dirtydogz
www.bigjimny.com/index.php/forum?view=topic&catid=7&id=45978

I'm just not 100% that i am understanding the diagram correctly.

However the light bar is fitted and when hooked up to my jumper pack it burns your flippin eyes out!! LOL
