Turbo M16A Jimny

More
02 Feb 2022 17:31 #241683 by Riccy
Replied by Riccy on topic Turbo M16A Jimny
Sorry, I cant remember that bit. Can you post a picture to help me?

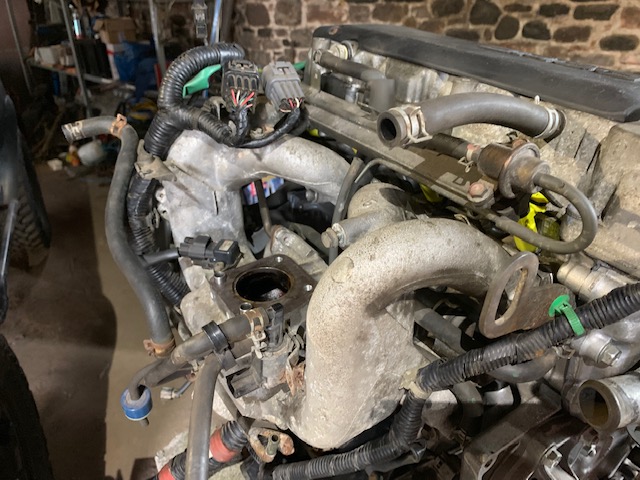

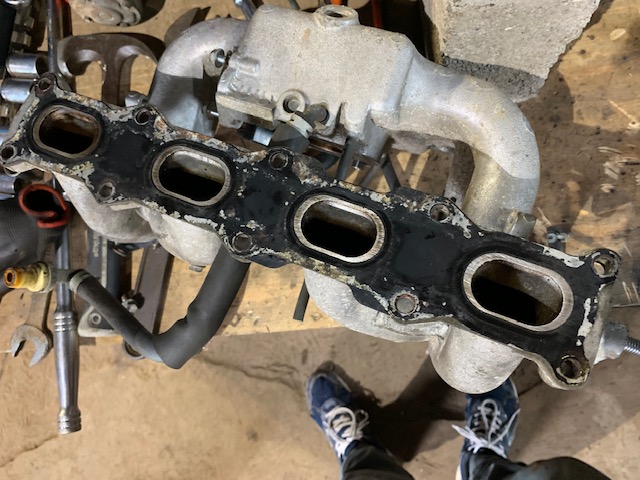

If its any help heres a couple of pics of the manifold off the car...





J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp

Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...

www.youtube.com/user/riclemus

Please Log in or Create an account to join the conversation.

  • Probablynotfrank
  • Visitor
  • Visitor
    Public
04 Feb 2022 23:42 #241704 by Probablynotfrank
Replied by Probablynotfrank on topic Turbo M16A Jimny
Perhaps the 2 coolant lines that are there to prevent icing up inside the throttle body?

Please Log in or Create an account to join the conversation.

More
08 Feb 2022 20:37 #241758 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
Got the old knock sensor off and got the stud on for the new Bosch sensor to slide on. was probably the worst job on the car so far! No room to work and kept dropping tools and bits onto the engine mounts.
Attachments:

Please Log in or Create an account to join the conversation.

More
08 Feb 2022 21:35 #241760 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
good point

Please Log in or Create an account to join the conversation.

More
09 Feb 2022 20:04 #241770 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
Yellow RX8 injectors installed, and brown Liana injectors removed. Knock sensor fitted. Started tweaking the inter cooling pipes and cutting some to size. Ideally I should of got a 120 degree angle bend for the throttle body to meet the intercooler but  it will work. Turbo outlet to intercooler has matched up well.
Attachments:

Please Log in or Create an account to join the conversation.

More
10 Feb 2022 18:18 #241776 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
Plumbed in turbo oil feed and return. Connected all intercooling. Have put a port in for a HKS blow off valve. The intercooler is on a slant which I am not happy with but it’s something I can rectify later on.

Please Log in or Create an account to join the conversation.

More
12 Feb 2022 08:46 #241804 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
Offset air filter added and a few better pictures of the setup in day light. The car is abit tired but I thought I could transfer this all over to a newer Jimny in the future.

Please Log in or Create an account to join the conversation.

More
12 Feb 2022 08:50 #241805 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
Side in picture
Attachments:

Please Log in or Create an account to join the conversation.

More
12 Feb 2022 08:54 - 12 Feb 2022 08:54 #241806 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
Going to cut a label up the 3 connectors for the new ECU most of it will be redundant. Spoke to the auto electrician who is a elderly family friend. I can do most of it myself, he will just check it over at the end
Attachments:
Last edit: 12 Feb 2022 08:54 by Motleycrew.

Please Log in or Create an account to join the conversation.

More
12 Feb 2022 10:02 #241812 by Martin416
Replied by Martin416 on topic Turbo M16A Jimny
Looks like it's all fitting nicely in the bay. You making it so you can unplug the new ecu wiring section incase you need to put a standard one back in?

SJ416 spi, 33s, Cage, Rocklobster

Please Log in or Create an account to join the conversation.

More
12 Feb 2022 16:23 #241823 by Motleycrew
Replied by Motleycrew on topic Turbo M16A Jimny
That wouldn’t be possible to unplug and switch between the two as the new ECU connector will be using the Jimnys existing wiring. You could just take the wires out of the new connector and put them back in the old as I will leave the old connectors in situ. The new connector has 34 pins where as the Jimny has 72 on the three. I won’t be using all 34 pins. I have attached a picture of the Jimny ECU pin out. E17,E18
Attachments:

Please Log in or Create an account to join the conversation.

More
12 Feb 2022 16:37 #241824 by Martin416
Replied by Martin416 on topic Turbo M16A Jimny
Ahh no problem wasnt sure how it came together

SJ416 spi, 33s, Cage, Rocklobster

Please Log in or Create an account to join the conversation.
