26 May 2021 13:39 - 26 May 2021 13:45 #235402
by X8GGY
Replied by X8GGY on topic Dave’s long-term Lil’Bugga Buggy Build
I wasn't doubting you Roger, I was inquisitive...
Indeed, a front diff does look symetrical...

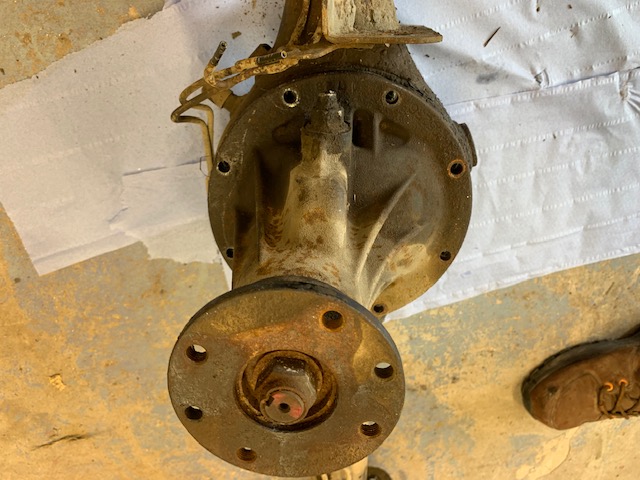

This is the diff installed in the casing the right way round, "high pinnion" (Pinnion at the top)

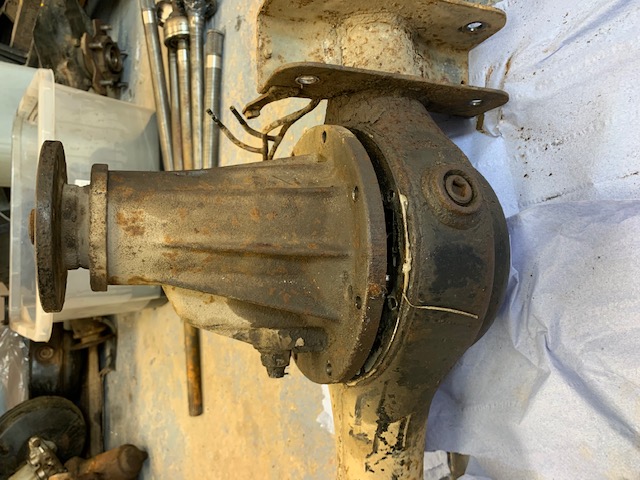

I slotted the axle casing to allow for the clearance for the crown wheel to fit with the diff flipped...
And indeed, it doesn't fit...
As Roger indicated, to flip the diff I'd also have to flip the "front cover"... as it's shaped to suit...
That's probably easier than cutting both axle tubes off the diff pumpkin and flipping the diff with the casing though? As that would mean moving the diff drain plug as well... Hmmm, have to sleep on that one... I do have another front axle casing hanging around the garage though, I could just cut the diff drain plug out of it and graft it in after flipping the whole diff and it's pumpkin... the axle tubes will be re-welded to the pumpkin with braces fitted anyway, so that might be easier than cutting and welding the front cover then? And tidier...

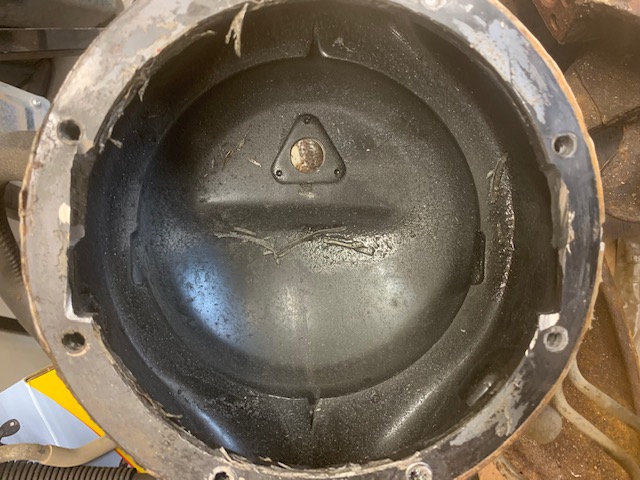

From the inside...
THANKS Roger... food for thought!
Indeed, a front diff does look symetrical...
This is the diff installed in the casing the right way round, "high pinnion" (Pinnion at the top)
I slotted the axle casing to allow for the clearance for the crown wheel to fit with the diff flipped...
And indeed, it doesn't fit...
As Roger indicated, to flip the diff I'd also have to flip the "front cover"... as it's shaped to suit...
That's probably easier than cutting both axle tubes off the diff pumpkin and flipping the diff with the casing though? As that would mean moving the diff drain plug as well... Hmmm, have to sleep on that one... I do have another front axle casing hanging around the garage though, I could just cut the diff drain plug out of it and graft it in after flipping the whole diff and it's pumpkin... the axle tubes will be re-welded to the pumpkin with braces fitted anyway, so that might be easier than cutting and welding the front cover then? And tidier...
From the inside...
THANKS Roger... food for thought!
Last edit: 26 May 2021 13:45 by X8GGY.
Please Log in or Create an account to join the conversation.
- Roger Fairclough
- Offline
- Platinum Member
-
Registered
Less
More
- Posts: 1457
- Thank you received: 210
26 May 2021 14:12 #235403
by Roger Fairclough
Replied by Roger Fairclough on topic Dave’s long-term Lil’Bugga Buggy Build
Fortunately, the stud holes appear to line up.
Roger
Roger
The following user(s) said Thank You: X8GGY
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 1934
- Thank you received: 554
26 May 2021 16:44 #235405
by Riccy
J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp
Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...
www.youtube.com/user/riclemus
Replied by Riccy on topic Dave’s long-term Lil’Bugga Buggy Build
I still think just spinning the diff round wont help the direction it rotates im afraid.
Is it possible to interchange the ring and pinion gears to those of a rear one, which would sort it out and possibly let you keep the high pinion casing?
I would be tempted to just use a rear diff in the front casing you shorten for the back. I know it wont have high pinion, but it will go the right direction and you can still have the rear steering...
Is it possible to interchange the ring and pinion gears to those of a rear one, which would sort it out and possibly let you keep the high pinion casing?
I would be tempted to just use a rear diff in the front casing you shorten for the back. I know it wont have high pinion, but it will go the right direction and you can still have the rear steering...
J999 MNY, ULYSSES M18 VVT with ITB's Dyno tested at 130hp
Pickup/tipper, R7me gearbox & 6.4 Rocklobster, 31" Toyo MT, 2x ARB air locker 3.9 diffs in braced axles, 6" total lift, Floating rear conversion, Raptor painted, CB, Recaro's, Caged, etc, etc...
www.youtube.com/user/riclemus
Please Log in or Create an account to join the conversation.
- Roger Fairclough
- Offline
- Platinum Member
-
Registered
Less
More
- Posts: 1457
- Thank you received: 210
26 May 2021 17:45 #235408
by Roger Fairclough
Replied by Roger Fairclough on topic Dave’s long-term Lil’Bugga Buggy Build
Yes it will.
The pinion remains where it is and the crown wheel changes sides.
If the pinion rotates clockwise and the crown wheel is on it's left the shafts are in reverse. Crown wheel on the right and shafts turn forward.
Roger
The pinion remains where it is and the crown wheel changes sides.
If the pinion rotates clockwise and the crown wheel is on it's left the shafts are in reverse. Crown wheel on the right and shafts turn forward.
Roger
Please Log in or Create an account to join the conversation.
- Baloo
- Visitor
-
Public
26 May 2021 20:09 #235418
by Baloo
During a WhatsApp conversation with Riccy he pointed out that the rear front axle will turn the wrong way... (and try and tear the lil'bugga apart!) I'd thought about if for a while in the shop, weirdly twirling my fingers trying to work out the rotation of the props, etc. and thought it would work! But no worries -
are you sure that is correct ?
if you put your head where the transfer box out put is and look forward the front prop turns anticlockwise to move the vehicle forward ?
now move that diff to the rear and look backwards at it the prop now needs to turn clockwise to move the vehicle forwards ? which is how the props rotate as they leave the transfer box > so by turning the diff through 180 deg to fit in the rear the drive is maintained in the right direction ?
i will need to fiddle with an axle to confirm or deny that lol
Replied by Baloo on topic Dave’s long-term Lil’Bugga Buggy Build
During a WhatsApp conversation with Riccy he pointed out that the rear front axle will turn the wrong way... (and try and tear the lil'bugga apart!) I'd thought about if for a while in the shop, weirdly twirling my fingers trying to work out the rotation of the props, etc. and thought it would work! But no worries -
are you sure that is correct ?
if you put your head where the transfer box out put is and look forward the front prop turns anticlockwise to move the vehicle forward ?
now move that diff to the rear and look backwards at it the prop now needs to turn clockwise to move the vehicle forwards ? which is how the props rotate as they leave the transfer box > so by turning the diff through 180 deg to fit in the rear the drive is maintained in the right direction ?
i will need to fiddle with an axle to confirm or deny that lol
Please Log in or Create an account to join the conversation.
- Baloo
- Visitor
-
Public
26 May 2021 20:16 #235421
by Baloo
Replied by Baloo on topic Dave’s long-term Lil’Bugga Buggy Build
Please Log in or Create an account to join the conversation.
