2004 jimny m13a TDC and crank pulley removal.
24 Feb 2026 12:41 - 24 Feb 2026 12:44 #263878
by Kappy
A progress update.
Managed to remove timing cover.
Struggling to line up dots on cam sprockets as per diagram.
Really appreciate some guidence here.

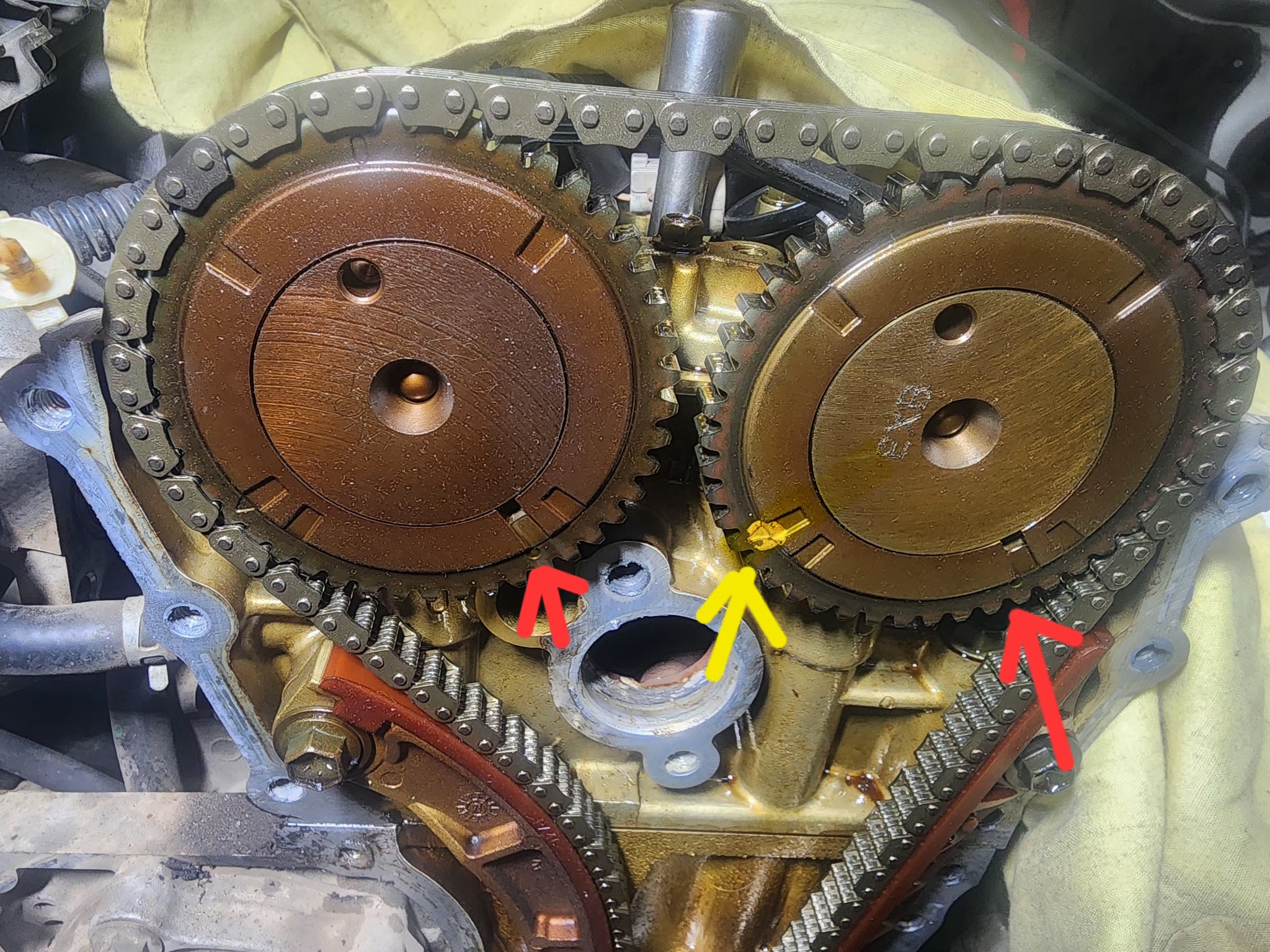

In the attached pic I believe on the compression stroke with crank drift upwards, the red arrows display dots on can sprockets, yellow highlight is painted arrow.
Replied by Kappy on topic 2004 jimny m13a TDC and crank pulley removal.
Managed to remove timing cover.
Struggling to line up dots on cam sprockets as per diagram.
Really appreciate some guidence here.
In the attached pic I believe on the compression stroke with crank drift upwards, the red arrows display dots on can sprockets, yellow highlight is painted arrow.
Last edit: 24 Feb 2026 12:44 by Kappy. Reason: Double attachment
