Rear Fog Lamp Installation - Help Guys 😫
- jackonlyjack
-
- Offline
- Platinum Member
-
Registered
24 Mar 2025 20:58 #259894
by fordem
I don't have 4G manuals so I can't be certain, but this is consistent with how Suzuki has wired headlights on most vehicles I have looked at, they fuse the headlights separately and switch the negative, it's done for safety reasons, a failed fuse won't take out both left & right headlights simultaneously.

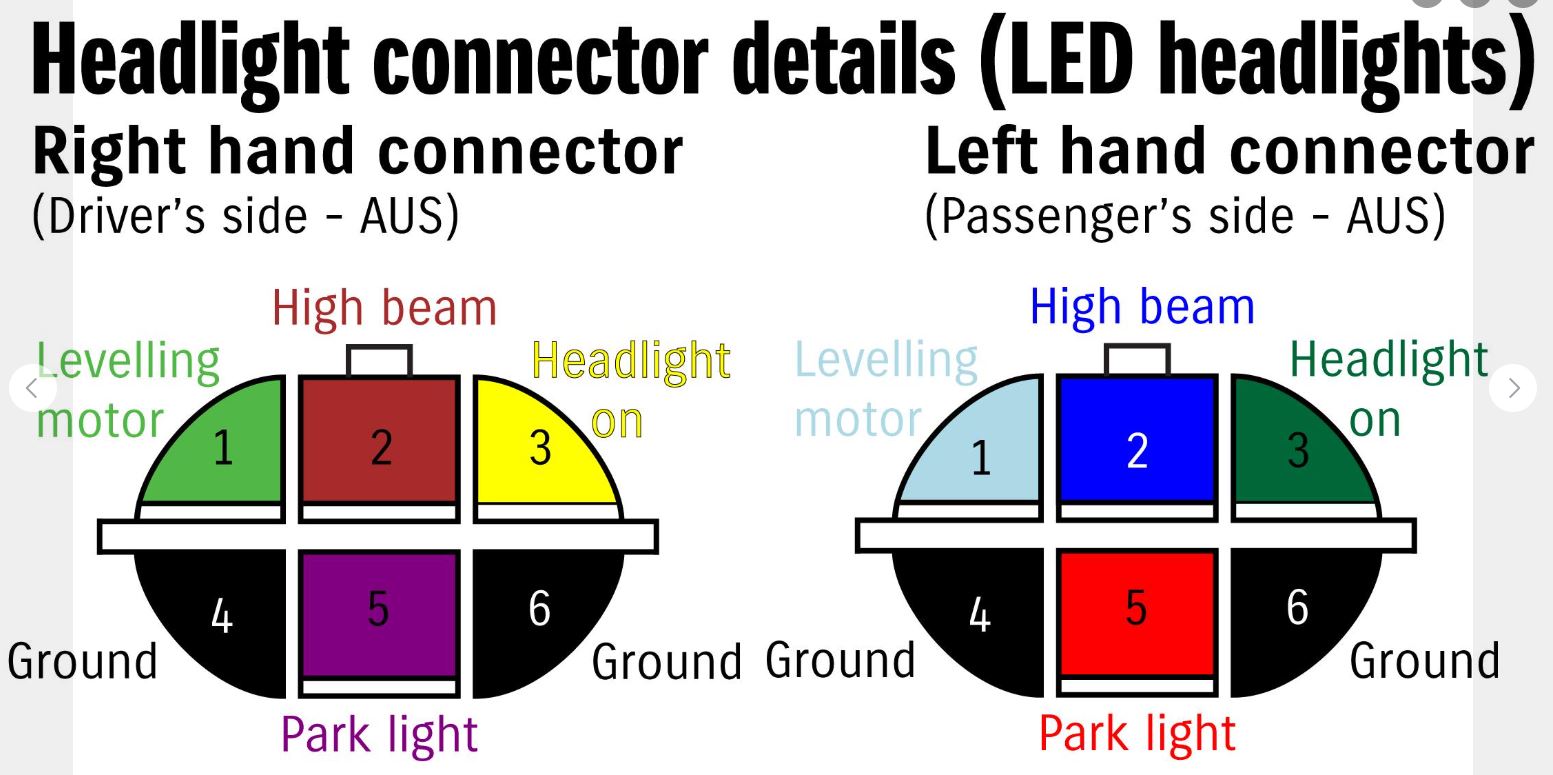

This diagram comes from an Australian facebook group, I've not attempted to confirm anything.
Replied by fordem on topic Rear Fog Lamp Installation - Help Guys 😫
I checked the head light fuses thinking I could just add a circuit to that but the fuses in the engine bay seem to be “live” constantly even with ignition off?
I don't have 4G manuals so I can't be certain, but this is consistent with how Suzuki has wired headlights on most vehicles I have looked at, they fuse the headlights separately and switch the negative, it's done for safety reasons, a failed fuse won't take out both left & right headlights simultaneously.
This diagram comes from an Australian facebook group, I've not attempted to confirm anything.
Please Log in or Create an account to join the conversation.
25 Mar 2025 11:11 - 25 Mar 2025 11:12 #259903
by fordem
Replied by fordem on topic Rear Fog Lamp Installation - Help Guys 😫
Based on what you have told us, it is acceptable for the rear fog light(s) to be switched on when the front fog lights are on, irrespective of the headlights, if the car has front fog lights, those should be positive switched.
Negative switching...
The lamp in the first circuit is positively switched, the lamp in the second circuit is negatively switched
Negative switching...
The lamp in the first circuit is positively switched, the lamp in the second circuit is negatively switched
Last edit: 25 Mar 2025 11:12 by fordem. Reason: add caption.
