Gen4 reverse camera connection
23 Dec 2024 22:44 #258839
by Karlos
Gen4 reverse camera connection was created by Karlos

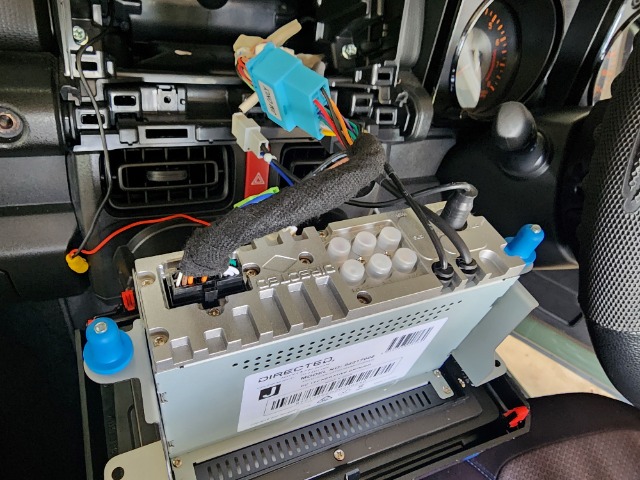

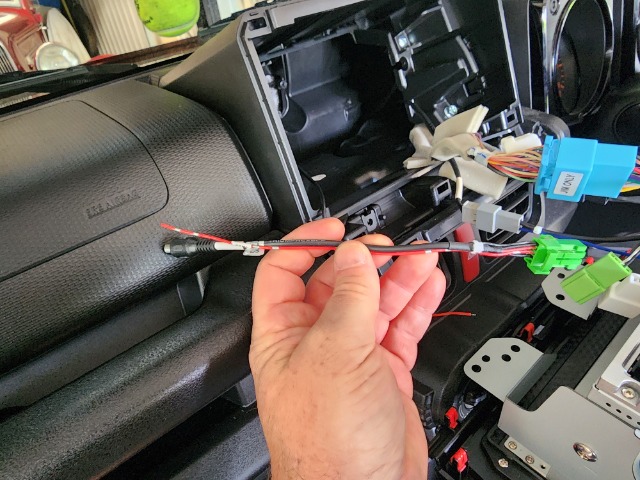

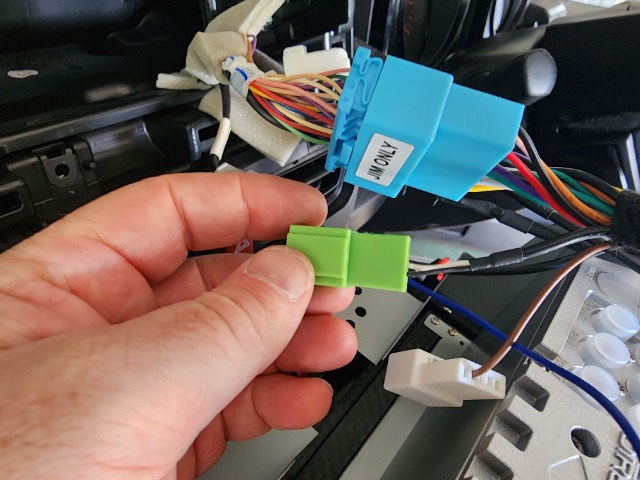

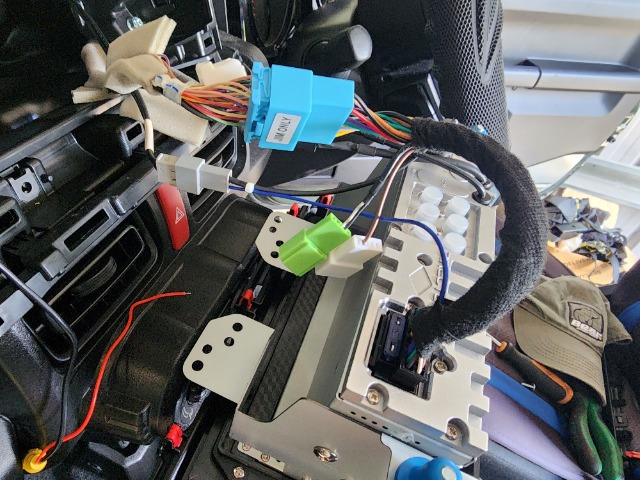

I'm trying to fit an aftermarket reversing camera, however the head unit connection is different to any guide I have been able to find online. In previous models the green plug on the adapter cable plugged directly into the back of the head unit. On this model there is a matching green socket on the harness, but it only has 2 wires, whereas the plug on the adaptor cable has 4 and if I connect the 2 nothing happens in reverse. The head unit does have a video in RCA connection, but again nothing happens if I connect the camera to this. The camera is powered when in reverse.
Any help with how to connect would be greatly appreciated. Thanks.
Any help with how to connect would be greatly appreciated. Thanks.
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 1941
- Thank you received: 503
24 Dec 2024 17:37 - 24 Dec 2024 17:38 #258844
by DrRobin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Replied by DrRobin on topic Gen4 reverse camera connection
My Gen 4 came fitted with the genuine Suzuki reverse camera so I haven't seen it myself, but forum member Soeley fitted one to his Jimny, although he did use a genuine Suzuki camera, see these two threads, they might help
www.bigjimny.com/forum/6-jimny-chat/6478...n-4-reversing-camera
www.bigjimny.com/forum/8-my-jimny/64213-...9-black-sz5?start=48
www.bigjimny.com/forum/8-my-jimny/64213-...9-black-sz5?start=54
The last link shows the rear of the head unit, it is significantly different to yours, I know we use a Bosch SLDA, but yours is stamped 'Directed' and looks like a completely different unit, so any experience we have in the UK might not be valid.
Hopefully someone from your way will jump in with the info you need.
Robin
www.bigjimny.com/forum/6-jimny-chat/6478...n-4-reversing-camera
www.bigjimny.com/forum/8-my-jimny/64213-...9-black-sz5?start=48
www.bigjimny.com/forum/8-my-jimny/64213-...9-black-sz5?start=54
The last link shows the rear of the head unit, it is significantly different to yours, I know we use a Bosch SLDA, but yours is stamped 'Directed' and looks like a completely different unit, so any experience we have in the UK might not be valid.
Hopefully someone from your way will jump in with the info you need.
Robin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Last edit: 24 Dec 2024 17:38 by DrRobin.
Please Log in or Create an account to join the conversation.
24 Dec 2024 18:36 #258847
by Motacilla
That's in the UK/European markets, with the Bosch head unit. If it is the same in Oz with the Directed head unit, that could be your problem.
Replied by Motacilla on topic Gen4 reverse camera connection
As noted on pg 2 in this thread DrRobin linked to, the Gen4's head unit camera circuit is not compatible with standard aftermarket cameras.www.bigjimny.com/forum/6-jimny-chat/6478...n-4-reversing-camera
That's in the UK/European markets, with the Bosch head unit. If it is the same in Oz with the Directed head unit, that could be your problem.
