Quick crankshaft pulley question


Cant make miracles happen, but it is very good.

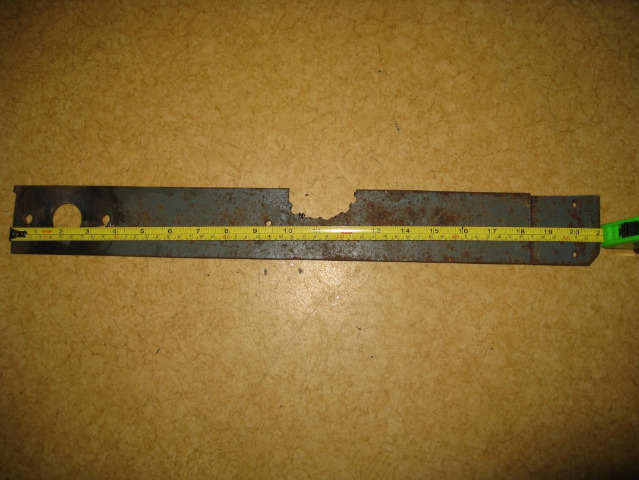

I made a special tool similar to the one Facade made, you can see it in action here.

www.bigjimny.com/index.php/forum/6-jimny...ust-fell-off?start=0

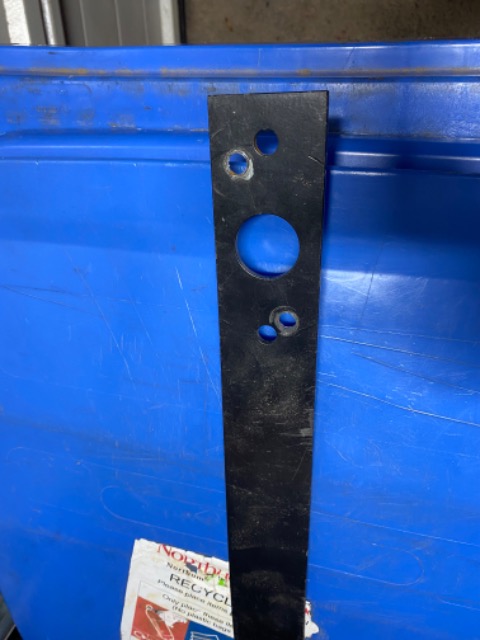

The tool is about 400mm long, made from 4mm sheet steel and was an old antenna bracket I designed for work.



When I first loosened the bolt I had to use a longer breaker bar, 1m long but the bolt came out.

Robin

Rogerzilla wrote:

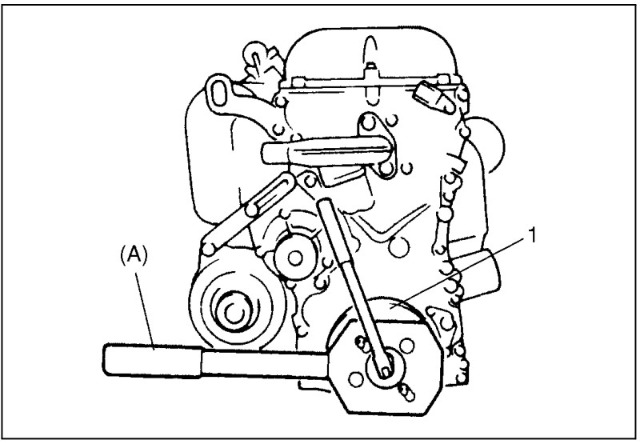

That was my idea (let the garage worry about it) but the last two garages that have worked on it have been hopeless, leaving it with slipping belts and coolant leaks, and it's hard to find a proper mechanic.  I don't think many have the nous to work around a problem if they don't have a special tool.  The Suzuki tool, which has dogs to engage the four pulley slots, seems to be unobtainium anyway.

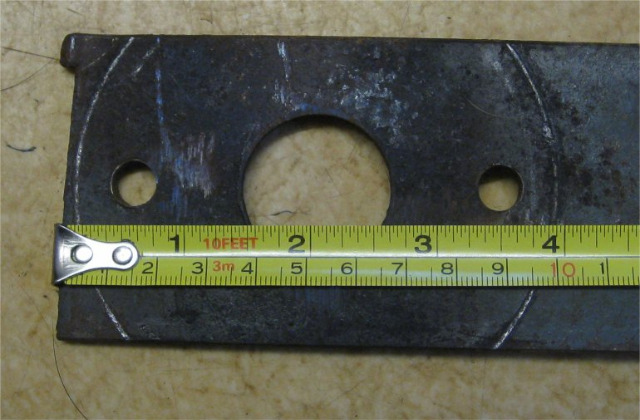

I thought the tool clamped flat against the pulley inner rim using the two threaded holes like the one I knocked up, then it relies on friction between the surfaces rather than the bending of the bolts.



Everyone else here had no trouble either bumping the bolt undone with the starter, or rattle-gunning it off, it was just mine that was so badly corroded.

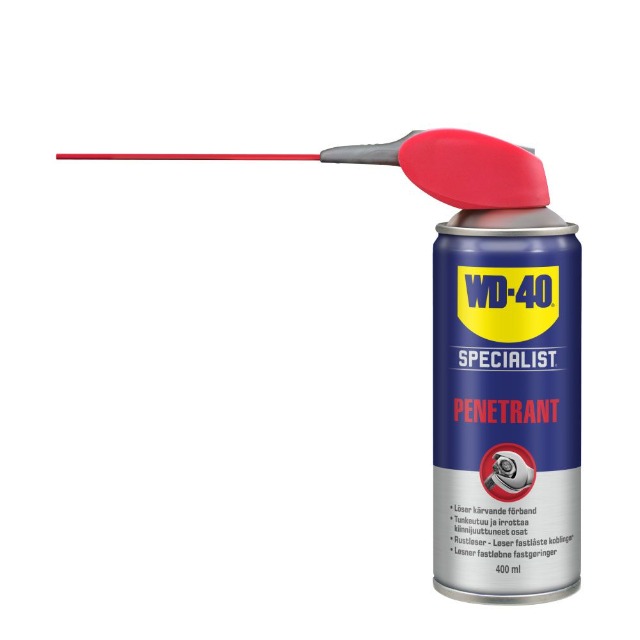

I tried all the Magic Fluids I had, diesel, GT-85 WD-40, Plus-gas, and even got the torch to it and made it glow red- so I ended up replacing the seal too, as I thought it might have melted. I spent the best part of a week on it with leaving the Magic Fluids to soak in and re-applying.

Tbh, if the garage can't do straight forward jobs properly, I'd stop using them.








I had to do what Facade did. Grind off the flange faces around the bolt to reduce the area that was corroded together so the bolt can be undone.

A further point to note. The pulley is stopped from rotating on the shaft by a Woodruff key. This sits in a keyway on the crankshaft and is shared between the pulley and the timing chain sprocket. I have had a number of customers destroy the Woodruff key (not particularly a disaster) or more seriously damage the crankshaff key and sprocket.

mlines wrote:

 <snip>

A further point to note. The pulley is stopped from rotating on the shaft by a Woodruff key. This sits in a keyway on the crankshaft and is shared between the pulley and the timing chain sprocket. I have had a number of customers destroy the Woodruff key (not particularly a disaster) or more seriously damage the crankshaff key and sprocket.


Was that through not fully tightening the pulley? - 150Nm, you need that locking tool to get that easily.



I can't imagine how else you could damage the key except by fretting because of a loose pulley.

The woodruff probably gets damaged using the 'starter motor' technique, as the rotational force is through the shaft (and key) to the bolt and it's probably the jolt or repeated jolt which damages the key.

At least using a tool like the one you and me made the force is applied direct to the pulley, so if the bolt is stuck on the pulley it's more direct and less likely to bend anything.

When I did mine a few years ago we had a lot more force than 150nm on it, we had a 1m breaker bar (3/4" drive), with a short extension and a 80Kg bloke on the end, that's probably nearer 800nm.

Robin
