Quick crankshaft pulley question
01 Nov 2024 17:11 #258135
by fordem
The woodruff keys get damaged because the crank pulley bolt is improperly torqued, the woodruff key is meant to locate the pulley, not to drive it (withstand the torsional forces) - this is a well known (and well understood problem) with quite a few different engines - Suzuki's G16 engines are one example, Suzuki issued a TSB (4-23 07196) instructing that the bolt be tightened to 130Nm, the previous specification was 110Nm.
Replied by fordem on topic Quick crankshaft pulley question
The woodruff probably gets damaged using the 'starter motor' technique, as the rotational force is through the shaft (and key) to the bolt and it's probably the jolt or repeated jolt which damages the key.
The woodruff keys get damaged because the crank pulley bolt is improperly torqued, the woodruff key is meant to locate the pulley, not to drive it (withstand the torsional forces) - this is a well known (and well understood problem) with quite a few different engines - Suzuki's G16 engines are one example, Suzuki issued a TSB (4-23 07196) instructing that the bolt be tightened to 130Nm, the previous specification was 110Nm.
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 1916
- Thank you received: 496
01 Nov 2024 18:08 #258137
by DrRobin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Replied by DrRobin on topic Quick crankshaft pulley question
Whilst I agree with you about the general purpose of a woodruff key, it's there for location, think about a timing gear and is not meant to provide drive (that would use a splined shaft) why does the flywheel pulley even have a woodruff key, there is no timing to maintain?
I suspect Suzuki put it there to stop the pulley from turning whilst under load, or just possibly to stop the pulley from turning whilst the bolt is torqued and using the special tool.
Robin
I suspect Suzuki put it there to stop the pulley from turning whilst under load, or just possibly to stop the pulley from turning whilst the bolt is torqued and using the special tool.
Robin
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog
Please Log in or Create an account to join the conversation.
01 Nov 2024 19:30 #258138
by fordem

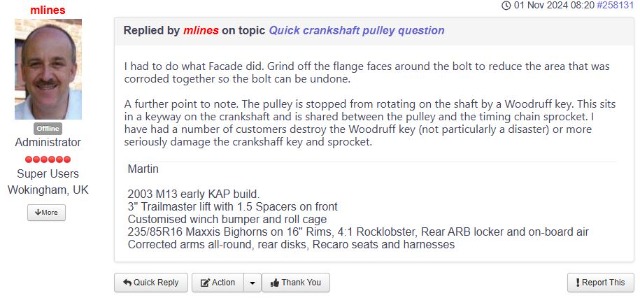

I'm just going to leave this here for you to look at...
Replied by fordem on topic Quick crankshaft pulley question
Whilst I agree with you about the general purpose of a woodruff key, it's there for location, think about a timing gear and is not meant to provide drive (that would use a splined shaft) why does the flywheel pulley even have a woodruff key, there is no timing to maintain?
I'm just going to leave this here for you to look at...
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 9070
- Thank you received: 1815
01 Nov 2024 20:26 #258139
by Lambert
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
Replied by Lambert on topic Quick crankshaft pulley question
And this, well specifically Facades experience, is the reason I have a 1000Nm rattle gun, I refuse to be beaten by a bolt. As for woodruff key use, they only fail under abuse and or neglect. Used within their design parameters and they can happily transmit significant torque quite reliably.
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
Please Log in or Create an account to join the conversation.
- Rogerzilla
- Topic Author
- Offline
- Premium Member
-
Registered
Less
More
- Posts: 90
- Thank you received: 11
21 Nov 2024 17:31 - 21 Nov 2024 17:34 #258439
by Rogerzilla
Replied by Rogerzilla on topic Quick crankshaft pulley question
It's been changed now. The garage said it was pretty easy because the transmission can be locked by removing a cover plate, then torquing the bolt is straightforward.

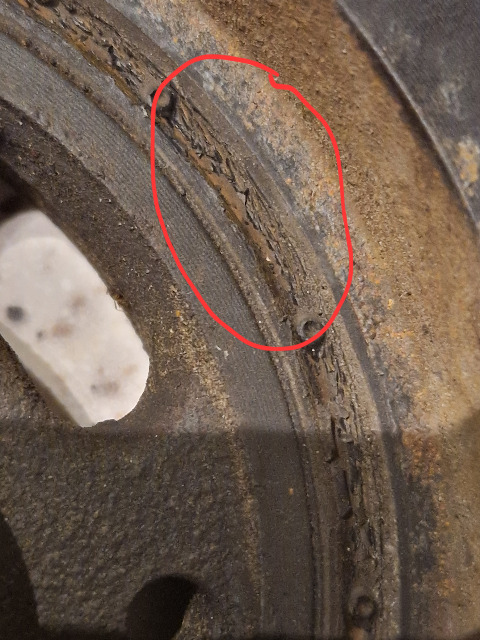

The old pulley does not look good.
It also has a new radiator and tensioner pulley, because there's no point putting 13-year old consumables back on. The old pulley was apparently not graunchy but had some play.
The old pulley does not look good.
It also has a new radiator and tensioner pulley, because there's no point putting 13-year old consumables back on. The old pulley was apparently not graunchy but had some play.
Last edit: 21 Nov 2024 17:34 by Rogerzilla.
Please Log in or Create an account to join the conversation.
21 Nov 2024 22:21 #258444
by facade
It is only a single row ball race, there will always be axial play, but not radial play. Grabbing the outer race and rocking/twisting it highlights the axial play.
Never hurts to change it, but they are ££££££ as you now know!
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
Replied by facade on topic Quick crankshaft pulley question
They all do that Sir!It's been changed now.
<snip>
It also has a new radiator and tensioner pulley, because there's no point putting 13-year old consumables back on. The old pulley was apparently not graunchy but had some play.
It is only a single row ball race, there will always be axial play, but not radial play. Grabbing the outer race and rocking/twisting it highlights the axial play.
Never hurts to change it, but they are ££££££ as you now know!
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
The following user(s) said Thank You: Rogerzilla
Please Log in or Create an account to join the conversation.
- Rogerzilla
- Topic Author
- Offline
- Premium Member
-
Registered
Less
More
- Posts: 90
- Thank you received: 11
22 Nov 2024 16:22 #258454
by Rogerzilla
Replied by Rogerzilla on topic Quick crankshaft pulley question
I bought a new one anyway, since it might as well be changed when it's 13 years old and easy to do with the rad out (you try not to take the rad out on an auto because you have the added mess of ATF hoses to deal with; goodness knows how hot ATF gets if running it once through the bottom tank of the radiator actually cools it!
