Another green laner build
09 Sep 2021 19:57 - 09 Sep 2021 19:59 #238409
by LesNewell
Another green laner build was created by LesNewell
I recently purchased a 2001 Jimny auto as a more comfortable green laning alternative to my trials car. The trials car is remarkably effective off road even though it is 2WD and runs road tyres but the lack of doors makes it pretty uncomfortable in the winter.When I first looked at the Jimny I spotted some rust and dubious patches but the price seemed right. After getting it on the lift and attacking it with the rust finder 9000 (needle gun) things started going downhill fast. First the rear wheel arches. Left hand rust cut out ready for patching

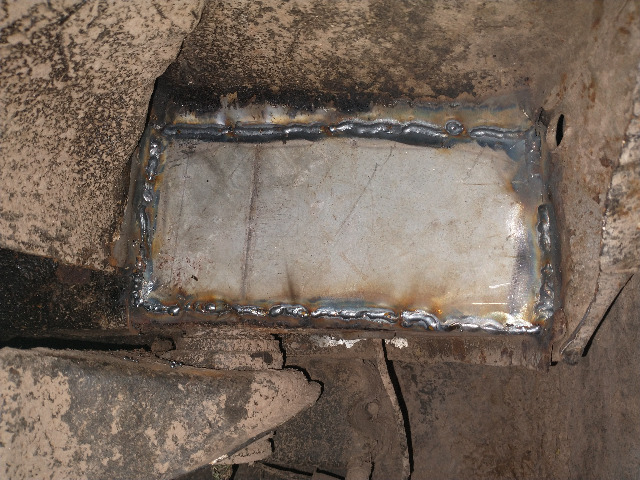

With patch. I really need more practice welding bodywork. It's been a while since I worked on steel this thin. 0.6mm wire would probably help but the smallest I have here is 0.8.
The right hand side had been patched but I couldn't stand seeing the family of dead caterpillars masquerading as welds. It had to go. Here it's nearly ready for teh patch.
The welds may not be pretty but at least they are solid.
Right hand rear outrigger next. It didn't look too bad until I attacked it with the needle gun and cut out the reinforcing gusset (aka mud trap)..
After staring at it a bit I decided the best route was to cut it all off and start again. Most of the cup could be saved but the rest was toast. After adding some steel:
And glued back on the chassis
With patch. I really need more practice welding bodywork. It's been a while since I worked on steel this thin. 0.6mm wire would probably help but the smallest I have here is 0.8.
The right hand side had been patched but I couldn't stand seeing the family of dead caterpillars masquerading as welds. It had to go. Here it's nearly ready for teh patch.
The welds may not be pretty but at least they are solid.
Right hand rear outrigger next. It didn't look too bad until I attacked it with the needle gun and cut out the reinforcing gusset (aka mud trap)..
After staring at it a bit I decided the best route was to cut it all off and start again. Most of the cup could be saved but the rest was toast. After adding some steel:
And glued back on the chassis
Last edit: 09 Sep 2021 19:59 by LesNewell.
Please Log in or Create an account to join the conversation.
09 Sep 2021 20:18 - 09 Sep 2021 20:36 #238410
by LesNewell
Replied by LesNewell on topic Another green laner build
On to the middle outriggers. Both had badly rotted gussets. The chassis behind the gussets was pretty thin so I pad welded it to build up the thickness. Looking closely at the way the gussets were originally attached I'm not convinced they added a significant amount of strength. I don't think it's worth replacing them. What do you think?
Let's have a poke at the left rear outrigger. The gusset was toast but otherwise the outrigger was not too bad. After building up a few thin areas and adding a new gusset:

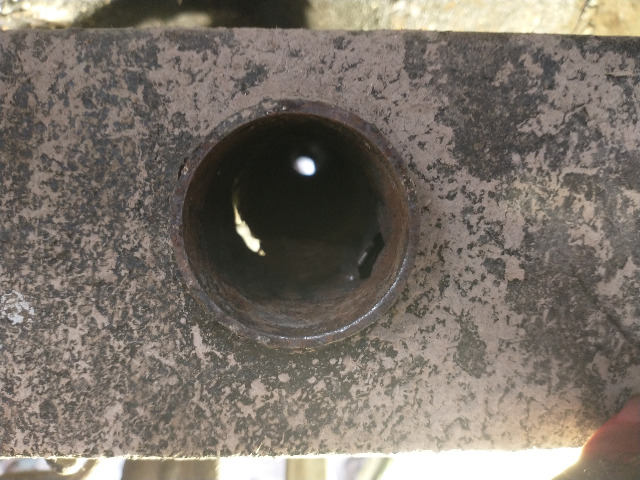

Hmm, the inside of the rear crossmember looks a bit scabby but the outside looks solid. Let's see what happens if I poke the needle gun down there. Umm, that's not good. The rust finder 9000 strikes again.

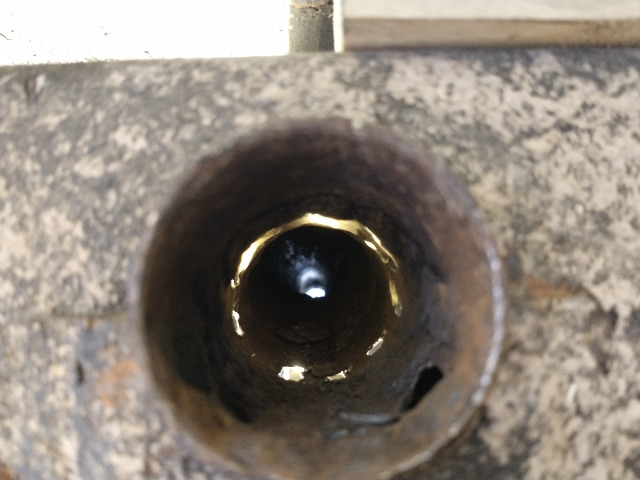

Let's try the other side. Yikes! That's really not good. I think if this was left I'd have had a rear shock poking through the floor and saying hi within a few months.
The panhard mount brace is looking a bit holey too.
Let's have a poke at the left rear outrigger. The gusset was toast but otherwise the outrigger was not too bad. After building up a few thin areas and adding a new gusset:
Hmm, the inside of the rear crossmember looks a bit scabby but the outside looks solid. Let's see what happens if I poke the needle gun down there. Umm, that's not good. The rust finder 9000 strikes again.
Let's try the other side. Yikes! That's really not good. I think if this was left I'd have had a rear shock poking through the floor and saying hi within a few months.
The panhard mount brace is looking a bit holey too.
Last edit: 09 Sep 2021 20:36 by LesNewell.
Please Log in or Create an account to join the conversation.
09 Sep 2021 20:29 #238411
by LesNewell
Replied by LesNewell on topic Another green laner build

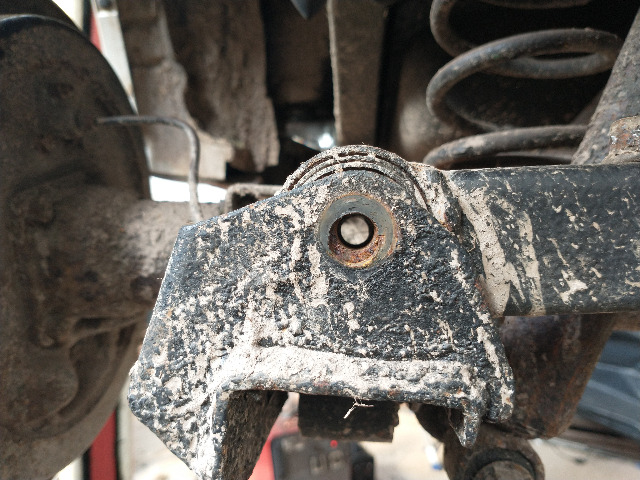

The previous owner attempted to make a new rear panhard rod, with 'interesting' results. I have no major issues with a fabricated panhard rod but if you're going to do it, at least try to do it right. I don't know what the bushes were off but they only had a 8mm hole and bolt instead of the original 10mm. That doesn't inspire confidence.
The rod itself seems to have been made from two pieces of U section door runner welded together in the middle!
Not sure if I will make a new panhard or buy a second hand one. Anyone in Devon with a spare rear panhard?
The rod itself seems to have been made from two pieces of U section door runner welded together in the middle!
Not sure if I will make a new panhard or buy a second hand one. Anyone in Devon with a spare rear panhard?
Please Log in or Create an account to join the conversation.
10 Sep 2021 07:19 #238419
by Keithy
Replied by Keithy on topic Another green laner build
You look to be having fun and have the job in hand......A chap called Wayne Thompson is probably the nearest Jimny breaker to you.... Or J999PRE aka James Priestley can post one too.
Please Log in or Create an account to join the conversation.
10 Sep 2021 09:12 #238421
by LesNewell
Replied by LesNewell on topic Another green laner build
Thanks for the names of possible sources for a replacement panhard.
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 9082
- Thank you received: 1817
10 Sep 2021 09:46 #238422
by Lambert
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
Replied by Lambert on topic Another green laner build
Good to see another one saved from the scrap.
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
Please Log in or Create an account to join the conversation.
- Dirtbird
- Visitor
-
Public
10 Sep 2021 15:03 - 10 Sep 2021 15:04 #238427
by Dirtbird
Replied by Dirtbird on topic Another green laner build
Nice welding lad. What are you using.
Last edit: 10 Sep 2021 15:04 by Dirtbird.
Please Log in or Create an account to join the conversation.
10 Sep 2021 18:15 #238434
by LesNewell
Replied by LesNewell on topic Another green laner build
It's a Portamig 281, about the biggest you can get on single phase. It's great for fabrication work but a bit violent on the thin stuff. The torch is also a bit clumsy for body work. I have a smaller 150A torch on order, which should make life easier.
The following user(s) said Thank You: Dirtbird
Please Log in or Create an account to join the conversation.
10 Sep 2021 18:43 - 10 Sep 2021 18:46 #238436
by LesNewell
Replied by LesNewell on topic Another green laner build
Got a bit more work done this afternoon. The only thing I could do with the right hand side of the rear crossmember was to cut out the worst of the rot then drive in a chunk of pipe that fits inside the original pipe. It's welded both sides of the chassis. The rot in the panhard rod brace is also fixed and the stupid gap above the brace filled in. For some reason the driver's side of this truck has significantly more corrosion than the passenger's side. Normally it's the other way round.
The left hand side of the crossmember is just patched.
I pointed the needle gun of doom at the upper spring mounts and to my surprise they are solid with no welding needed. The only other chassis welding was a small hole in one front outrigger. As far as I can tell the chassis welding is done. Unfortunately the previous owner sprayed the chassis with stone chip, which lives up to it's name. It chips as soon as a stone hits it. I spent a pleasant few hours needle gunning it off. When the time comes I'll be using schutz to replace it. That stuff just smears if you hit it hard.
While it's up in the air I need to look at some way of protecting for the transfer case without compromising ground clearance too much. I'm thinking a tubular frame as I don't like the way flat plates collect mud.
