Fitting a Steering damper kit

  • Carrow
  • Topic Author
  • Visitor
  • Visitor
    Public
10 May 2012 18:39 - 10 May 2012 19:19 #39872 by Carrow
Fitting a Steering damper kit was created by Carrow
Hi,
I recently fitted AT tyres and Grayston 32mm wheel spacers, as a result I now have a little steering wobble, Kingpins ok, wheels balanced, wheel bearings ok, so I have ordered the steering damper from Jimny bits.

This one: www.jimnybits.co.uk/shop/jimny/jimny-ste...mper-kit/prod_8.html

Pro Comp option.

unfortunatly as I am a Jimny NEWBIE! :S not 100% sure how to fit, can anyone help with a piccy or instructions. cheers.
Last edit: 10 May 2012 19:19 by Carrow. Reason: Link error

Please Log in or Create an account to join the conversation.

  • Yuleysjimny
  • Visitor
  • Visitor
    Public
10 May 2012 20:11 #39892 by Yuleysjimny
Replied by Yuleysjimny on topic Re: Fitting a Steering damper kit
i shall take a pic of mine tomorrow and post it up for you its very easy really..

Please Log in or Create an account to join the conversation.

More
10 May 2012 20:28 - 10 May 2012 20:41 #39899 by dirtydogz
You should all so check you tie rod end, you have four on the jimny one may have so play in it this will also give you steering wobble.
l replaced one of the tie-rod ends after getting some death wobble at 45 mph' so it's not always the king pins.
On my jimny it's been the wheels balancing and two tie-rod ends, 40,000 miles on the same king pins not to bad.

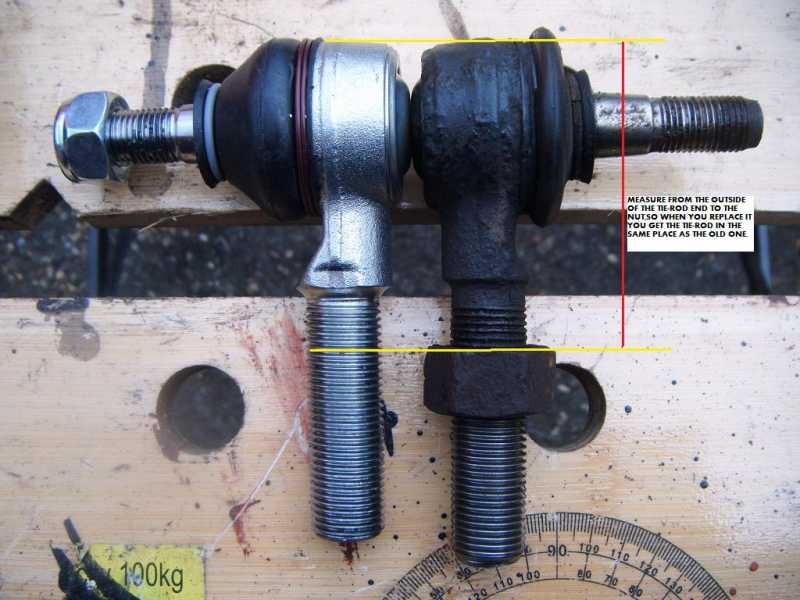

As you can see from the photo of the tie-rod ends, they have two different length threads so you will need to measure as in the photo, from the outside of the tie-rod end to the locking nut, so it fit in the same place as the old one on the steering bar.
Hope this helps.
Dirtydogz

2002 JLX Soft Top B)
Jimnybits 2" lift +Pro Comp ES1000 shocks.:) Big Jimny rear shock mounts. Big Jimny adjustable panhard rods.
Big Jimny steering damper bracket. Disco Armstrong steering damper. 7X15 black modulars. 205/75/15 Maxxis 743 bravo m/t.Superpro camber correction bushes.Black A bar....
Attachments:
Last edit: 10 May 2012 20:41 by dirtydogz.
The following user(s) said Thank You: Carrow

Please Log in or Create an account to join the conversation.

More
11 May 2012 06:22 - 11 May 2012 06:26 #39925 by Halford

recently fitted AT tyres and Grayston 32mm wheel spacers, as a result I now have a little steering wobble


:woohoo: same problem that happened to me
:blush: mine still wobbles
:) looking forward to watching how you sort this

Might follow dirtydogz's thinking and try sticking on some new tie rod ends
what do you do to check if they're dodgy :unsure:

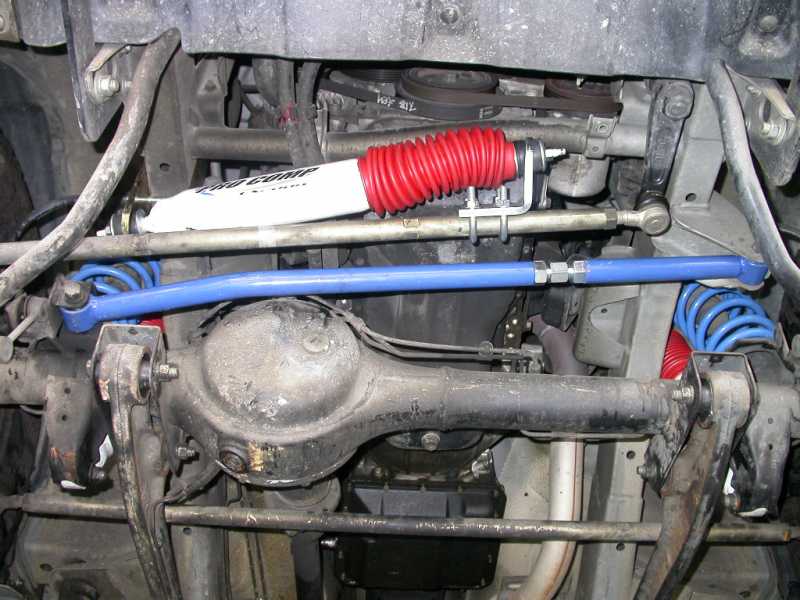

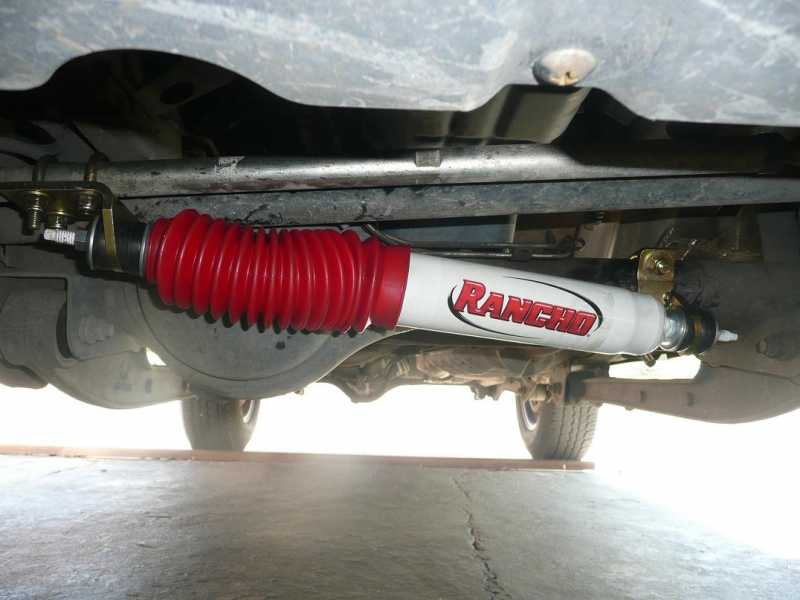

some pics that might help





Attachments:
Last edit: 11 May 2012 06:26 by Halford.

Please Log in or Create an account to join the conversation.

More
11 May 2012 07:17 #39931 by supergaz
This damper kit is different from all of the above. I'm sure Bluejimny will be along soon.
It clamps to the o/s chassis rail across to the rear steering bar.
The top picture looks incorrect, it does clamp to the axle, but then to the rear steering bar up and out of harms way.

Please Log in or Create an account to join the conversation.

  • bluejimny
  • Visitor
  • Visitor
    Public
11 May 2012 08:18 - 11 May 2012 08:19 #39935 by bluejimny
Replied by bluejimny on topic Re: Fitting a Steering damper kit


I will soon get round to writing a blog on my site "how too" when i get abit of free time :unsure:
Last edit: 11 May 2012 08:19 by bluejimny.

Please Log in or Create an account to join the conversation.

  • darthloachie
  • Visitor
  • Visitor
    Public
11 May 2012 12:10 #39959 by darthloachie
Replied by darthloachie on topic Re: Fitting a Steering damper kit

Halford wrote:
Might follow dirtydogz's thinking and try sticking on some new tie rod ends
what do you do to check if they're dodgy :unsure:


grab a hold of the sterring arms and give them a shake - ours rattled :whistle: replaced all four

Please Log in or Create an account to join the conversation.

  • Carrow
  • Topic Author
  • Visitor
  • Visitor
    Public
11 May 2012 19:47 #40000 by Carrow
Replied by Carrow on topic Re: Fitting a Steering damper kit
Cheers Bluejimny, piccy helps a lot. I will get on and fit it, I have checked the tie rod ends, dirtydogz, all seem ok, but they were my thinking also, especially that I have done 54,600 miles, but my zooki has just past its MOT with flying colours.

I will fit the damper kit and report back. Thanks

Please Log in or Create an account to join the conversation.

  • nicho
  • Visitor
  • Visitor
    Public
11 May 2012 21:07 #40010 by nicho
Replied by nicho on topic Re: Fitting a Steering damper kit

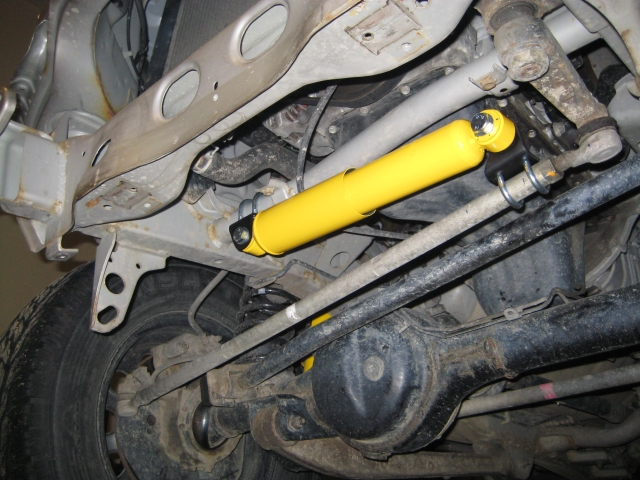

whats the yellow one

Please Log in or Create an account to join the conversation.

  • Carrow
  • Topic Author
  • Visitor
  • Visitor
    Public
13 May 2012 11:28 #40118 by Carrow
Replied by Carrow on topic Re: Fitting a Steering damper kit
Hi,

Quick report back, I have fitted the jimny bits steering damper kit, and I have to say, why don't jimny's come with these things as standard, WOW!! :woohoo: steering in really smooth, no more wobbles. On ther motorway at 65 MPH, yes not a typo, 65MPH, the drive was smooth.

Well worth the investment.

Please Log in or Create an account to join the conversation.

More
09 Nov 2018 08:40 #197518 by Lomax
Replied by Lomax on topic Fitting a Steering damper kit
Morning,

Just a quick question. When installing with your wheels straight. How far should the piston be in the shock when installing?

Cheers

Please Log in or Create an account to join the conversation.

  • Lambert
  • Lambert's Avatar
  • Offline
  • Moderator
  • Moderator
    Registered
  • The quickest Jimny in Harrogate...(that I own)
More
09 Nov 2018 09:27 #197519 by Lambert
If the wheels are straight then half way in the stroke of the damper so you have equal travel in each direction.

Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!

Please Log in or Create an account to join the conversation.
