Led SZ5 Headlight Wiring

More
01 May 2024 20:43 #255838 by DavidEdie01
Led SZ5 Headlight Wiring was created by DavidEdie01

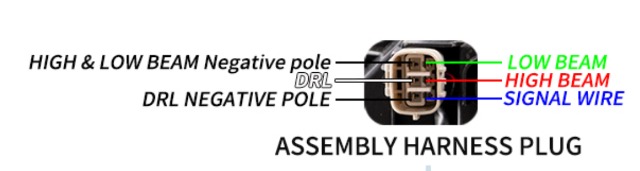

Hello, Does anyone know what is this "signal" wire for,  in the harness of the SZ5 Jimny LED headlight?



Please Log in or Create an account to join the conversation.

More
02 May 2024 06:34 #255840 by DrRobin
Replied by DrRobin on topic Led SZ5 Headlight Wiring
The only thing I can think of is a turn indicator. Quite a few cars have headlight, DRL and turn indicators integrated into one unit.
2020 blue SZ5 (one of the last to be registered in the UK)
Ex 2011 Blue Jimny SZ4
Northumberland Jimny Blog

Please Log in or Create an account to join the conversation.

More
02 May 2024 08:29 #255841 by mlines
Replied by mlines on topic Led SZ5 Headlight Wiring
Looking at the circuit diagrams it looks to me to be the Headlight leveling signal

Martin
Martin

2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
