Gen4 Headlight Auto Levelling Initiallisation
Less
More
- Posts: 1885
- Thank you received: 518
13 Nov 2022 17:37 - 13 Nov 2022 17:38 #245923
by Soeley
Black 2019 Jimny SZ5
www.bigjimny.com/index.php/forum/8-my-ji...ley-s-2019-black-sz5
Gen4 Headlight Auto Levelling Initiallisation was created by Soeley
During today's
Hunt The Rattle
, I undid the Link (item 2 below)
As it did rattle when you moved it. When refitting, it slipped off the square spigot of the senor and it rotated a few times.

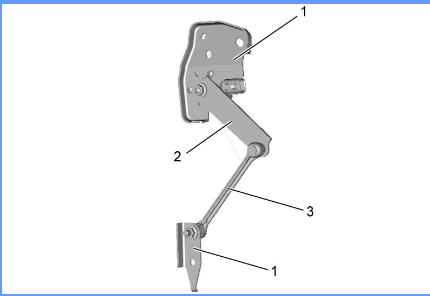

Now after finding the real cause of the rattle, I went out for a test drive, and as the headlights were set to Auto, I noticed they didn't do the usual up/down system check. So I decided to check the workshop manual, it says "After removing the link (Item 2 above) initialize headlight auto leveling system."
