Help please>> M16A swap engine not working

More
05 Jul 2017 14:51 - 05 Jul 2017 17:02 #182490 by Mr.m.y
HI

Jimny 2015 VVT Manual

WE swap m16a vvt from suzuki swift sport 2014

the engine would not wont to start
the engine is cranking but there no spark in the ignition
we try to check all sensor ..we cant interference with computer to read the data
we check all connector
please any help

i am always swap m18a
but this time my friend bring for me m16a vvt but its new 2014 ..there some different with ignition system that it has
i dont EGR install it because it dosent fit in m16a engine t
m18a has EGR system

Best regards
Last edit: 05 Jul 2017 17:02 by Mr.m.y.

Please Log in or Create an account to join the conversation.

More
05 Jul 2017 15:55 #182491 by Keithy
Engine ground good?
The following user(s) said Thank You: Mr.m.y

Please Log in or Create an account to join the conversation.

More
05 Jul 2017 17:00 #182493 by Mr.m.y
yes...
this my third swap
i am always swap m18a
but this time my friend bring for me m16a vvt but its new 2014 ..there some different with ignition system that it has
i dont EGR install it because it dosent fit in m16a engine t
m18a has EGR system

Please Log in or Create an account to join the conversation.

More
05 Jul 2017 19:06 #182498 by Keithy
Is the trigger wheel the same?

Please Log in or Create an account to join the conversation.

More
06 Jul 2017 14:46 - 06 Jul 2017 19:31 #182512 by Mr.m.y

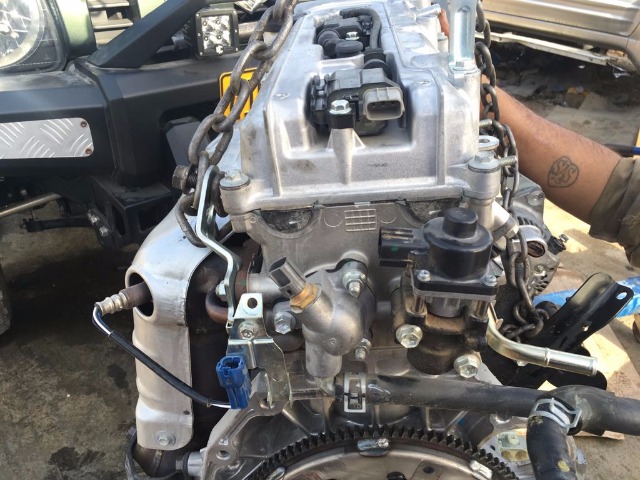

i want note m16a has 4 separate 4 ignition coils as you seen in the picture
Last edit: 06 Jul 2017 19:31 by Mr.m.y.

Please Log in or Create an account to join the conversation.

More
06 Jul 2017 18:39 #182519 by Keithy

Mr.m.y wrote: i want note m16a has 4 separate injectors as you seen in the picture

Ahh so you have 4 ignition coils....can't you change the cam cover and fit the wasted spark coils?
The following user(s) said Thank You: Mr.m.y

Please Log in or Create an account to join the conversation.

More
07 Jul 2017 08:18 #182527 by Mr.m.y
i swap the cover and indignation coil of m13a
now the problem i have petrol and low spark

Please Log in or Create an account to join the conversation.

More
07 Jul 2017 20:13 #182539 by Keithy
Did you check the engine is grounded?

Put a multimeter set on DC Volts from the negative terminal on the battery and the other to the engine block....anything over 0.5V I'd reground it.

Do the sensors have the same resistance value as the originals?
The following user(s) said Thank You: Mr.m.y

Please Log in or Create an account to join the conversation.

More
09 Jul 2017 14:06 #182569 by Mr.m.y
Thankyou Keithy

There was different in the trigger wheel
m13a 31 teeth
m16a 2014 vvt sport 30 teeth

any recommendation

Please Log in or Create an account to join the conversation.

More
09 Jul 2017 20:03 #182584 by Keithy
Damn that's hard cheese old chap....swap the trigger wheel?....it'll fit but it means dropping the sump removing the crank and 3 allen socket heads....it's a whole lot of work but it should be able to be managed by the ecu then.

Please Log in or Create an account to join the conversation.

More
12 Jul 2017 13:38 #182674 by Mr.m.y
we swap the trigger wheel
and the engine work great
thankyou all
The following user(s) said Thank You: evgenovalov

Please Log in or Create an account to join the conversation.

More
12 Jul 2017 17:27 #182679 by Keithy

Mr.m.y wrote: we swap the trigger wheel
and the engine work great
thankyou all


Nice one I'm pleased for you!
The following user(s) said Thank You: Mr.m.y

Please Log in or Create an account to join the conversation.
