07 Oct 2014 15:59 #125941
by PascalASR
Replied by PascalASR on topic Workshop Manuals
Hey Jonathan,
problem is that I have all possible manuals but nothing about transfer case, latest one. The alignment of that electrical stepper motor is problem! After they open it, now when you try to put 2WD, transfer case goes to neutral. 4WD and 4WD-L are working. Somehow ECU/Electronic is putting it in the neutral while actually you push 2WD button! He select neutral on transfer case so no power transfer to rear wheels due to long movement of the stepper motor that moves that 2 forks forward and backwards. Need only those few pages if possible. Thanks!!
P.S. They should NEVER open that stepper motor box! I think that now there is procedure how to assemble back that stepper motor box to let know ECU/TCU/electronic sensors where is actually position of the fork for 2WD
problem is that I have all possible manuals but nothing about transfer case, latest one. The alignment of that electrical stepper motor is problem! After they open it, now when you try to put 2WD, transfer case goes to neutral. 4WD and 4WD-L are working. Somehow ECU/Electronic is putting it in the neutral while actually you push 2WD button! He select neutral on transfer case so no power transfer to rear wheels due to long movement of the stepper motor that moves that 2 forks forward and backwards. Need only those few pages if possible. Thanks!!
P.S. They should NEVER open that stepper motor box! I think that now there is procedure how to assemble back that stepper motor box to let know ECU/TCU/electronic sensors where is actually position of the fork for 2WD
Please Log in or Create an account to join the conversation.
- RML
- Visitor
-
Public
17 Aug 2015 09:15 #149961
by RML
Replied by RML on topic Workshop Manuals For
Does anyone know if the manuals online cover the Ja11 / Ja12?
Thanks
Rich
Thanks
Rich
Please Log in or Create an account to join the conversation.
- S85-Jimny
- Visitor
-
Public
04 Jan 2016 09:53 #159687
by S85-Jimny
Replied by S85-Jimny on topic Workshop Manuals
I was looking at the manuals list and I see that the latest one (99501-81A20-01E) is from 2005.
i'm looking for some information about VVT engine (Valve Cover Gasket) and I don't see anything about it there.
Does it mean that It hasn't been changed from the non-VVT to VVT version? or is there a later manual?
Thanks for any info
i'm looking for some information about VVT engine (Valve Cover Gasket) and I don't see anything about it there.
Does it mean that It hasn't been changed from the non-VVT to VVT version? or is there a later manual?
Thanks for any info
Please Log in or Create an account to join the conversation.
04 Jan 2016 10:20 #159688
by mlines
Martin
2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
Replied by mlines on topic Workshop Manuals
The manuals are incremental, ie. more recent manuals ONLY have the changes in them from the previous version
Martin
2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
Please Log in or Create an account to join the conversation.
- S85-Jimny
- Visitor
-
Public
04 Jan 2016 12:23 #159699
by S85-Jimny
Replied by S85-Jimny on topic Workshop Manuals
Just to make sure - So if I don't find information about installation of some part - I should work according to the previous manual?
Please Log in or Create an account to join the conversation.
04 Jan 2016 12:32 #159701
by mlines
Martin
2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
Replied by mlines on topic Workshop Manuals
Correct,

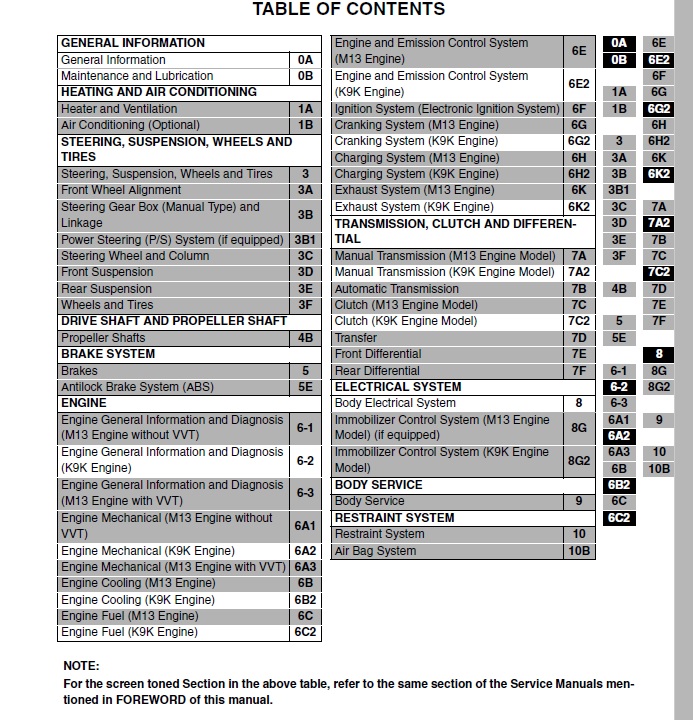

So here is the contents page from the latest manual in the list and the chapters that are "greyed out" are in a previous manual.
So here is the contents page from the latest manual in the list and the chapters that are "greyed out" are in a previous manual.
Martin
2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
The following user(s) said Thank You: S85-Jimny
Please Log in or Create an account to join the conversation.
- S85-Jimny
- Visitor
-
Public
04 Jan 2016 12:46 #159702
by S85-Jimny
Replied by S85-Jimny on topic Workshop Manuals
Got it. Thanks a lot
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 760
- Thank you received: 225
05 Jan 2016 02:54 - 05 Jan 2016 04:57 #159779
by zukebob
I started out with nothing & still have most of it left
Replied by zukebob on topic Workshop Manuals
I tried purchasing a manual from the dealer here in the PI. They won't sell it. Sort of puts a person in a position of having to make a decision.
I have seen a download link in the past. If someone is curious to know how to find it, PM me and I can direct you.
That is assuming it doesn't violate any forum rules.
I have seen a download link in the past. If someone is curious to know how to find it, PM me and I can direct you.
That is assuming it doesn't violate any forum rules.
I started out with nothing & still have most of it left
Last edit: 05 Jan 2016 04:57 by zukebob. Reason: Clarification
Please Log in or Create an account to join the conversation.
- SJMOTOS
- Visitor
-
Public
08 Mar 2017 01:02 #178968
by SJMOTOS
Replied by SJMOTOS on topic Workshop Manuals
Hello, I've been trying to solve a problem for a few weeks, but I can not see the complete electrical diagram of the 4WD control system of a particular model, it's Jimny 2007 with buttons on the drive, the 4WD computer has 2 connectors, I've only found The Jimny manuals with lever and the other with 4WD control but the modern system, which uses a control with a single connector, (not two) the system is totally different.
www.bigjimny.com/index.php/forum?view=topic&catid=7&id=61748
www.bigjimny.com/index.php/forum?view=topic&catid=7&id=61748
Please Log in or Create an account to join the conversation.
- CharlesS
- Visitor
-
Public
07 Jan 2018 07:48 #188083
by CharlesS
Replied by CharlesS on topic Workshop Manuals
Unless you make friends with a person in the Parts or Service Department; you will have a difficult time purchasing a Factory Service Manual. The Dealerships in the Philippines do not maintain much in stock that does not have a fast turnover.
I recently purchased a set of Service Manuals (all listed by Martin) on PDF to assist me in troubleshooting once I purchase a Jimney in the near future. Figure its money well spent.
I recently purchased a set of Service Manuals (all listed by Martin) on PDF to assist me in troubleshooting once I purchase a Jimney in the near future. Figure its money well spent.
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 760
- Thank you received: 225
09 Jan 2018 03:11 #188152
by zukebob
I started out with nothing & still have most of it left
Replied by zukebob on topic Workshop Manuals
CharlesS (and others looking for post 2006 manuals) follow this link:
2007 - Present Service Manuals
Rhinoman explains why current manuals are unavailable as pdf files.
2007 - Present Service Manuals
Rhinoman explains why current manuals are unavailable as pdf files.
I started out with nothing & still have most of it left
Please Log in or Create an account to join the conversation.
- Stoyan
- Visitor
-
Public
11 Dec 2018 07:41 #198869
by Stoyan
Replied by Stoyan on topic Workshop Manuals
Hello, if you are looking for free pdf manuals for suzuki samurai, jimny, lj, visit this page
www.suzukiclub.cz/manualy?ddlb_language=2&ddlb_model=4
....you need a simple register free of charge and you can download up to 2 manuals a day (unfortunatelly there is a limit of 2 files a day)
