Suspension lift
08 Jan 2023 20:43 #246766
by radlom
Suspension lift was created by radlom
Hi all
Recently got a Jimny with 2" body lift(measured the blocks),265/70/15 tires and suspension lift but can't work out what size the suspension lift is. Would anyone know how long the stock shocks are (fitted with the weight of the car on them) so I can measure the difference?
Recently got a Jimny with 2" body lift(measured the blocks),265/70/15 tires and suspension lift but can't work out what size the suspension lift is. Would anyone know how long the stock shocks are (fitted with the weight of the car on them) so I can measure the difference?
Please Log in or Create an account to join the conversation.
09 Jan 2023 06:26 #246769
by yakuza
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Replied by yakuza on topic Suspension lift
Easier to measure the distance from the edge of the fender flare (if it is the original ones) and to the center of the wheel?
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Please Log in or Create an account to join the conversation.
09 Jan 2023 07:46 - 09 Jan 2023 07:55 #246770
by Scimike
Yokohama Geolanders, Sony head unit, NAUTILUS Air Horn, DRL conversion, Rear cargo space, Elvis Bobblehead, transfer Guard, Indian hanging Elephant, Koni Heavy track dampers, Custom SS exhaust, Voodoo Doll, Adventure Rack with LED ight bar, vintage ERIBA caravan usually attached (yes it's slow)
Replied by Scimike on topic Suspension lift
It is a lot easier.
It's 16.5 inch rear and 17nch front, both sides, this is my standard 2009. Wheel center vertical to underside of plastic arch.
Use and abuse may change these figures car to car. I tow with ours so the rear end gets loaded every year, so a few more measurements from others, take the average and it's as close as you will get.
It's 16.5 inch rear and 17nch front, both sides, this is my standard 2009. Wheel center vertical to underside of plastic arch.
Use and abuse may change these figures car to car. I tow with ours so the rear end gets loaded every year, so a few more measurements from others, take the average and it's as close as you will get.
Yokohama Geolanders, Sony head unit, NAUTILUS Air Horn, DRL conversion, Rear cargo space, Elvis Bobblehead, transfer Guard, Indian hanging Elephant, Koni Heavy track dampers, Custom SS exhaust, Voodoo Doll, Adventure Rack with LED ight bar, vintage ERIBA caravan usually attached (yes it's slow)
Last edit: 09 Jan 2023 07:55 by Scimike.
Please Log in or Create an account to join the conversation.
09 Jan 2023 12:09 #246774
by radlom
Replied by radlom on topic Suspension lift
I've got no plastic lining inside the wings so measured from centre of wheels to underside of the metal arches. It measures 22.4 inches at front and 24 inches at the back. Take away your measurements and the 2 inch blocks I'm left with 5.5 inches at the front and 3.4 inches at the back. Not sure how much to allow for the thickness of the plastic arches but don't think it'll be more than half an inch. Either way it's too much. What do you think?
Please Log in or Create an account to join the conversation.
Less
More
- Posts: 760
- Thank you received: 225
09 Jan 2023 13:05 - 09 Jan 2023 13:18 #246777
by zukebob
I started out with nothing & still have most of it left
Replied by zukebob on topic Suspension lift
I'm not exactly sure of where you are measuring to. I have attached a picture that shows the dimension Yakusa is describing. It almost sounds as though you don't have the fender flares. When I was modifying my suspension I went to a dealership and took measurements which were nearly identical to what Scimike listed.
I guess my question is what are you trying to figure out? You were questioning stock suspension dimensions and mention 265/70r15 tires. Are you trying to determine if you can go to stock suspension with that tire size?
I guess my question is what are you trying to figure out? You were questioning stock suspension dimensions and mention 265/70r15 tires. Are you trying to determine if you can go to stock suspension with that tire size?
I started out with nothing & still have most of it left
Last edit: 09 Jan 2023 13:18 by zukebob.
Please Log in or Create an account to join the conversation.
09 Jan 2023 13:38 #246778
by radlom
Replied by radlom on topic Suspension lift

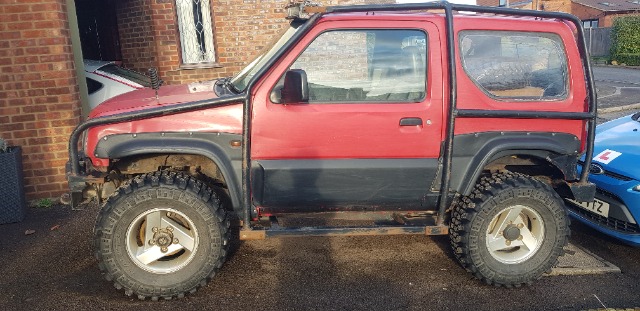

I meassured to the inside top of the wing, which is higher than what your photo shows. Shouldn't have mentioned the tire size as it's not relevant to my question. I'm trying to figure out how much the car is lifted so then I know what bits to change to bring the geometry back to where it should be. From what I see they only fitted longer brake lines and everything else apart from the shocks and springs is standard. As it is steering wheel is angled with the wheels straight and feels light when you drive. I've attached a photo of the car.
