LED bar/spot wiring?

Has anyone wired in some spot lights/LED bar on a 4th gen? Pref RHD vehicle.

Any tips getting the wires through the bulkhead? I’ve had a look but undecided. I have switch to go in the group of switches on the right of the steering wheel, where the headlight washer switch is.

I’d also like to wire into the main beam loom. Anyone know what colour wire and plug it is for the factory LED headlights? Thanks.

I have wired in my KC's with a switch where you are meaning. I think I just went through the grommet in the bulkhead, but can double check tomorrow when I get home and take a picture.

Just realised it's after midnight, so when I get home later today

Just to make sure I understand, are you planning to control your light bar/spots with the high beam switch with the switch you are installing acting as an isolator switch?

wrote:

I have wired in my KC's with a switch where you are meaning. I think I just went through the grommet in the bulkhead, but can double check tomorrow when I get home and take a picture.

Just realised it's after midnight, so when I get home later today

Thanks that would be great. There is a small grommet up high on the right side of the battery with a single wire going through. But I can’t see it under the dash from the footwell.

There is a very large soft rubber grommet/boot with something that looks more akin to the main loom, behind and down on the left side of the battery. Access with the battery in place isn’t great. But I think I’d have to puncture/split this to get any wires through.

wrote:

Just to make sure I understand, are you planning to control your light bar/spots with the high beam switch with the switch you are installing acting as an isolator switch?

That was my initial idea. I might still do this.

However I went out last night to set the light angle and give it a try out and I think I’ll just wire it into the switch for on/off. The loom I used has a switch already, but I’d swap it for the factory look once I get the wires through the bulk head.

To test it I just ran the wire out the bonnet and through the drivers window.


With the auto headlights I don’t need to manually control mainbeam. I hadn’t considered this. But in hind sight. I think I’d leave the LED bar out of the mainbeam circuit now and just manually control it like you with main beam normally. I won’t always need to use it. But it will be quick and easy to turn on and off.

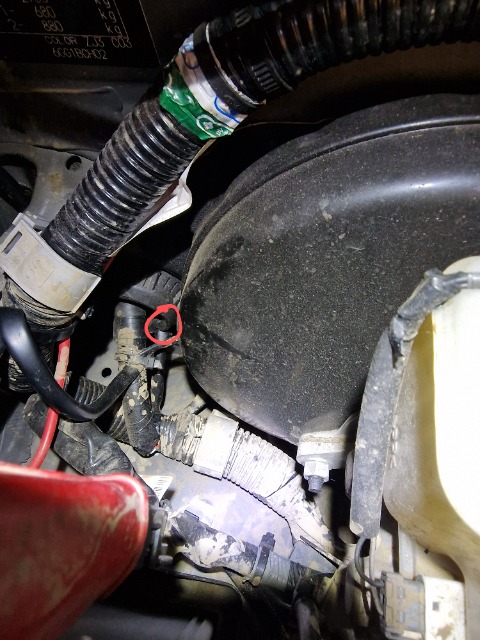

I'd not even spotted that little grommet up near the top.

I poked mine through here and cable tied it to the main loom with a drip loop to allow any water to run away from the grommet.

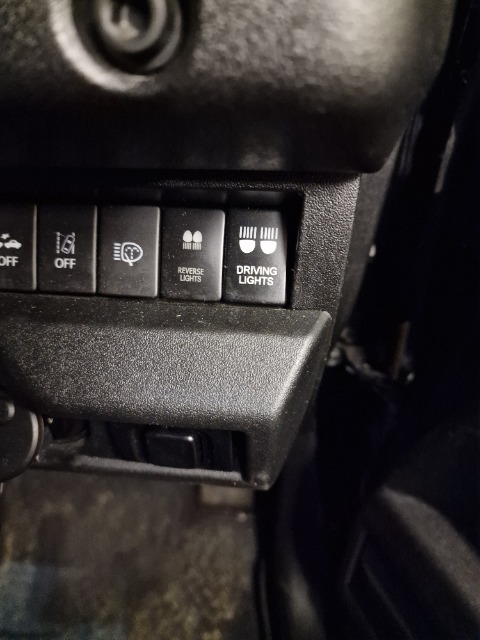

And this is the switch.


I have put several extra wires through the main grommet by taping the wire on to the end of a small cross-hatch screw-driver or knitting needle and a cable just pushes through next to the main loom, no need to cut another hole.

If you are running thick cables, put a thin one through first and use it as a draw cord. If you use a red wire, it is easy to see, especially if access is difficult.

Robin

Thanks. Actually got the wiring completed yesterday.

Removed the 12v for access and cut the tape off of that large grommet. The tape is very sticky and the rubber very soft. I did slightly cut part of the flange of the grommet while trying to get the tape off. But it hasn’t caused any issues.

Got the switch wired in. I didn’t bother with the lighting circuit as that meant finding another wire splicing into it. Also it is rather annoying that despite the switch matching the factory style. It lights up blue rather than orange!
