Camshaft position sensor location
- AH1992
- Topic Author
- New Member
-
Public
15 Mar 2020 22:41 #219902
by AH1992
Camshaft position sensor location was created by AH1992
Hi, I am trying to locate the cam position sensor on, if there is one fitted, on my daughters Jimny, M13 VVT DOHC engine.
I can find the crank sensor below the alternator OK but there is no cam sensor fitted at the front of the engine as I have seen on various photos.
There doesn't appear to be one fitted at the rear either, so I wonder does this variant have one?. Any guidance appreciated.
I can find the crank sensor below the alternator OK but there is no cam sensor fitted at the front of the engine as I have seen on various photos.
There doesn't appear to be one fitted at the rear either, so I wonder does this variant have one?. Any guidance appreciated.
Please Log in or Create an account to join the conversation.
- CC Baxter
- New Member
-
Public
- CC Baxter
- New Member
-
Public
- CC Baxter
- New Member
-
Public
17 Mar 2020 09:36 #219974
by CC Baxter
Replied by CC Baxter on topic Camshaft position sensor location

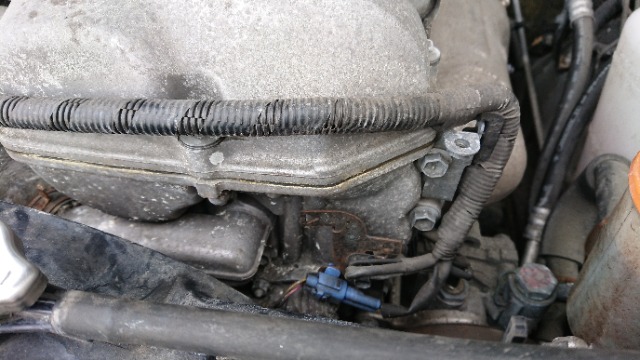

Thanks Kirkynut, here's a picture of my '08 VVT (looks the same as the one at the top of the thread). Any help welcomed. Chris
Please Log in or Create an account to join the conversation.
17 Mar 2020 09:46 #219975
by facade
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
Replied by facade on topic Camshaft position sensor location
The VVT moved it to the back of the engine on the inlet cam (because the phaser is at the front) so the sensor is at the back on the inlet side, I think it is on the underside of the cam, forwards of the EGR valve. Left side if you are at the radiator looking towards the windscreen.
If it suddenly breaks, go back to the last thing that you did before it broke and start looking there
