Are you building a Mud Monster or a Pavement Princess??
If so you can have your own thread in this section.
This section on other websites has led to arguments and contention. People are posting pictures of their pride and joy and therefore CONSTRUCTIVE comments only please!

Some Jimny pics.

  • Dave cc
  • Visitor
  • Visitor
    Public
21 Mar 2014 23:06 #109458 by Dave cc
Replied by Dave cc on topic Some Jimny pics.

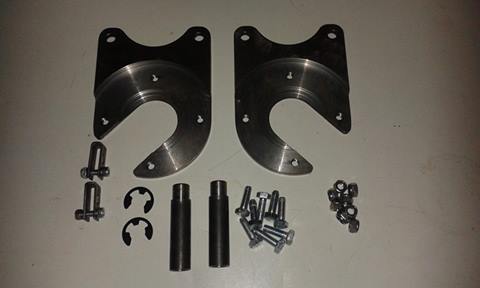

Dont take this the wrong way but what a ball ache fitting that lot i fitted one of my kits last nite had all the hard wear less the pipes done in 2 hours and that included plama cutting the back plates off


Attachments:

Please Log in or Create an account to join the conversation.

  • Old Blind Dog
  • Topic Author
  • Visitor
  • Visitor
    Public
22 Mar 2014 06:49 #109464 by Old Blind Dog
Replied by Old Blind Dog on topic Some Jimny pics.
Yes, looks quite nice. But I don't have any milling machine nearby... And the main idea was to add outer seal, not just brakes. Running all day long half sink in a swamp is a usual thing here, so I have to do something to protect the rear bearings.

Please Log in or Create an account to join the conversation.

More
22 Mar 2014 14:54 #109512 by Rhinoman
Replied by Rhinoman on topic Some Jimny pics.
I like that and the seals are a very good idea.
Some Suzukis and a bunch of motorcycles.

Please Log in or Create an account to join the conversation.

  • Kieran678
  • Visitor
  • Visitor
    Public
22 Mar 2014 19:13 - 10 Apr 2014 16:17 #109550 by Kieran678
Replied by Kieran678 on topic Some Jimny pics.

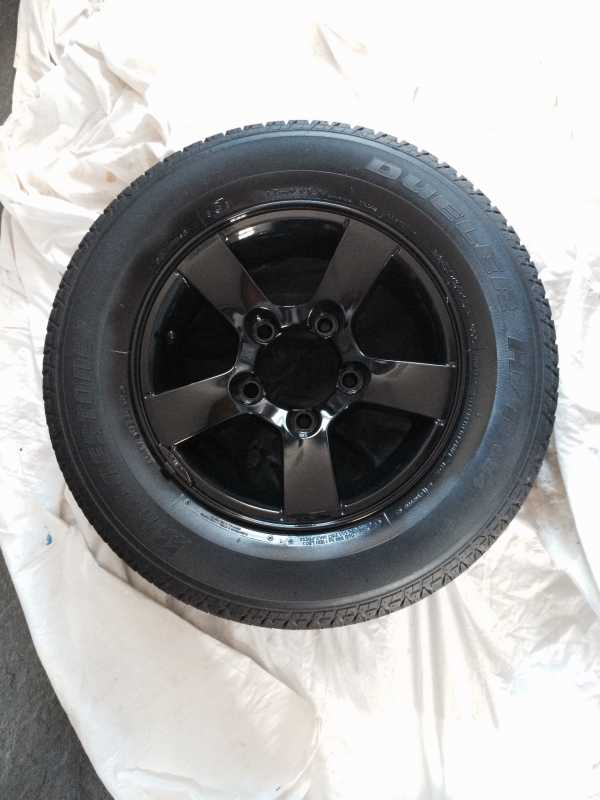

I'm Kieran, 17 and this is my 55 vvts Jimny. Currently painting the alloys black and the front suzuki badge has now been blacked out. K&N air filter fitted. Not a bad first car eh? :)






[IMG
[IMG
[IMG
Attachments:
Last edit: 10 Apr 2014 16:17 by Kieran678.

Please Log in or Create an account to join the conversation.

  • Old Blind Dog
  • Topic Author
  • Visitor
  • Visitor
    Public
09 Apr 2014 21:58 #111777 by Old Blind Dog
Replied by Old Blind Dog on topic Some Jimny pics.
Got my M13A overheated. So, as Japan not so far away...

[img


[img


[img


Then I burned my old clutch in about 500 meters run with M18A... :laugh:
Next night replaced with ceramic one. Now runs quite nice.

Please Log in or Create an account to join the conversation.

  • Jimny_Aus
  • Visitor
  • Visitor
    Public
10 Apr 2014 00:14 #111783 by Jimny_Aus
Replied by Jimny_Aus on topic Some Jimny pics.
seems a very popular option..... wish i had a couple hundred laying around :unsure:

Please Log in or Create an account to join the conversation.

  • the_goshawker
  • Visitor
  • Visitor
    Public
20 Oct 2014 22:53 #127051 by the_goshawker
Replied by the_goshawker on topic Some Jimny pics.
Im in love with your silver jimny, i look forward to more pictures :)

Please Log in or Create an account to join the conversation.

  • ME13OSE
  • Visitor
  • Visitor
    Public
21 Oct 2014 14:07 #127087 by ME13OSE
Replied by ME13OSE on topic Re:Some Jimny pics.

Old Blind Dog wrote: I'd better tell you the part numbers.
Front coils - С4Н-10112HD
Rear - C4H-10112
Front shocks - 553158
Rear - 553111 and you've got to do something with metall bushings. For example, replace whem with ones of your stock rear shocks.

That'll give you about 80-90 mm of lift.


Sorry to open this back up after all this time but the C4H-10112HD won't match with any part numbers here in the uk. Would you know the year and engine size of CRV these are from and also whether they're front or rear fitment? Thanks.

Please Log in or Create an account to join the conversation.

  • Old Blind Dog
  • Topic Author
  • Visitor
  • Visitor
    Public
15 Dec 2014 21:41 #132424 by Old Blind Dog
Replied by Old Blind Dog on topic Re:Some Jimny pics.
It's 96 year. Don't know about the engine though...

Please Log in or Create an account to join the conversation.

  • Old Blind Dog
  • Topic Author
  • Visitor
  • Visitor
    Public
15 Dec 2014 22:07 - 15 Dec 2014 22:34 #132425 by Old Blind Dog
Replied by Old Blind Dog on topic Re:Some Jimny pics.
After four blown 6.5 tcases this year, made some kind of replica to LROR case bracket. Add fourth mount point and the collar. Seems, it's good idea to make some series production.

[img


After some minor changes to those disk brake plates put double row bearings in rear.

[img


Removed tension roller.

[img
Last edit: 15 Dec 2014 22:34 by Old Blind Dog.

Please Log in or Create an account to join the conversation.

  • OllieNZ
  • Visitor
  • Visitor
    Public
10 May 2015 15:30 #143987 by OllieNZ
Replied by OllieNZ on topic Re:Some Jimny pics.
I've been looking into the crv springs and it would seem the two part numbers you have given are alternates for the same part? Does this not cause the rear of the jimny to sit higher than the front?

Please Log in or Create an account to join the conversation.

  • OllieNZ
  • Visitor
  • Visitor
    Public
10 May 2015 16:44 #143997 by OllieNZ
Replied by OllieNZ on topic Re:Some Jimny pics.
Also are the shock part numbers for kyb?

Please Log in or Create an account to join the conversation.
