Re:Gear shift control shaft rear seal Part # 25517-80F00

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 13:21 - 27 May 2020 13:23 #222875 by Jim Jim
Good Day Mates,

I decided to change every seal I possibly can on the gear box as its out. I cannot get this seal locally, Gear shift control shaft rear seal Part # 25517-80F00.

I did an online search and found it on this website shop.marksman-ind.com/25517-80f00-equiva...uki-seal-41471-p.asp

I called the number a few times but there is no answer. I would like to purchase it and ship it express to Barbados.

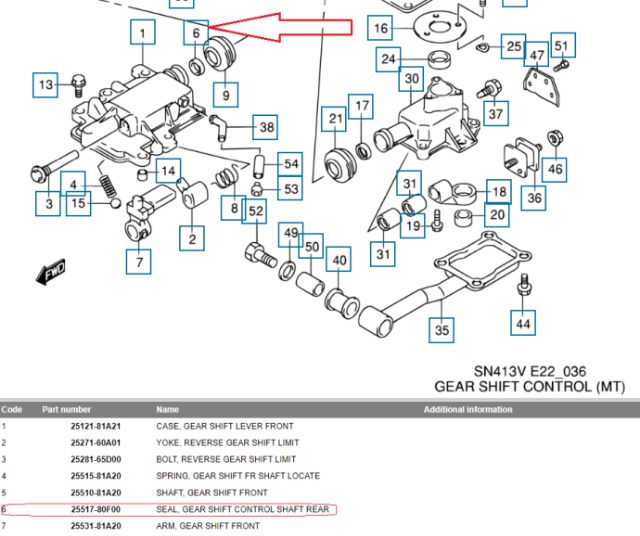

Can anyone help with this please? Its part #6 in the attached diagram.

Thanks and have a great day.



.

Cheers.
Last edit: 27 May 2020 13:23 by Jim Jim.

Please Log in or Create an account to join the conversation.

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 13:37 #222879 by Jim Jim
Mark could be working remotely, sent him an email, but if anyone can help to locate the seal, please let me know.

Thanks again.

Cheers.

Please Log in or Create an account to join the conversation.

More
27 May 2020 13:48 - 27 May 2020 13:51 #222882 by mlines
I have "Part 17" and "Part 6" in stock, but its not the number you give.

Part 17 or 6 are 09283-14006 - REAR OIL SEAL.

You can find it here www.bigjimny.com/store/gearbox-remote-seal.html

Martin

2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
Last edit: 27 May 2020 13:51 by mlines.

Please Log in or Create an account to join the conversation.

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 14:26 #222884 by Jim Jim
Thanks for the reply Martin. Using my VIN it shows up on the Suzuki Diagram as Part # 25517-80F00

I have attached a bigger diagram for you to see 6 and 17. I had ordered a complete kit from these guys, but the seal the sent 09283-14005 which is a bigger seal.

The one from my gear box measures 20mm outer dia and close to 15mm inner dia. It does not look like the one on your website Martin. Mine has a brass bushing with a seal as one piece.

Thanks so much for your help Martin. If you stock and can get parts to us, I can have you be our supplier.

Thanks again Mate.

Please Log in or Create an account to join the conversation.

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 14:28 - 27 May 2020 14:30 #222885 by Jim Jim
My Jimny is a 1998 by the way, sent you my chassis number by PM>

Thanks Martin.
Last edit: 27 May 2020 14:30 by Jim Jim.

Please Log in or Create an account to join the conversation.

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 14:38 #222886 by Jim Jim
Martin, on this site it corresponds to the part number I have too.

suzuki.7zap.com/en/jimny/51362-2001/128182-0-0/0360-0-0-0/

Please Log in or Create an account to join the conversation.

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 14:44 - 27 May 2020 14:45 #222887 by Jim Jim
Here is the assembly the seal came from.

,

and the complete seal/bushing kit I ordered which has the larger 09283-14005 seals.

.
Last edit: 27 May 2020 14:45 by Jim Jim.

Please Log in or Create an account to join the conversation.

More
27 May 2020 14:50 - 27 May 2020 14:55 #222888 by mlines
Edited.

I see yours is 20mm and mine is 22mm (my eyesight failed me)

Anyway I have lodged a technical query on your part number.


Martin

2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
Last edit: 27 May 2020 14:55 by mlines.

Please Log in or Create an account to join the conversation.

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 14:59 - 27 May 2020 15:16 #222890 by Jim Jim
Hi Martin, the one I have has a brass bushing, you cant compress the seal longitudinally.

You can see the brass bushing in mine and I don't see it on the one you posted above.

It has to have the bushing since the selector shaft has no other support.

The number on mine is 50 14 20 4.5 -1 the two middle numbers I guess.
denotes the inner and outer diameter.

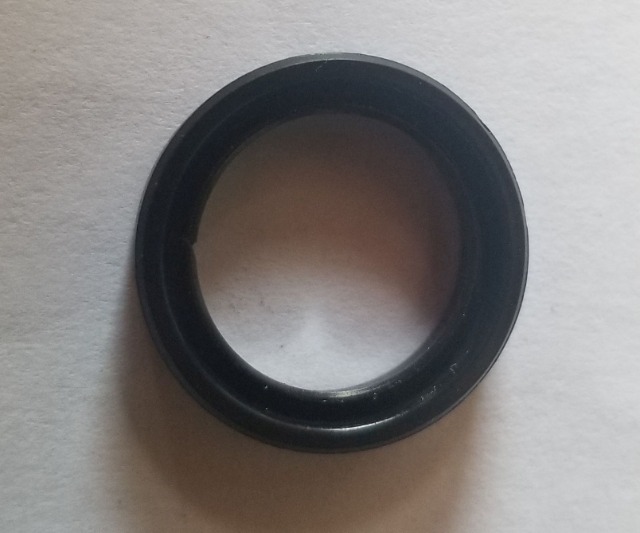

After trying a bit with my phone and angling the seal, I got a great shot of whats stamped on the seal.

.
Last edit: 27 May 2020 15:16 by Jim Jim.

Please Log in or Create an account to join the conversation.

More
27 May 2020 18:08 #222908 by mlines
Hi

The part is £9.50 and is in the European central stores in Germany, I can get it to me in the UK within a week.

It would then need posting on to you, I think I saw you were in Barbados? Postage will be £6.50 on top so £16 in total

Martin

Martin

2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses

Please Log in or Create an account to join the conversation.

  • Jim Jim
  • Topic Author
  • Visitor
  • Visitor
    Public
27 May 2020 19:21 #222909 by Jim Jim
Thanks Martin.

Send me a contact number so I can call you to arrange payments or we can do it online. I have Visa and Paypal too if you would like to go that route.

Thanks.

Please Log in or Create an account to join the conversation.

More
27 May 2020 19:37 #222910 by mlines
PayPal the money to BigJimny@lines-family.com and message me the delivery address

Martin

Sent from my Pixel 2 XL using Tapatalk

Martin

2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses

Please Log in or Create an account to join the conversation.
