Introduction









One of the most significant usability weaknesses for all Jimny generations is the lack of cargo space.

The trunk is tiny. But even worse, the trunk has no cover, so anyone can see its contents.


There are several solutions to add more cargo space, "extract" more usable space from the existing one, and to hide cargo from public eyes.


Note Icon.pngThe wiki article "Accessories for Jimny (genuine Suzuki)" contains vast info and details on many OEM Jimny accessories which are meant for cargo expansion and management in the cabin as well as on vehicle's exterior. This article just briefly mentions only a few select specific product examples of those OEM accessories.



Solutions for increasing and managing the cargo space









  1. Transversely mounted roof rails;
    • OEM and the aftermarket offer several suitable accessory products;
  2. Roof mounted plastic box;
    • OEM and the aftermarket offer several suitable accessory products;
  3. Roof mounted metal basket;
    • OEM and the aftermarket offer several suitable accessory products;
  4. Tow bar mounted box;
    • The aftermarket offers several suitable accessory products;
    • A DIY solution is also easily achievable;
  5. Suitably sized hard-case box in the trunk, with sectioned chambers in the box (similarly like a toolbox);
    • The aftermarket offers several suitable accessory products;
    • A DIY solution is also easily achievable;
  6. Flexible (nylon) rear cargo tray over the folded rear seats;
    • Suitable Jimny 3 OEM accessory P.N.: 990E0-84A14-000;
      • This one should fit other Jimny generations fine as well, since it is quite flexible;
    • The aftermarket also offers several more or less suitable accessory products;
  7. Hard plastic rear cargo stepped tray over the folded rear seats;
    • Suitable Jimny 3 OEM accessory P.N. for Jimnys 3 type 1-4 (approx up to 2005): 00800-107817;
    • Suitable Jimny 3 OEM accessory P.N. for Jimnys 3 type 5-12 (approx 2005-2018): 990E0-81A01-000;
  8. Hard plastic rear cargo flat tray set over the folded rear seats;
    • Suitable Jimny 3 OEM accessory P.N.: 990E0-84A30-SET;
  9. "Cargo area divider" steel grid, which installs vertically behind the rear seats and prevents rear cargo from interfering with the front cabin area;
    • Suitable Jimny 3 OEM accessory P.N.: 00800-41268-GIT;
  10. Trunk cargo restraining net (to prevent the cargo from falling out of the trunk when the rear door is opened)
    • Suitable Jimny 3 OEM accessory P.N.: 99000-99025-63W;
      • This one might fit other Jimny generations fine as well - someone needs to try!
    • The aftermarket also offers several more or less suitable accessory products;
  11. Center arm rest (between the front seats) with integrated storage compartment;
    • Suitable Jimny 3 OEM accessory P.N.: 99000-990YC-583;
    • The aftermarket also offers several more or less suitable accessory products;
  12. Waterproof seat cover for the front passenger seat;
    • Suitable Jimny 3 OEM accessory P.N.: 99000-99034-E69;
    • The aftermarket also offers several more or less suitable accessory products;
  13. Waterproof blanket for the rear seats;
    • Suitable Jimny 3 OEM accessory P.N.: 990E0-79J44-000;
      • This one should fit other Jimny generations fine as well, since it is quite flexible;
    • The aftermarket also offers several more or less suitable accessory products;
  14. Waterproof bag for storing wet umbrellas and other wet objects in the vehicle;
    • Suitable Jimny 3 OEM accessory P.N.: 990F0-MLUB2-000;
      • This one should fit other Jimny generations fine as well, since it is just a bag;
    • The aftermarket also offers several more or less suitable accessory products;
  15. Front seat hanger for clothes (hangs on the rear side of a front seat);
    • Suitable Jimny 3 OEM accessory P.N.: 990E0-79J89-000;
      • This one should fit other Jimny generations fine as well, since it is just a cloth hanger for a car seat;
    • The aftermarket also offers several more or less suitable accessory products;
  16. Portable 12 V DC powered in-car refridgerator for the placement on the rear seats;
    • Suitable Jimny 2/3/4 OEM accessory P.N.: 990E0-64J30-000 (15 liters);
    • Suitable Jimny 2/3/4 OEM accessory P.N.: 990E0-64J23-000 (21 liters, with ISOFIX attachment);
    • The aftermarket also offers several more or less suitable accessory products;
    • Beware that a refridgerator on a rear seat is easily visible form the outside and that it can therefore be a tempting object of theft;
  17. Child seat for the placement on the rear seats;
    • Suitable Jimny 2/3/4 OEM accessory P.N.: 990E0-59J37-000 (for children up to 13 kg or up to age of 18 months, ECE R 44/04);
    • Suitable Jimny 2/3/4 OEM accessory P.N.: 990E0-59J25-000 (for children between 15 kg and 36 kg, ECE R 44/04);
    • Suitable Jimny 2/3/4 OEM accessory P.N.: 990E0-59J25-001 (for children between 15 kg and 36 kg, ECE R 44/04);
    • Suitable Jimny 2/3/4 OEM accessory P.N.: 99000-990YA-020 (for children from 9kg to 18 kg and from 8 months to 4 years of age, ECR 44/04);
    • The aftermarket also offers several more or less suitable accessory products;
  18. Storage box for sun glasses in place of non-existent driver's hand grab handle above driver's side window;


Comments on some solutions:

  • Solution #1 is also the prerequisite for solution #2, and sometimes also for solution #3.
  • Solution #3 is the traditional solution for expedition and overlanding trips. It provides the most flexibility but no privacy for the cargo.
  • Solution #4 might not be legal, or might require the use of additional license plate and brake + turn lights.


Solutions for hiding the cargo









  1. Sun shade plates for the rear window and side rear windows;
    • Suitable Jimny 3 OEM accessory P.N.: 990E0-81A00-000;
    • The aftermarket also offers several more or less suitable accessory products;
  2. Aftermarked-made tint foils on rear windows and on side rear windows;
    • Caution: might not be legal, depending on local legislation;
  3. Put the cargo in a roof box;
  4. Put the cargo in a tow bar mounted box;
  5. Put a blanket over the cargo in the trunk (could be counter-intuitive!);
  6. Make a DIY trunk cover behind the top of the rear seats;


Comments on some solutions for hiding the cargo:

  • Solution #1 might not totally obscure the vision from the outside towards the inside, depending on lightning conditions on the location.
  • Solution #3 provides the best concealment, but can be quite awkward (roof box is very high up, also the need to operate it separately from the car's locks, etc.).
  • Solution #5 might even entice additional curiosity from the viewer.
  • Solution #6 requires some ingenuity to modify an OEM trunk cover from some other vehicle, or to custom-make it from scratch.
    • One person allegedly had good success modifying Ford Ka's OEM trunk cover to suit a Jimny 3.
    • Another DIY solution from scratch is vividly described in this forum topic.

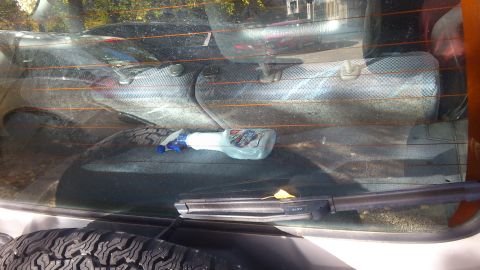

Ford Ka's original boot / trunk cover, fitted in a Jimny 3, allegedly with minimal alterations.


Roof rails/racks

  • A pair of transversely mounted roof racks (rails) provides a very practical platform for carrying bulky cargo (furniture, planks, bars, pipes, funeral caskets, big guns, etc.).
  • Such roof rails are also a prerequisite for mounting roof boxes, some roof baskets, ski carriers, bicycle carriers, etc.


On Jimny 3

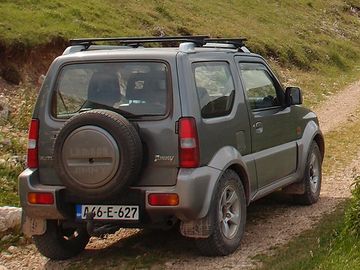

  • For Jimny 3, most OEM and aftermarket-made, Jimny-compatible transverse roof rail models mount on Jimny 3's longitudinal factory roof rails.
  • However, all "cabrio" Jimnys 3, as well as some (mostly low-end) "closed cabin" Jimnys 3, don't have those longitudinal rails.
    • There are no known aftermarket-made transverse roof rails for such Jimnys.
    • Therefore, if you have a "cabrio" Jimny 3, or a closed-cabin Jimny 3 without factory longitudinal roof rails, you most probably can not mount roof rails nor a roof box (unless you install some DIY rails).




Note Icon.pngTo all the cabrio owners: Things can rarely be sexy and useful at the same time!


Note Icon.pngIf you have a closed cabin ("tin-top") Jimny 3 without longitudinal rails, you might be able to transplant the rails from another dead Jimny from a vehicle junkyard (this has not been tried yet). This is certainly not possible on cabrio Jimnys 3, even with the hard top.



On Jimny 4



Info missing ..


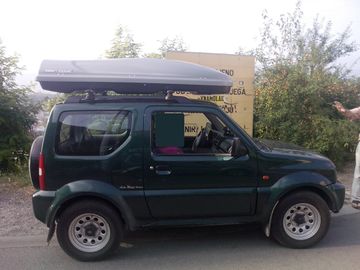

Roof boxes









Prerequisites

  • The prerequisite for mounting any roof box is having a pair of transversely mounted roof racks (rails).
  • See the corresponding chapter for details about roof rails.


Advantages of using a roof box

  • Roof box provides a significant expansion of the cargo space in (on) a Jimny.
    • For example, Jimny 3's boot volume is around 110 litres, while the volume of Thule's "200 / M" size-class roof boxes is around 400 liters.
  • The content of a roof box is invisible when the roof box is closed, providing much needed privacy for the cargo, which the trunk of any Jimny generation does not provide.
  • Larger roof boxes can contain relatively large or long items, which are difficult to fit in Jimny's rear. Examples: skis, planks, bars, shovels, baby carriages, chainsaws, oversized dildos, machine guns ...
  • If the roof box is painted in some light color, its contents will not warm up as much as the interior of the vehicle on a sunny day. This can be quite convenient for some items.
  • The use of a roof box should be legal in all countries of the world without any additional certifications or paperwork.


Disadvantages of using a roof box

  • The roof of all Jimny generations is rather tall, so access to the roof box is rather complicated and difficult. To access the roof box, it is usually necessary to either stand on the side door sill or (more often) on the rear wheel. While standing so, you will have to use one arm to hold yourself to vehicle's longitudinal roof rail, and only the remaining arm to work on the cargo. Also, it is sometimes difficult to put the foot between the rear wheel and the wheel arch due to the lack of space (undulated ground or loaded vehicle).
  • Because the roof box is on a rather tall position, putting heavy or oversized items in/out of the roof box can be a challenge and might even require collaboration of two persons (or one strong man and a nagging wife).
  • Every Jimny generation is a narrow, tall vehicle, which wobbles around. A roof box raises the center of gravity, thus further worsening this ratio. This is not really noticeable when the roof box is empty, but it certainly is when it is full of heavy items.
  • Maximum load of most roof boxes is only 50 kg. Some better models can handle up to 75 kg. However, putting more than 50 kg on the roof of any Jimny generation might not be a good idea anyway.


  • Every Jimny generation is significantly over two meters tall with the roof box on.
  • This restricts access to many garages and closed spaces.
  • You must be careful not to hit a ceiling when entering closed garages in shopping centers etc.!
  • Lots of people have destroyed their roof boxes on the very first day of owning them, by not thinking about this!
  • Also warn your mechanic about the height, so he does not hit a ceiling when lifting the car in a service garage.
  • If you have your own garage for parking your Jimny, then having a roof box might not be an option at all, depending on the height of the ceiling in the garage.


Roof boxes off road

  • You can regularly go off road with the roof box on, just bear in mind that your center of gravity is higher with the roof box on (especially with cargo in it).
  • It is important that the box is of high quality so that it can withstand vibration abuse when driving on gravel and off road.
  • When driving through very overgrown tracks in forests, the roof box might collide with low branches. This requires extra caution not to hit thick / strong branches, which have to be cut off before passing.


User experiences

  • Forum user Bosanek used Thule "100" ("S") and "200" ("M") size roof boxes on his Jimny 3.
  • There are other quality roof box manufacturers of course, and other readers are welcome to write about their own experiences here.


  • Thule boxes have several models, but their sizing ranges are approximately standardized across the model range.


  • The smallest Thule roof box size range used to be "80", but it has been discounted in most markets;

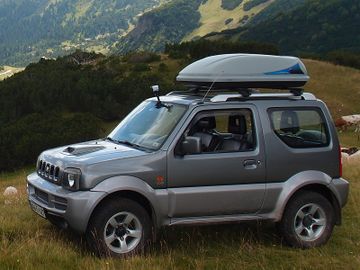

  • Example is roof box model "Thule Ocean 80", with volume of 320 l and dimensions (L x W x H) 133 x 86 x 37 [cm];
  • Such roof boxes can still probably be found on the second hand market.


  • Their smallest current roof box size is called "100" / "S" (depending on the market);
  • Size 100 / S main data: approximate volume 330-370 l (depending on roof box design), approximate dimensions (L x W x H) 140 x 90 x 40 [cm];
  • Examples of Thule roof boxes in size 100 / S: Polar 100, Ocean 100, Pacific 100, Touring 100, Touring S, Motion S, etc.;



  • The next larger Thule roof box size is called "200" / "M" (depending on the market);
  • Size 200 / M main data: approximate volume 410-460 l (depending on roof box design), approximate dimensions (L x W x H) 175 x 82 x 45 [cm];
  • Examples of Thule roof boxes in this size 200 / M: Polar 200, Ocean 200, Atlantis 200, Pacific 200, Touring 200, Touring M, Motion M, etc.;



  • The next larger Thule roof box size is called "780" / "L" (depending on the market);
  • Size 780 / L main data: approximate volume 420-480 l (depending on roof box design), approximate dimensions (L x W x H) 197 x 78 x 43 [cm];
  • Examples of Thule roof boxes in this size 780 / L: Atlantis 780, Ocean 780, Pacific 780, Pacific L, Touring L, etc.;


Usability experiences:

  • Size 80 is a bit too small, but fits quite nicely nonetheless.
  • Sizes 100 / S and 200 / M fit great and look great too.
  • Size 780 / L also fits, but looks just a bit bulky (pictures needed!).
  • Anything larger than that looks like a boat on the roof.



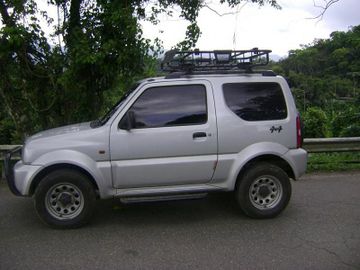

Roof baskets









  • Roof baskets provide the most versatility and the best utility value.
  • Apart for being able to store various items "inside" them (just like in a roof box), you can also attach various items to their sides, like shovels, tools, flags, rain collectors, radars ...
  • However, all items have to be secured / strapped well and insulated from adverse weather.
  • Roof baskets are best suited for remote overland expeditions where population is scarce and you never move far away from the car - another person (or a monkey) can easily mess with the cargo on the roof!


  • The prerequisite for mounting some roof baskets (depending on the model) is having a pair of transversely mounted roof racks (rails).
  • See the corresponding chapter for details about roof rails.
  • Some roof baskets bolt directly onto the roof, and therefore usually require prior removal of factory fitted longitudinal roof rails.

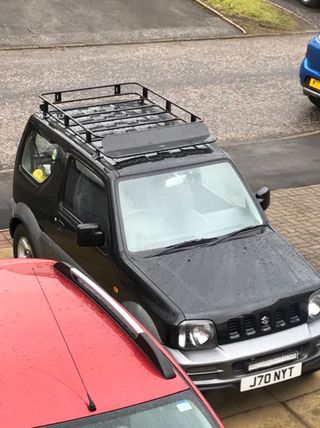

Suzuki Jimny 3 - with roof basket JimnyBits jroofrack



Tow bar mounted boxes









If you are desperate for having additional cargo space in a Jimny (and who isn't!?), you might also consider using a tow bar mounted cargo box.


An example of a tow bar mounted cargo box is "Thule BackUp 900". That one can even be combined with some of their platform mounted tow bar bicycle carriers.


Specially designed tow bar mounted cargo boxes with ventilation openings are used by some hunters to transport hunting dogs.


An example of a custom-made tow bar mounted dog box on a Jimny 3:

Suzuki Jimny with towbar mounted cargo box - A03.jpg


That dog box on the pictures with a black Jimny 3 is additionally secured to the car by a pair of straps linking it with the rim of the spare tyre. That reduces the vibrations inside the box during driving. Alternatively, the securing straps could be designed to attach to each side of the rear doors, in a similar manner like this Italian bicycle carrier uses them.


Note Icon.pngRead the wiki article "Tow bar" for details on installing a tow bar (if you don't have it) and using the existing one.



Beware that a tow bar mounted cargo box will block the rear door, so you can not open the rear door while the box is mounted. You can not open the door even if the box is a tiltable design, because no matter how much you tilt it away, it won't provide more than a couple of inches of space to open the door. The spare tyre is the main cause of the lack of maneuverability.


Hard-case box(es) in the trunk









Here are a few examples of hard-case boxes in the bottom of the trunk.

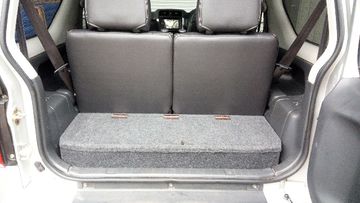

Jimny 3 - Example 1

  • This DIY solution has been made by forum user Hun.



  • This is a wooden box with some upholstery glued on it and with metal hinges on the top cover.
  • The height of the box is such that it is level with the rear seats when they are folded down, forming a neat uniform surface in the rear in that situation.
  • The box is sturdy so it can hold significant weight on top of it, "doubling" as a "double floor" as well.
  • Additionally, the box has no bottom.
    • This means that you can remove the factory fake trunk bottom, to join the space in the DIY box with the space in the recessed floor in the boot (where the vehicle jack is stored) - see picture 3 in the above image gallery.
    • This way, the usability of the space in the DIY box is further enhanced.


Bicycle carriers

Bicycles are also a type of cargo.

However, the topic of choosing and using bicycle carriers is so large that it exists as a separate wiki article called Bicycle carriers.
