Introduction
The axle mounts are a seriously weak point on a Jimny (on gen3 at least) - they are made of very thin metal and are prone to corrosion.
This guide has been written specifically for Jimny gen3. However, since Jimnys gen4 have the same general suspension design, all the main principles shown here are valid for them as well.
Typical Damage
They can wear out in an "oval" fashion that results in a strange "clunk" noise when letting the clutch up.
In the worst case the mount can corrode through and rip away from the axle, this is becoming increasingly common as Jimnys get older.

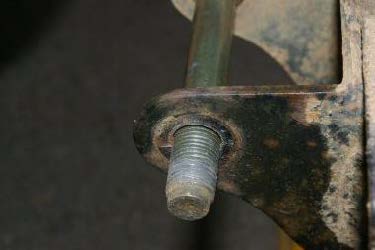

Good Axle Mount

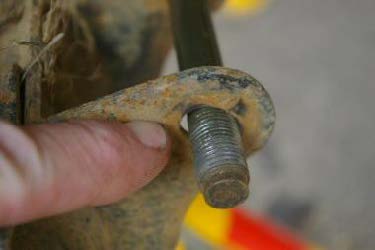

Worn Axle Mount

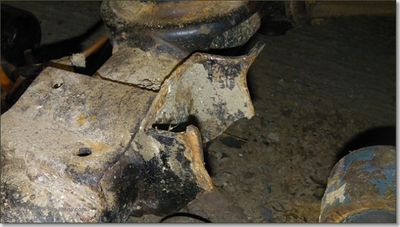

Broken Axle Mount
Wear repair

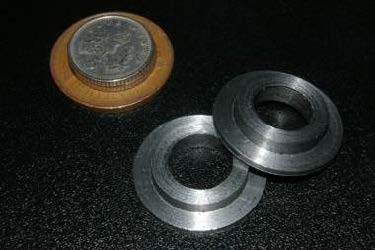

If the holes have worn oval then a welded repair can be carried out by creating some form of repair piece. You could weld strengthening over the hole or, as I do here, create a washer to fix the hole itself. The internet shows a simple steel washer welded over the hole or the creation of a "top hat washer" I had to measure up to make the washers and the picture below shows the finished item and the template I sent to my friendly engineer to make them with. Yes, the template is simply a 2p coin and 2 x 5p coins – they were the correct dimensions for what I needed with a 12mm hole in the middle.
The section on Removing the arm gives the details on disassembly of the arms themselves.
- The trick is to now open out the oval hole in the mounting bracket to the point where the centre part of the washer fits the hole.
- I simply filed out the hole until the washers fitted.

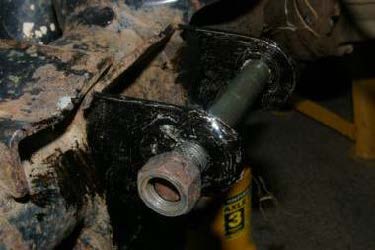

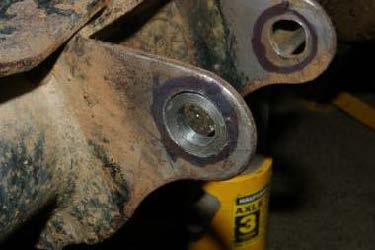

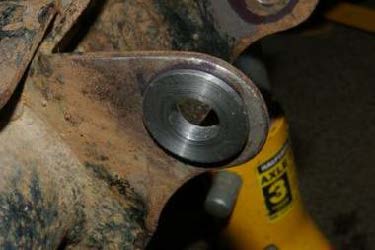

- The first picture shows the washer as it should be fitted, whilst the second picture shows the same washer fitted backwards to show how it fits in the hole.
- I then filed out the other mount so that the other washer fits.
- These arms are made with the adjustment built in.
- Therefore they should be fitted with STANDARD bushes.
- They are typically available for 3 inch or 4 inch lifts.
- Most people feel that 2 inch lifts do not need correction.
- If you are buying aftermarket arms, make sure they provide for vacuum piping, handbrake cables and ABS cables.
Replacement repair

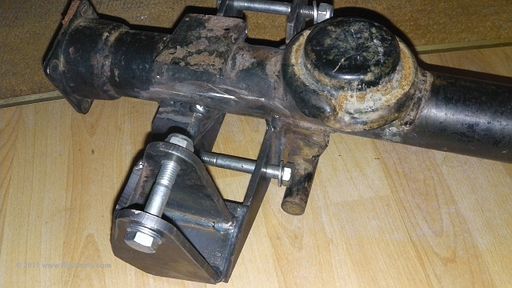

This repairs a failed mount with a specialist part, the installation of which requires a high level of welding skills. I sent mine away to be repaired so all I have is pictures of the finished item. The brackets are made by a number of suppliers for welding on.

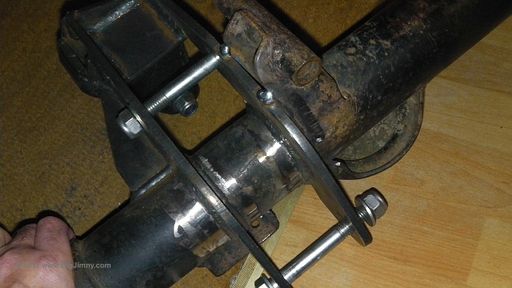

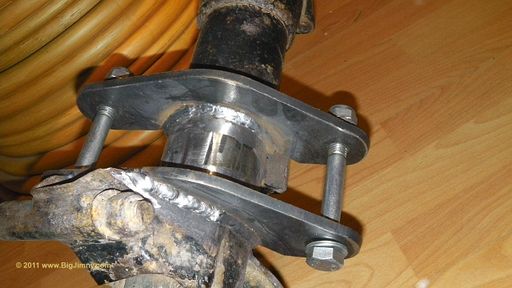

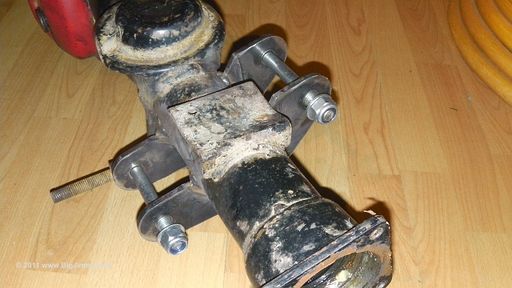

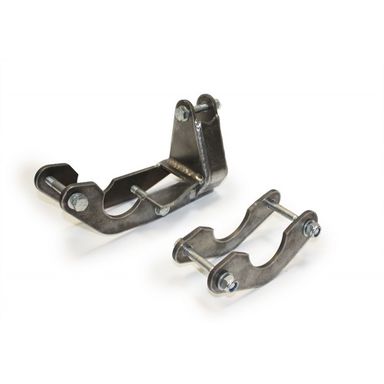

Replacement Axle Brackets
Axle Brackets
Axle Brackets
Axle Brackets
Axle Brackets
Torque Settings
Full details of the torque settings can be found in the reference data
