Transfer chain not fitting low range gears from Trail Gear kit
04 Mar 2025 18:17 #259696
by JimnyCol
Dear friends,
I've already contacted Trail Gear customer service about it, but maybe someone already noticed this in the past, I'm having problems with the transfer kit 304088-3-KIT. I've got a Suzuki Jimny, mechanic/manual transmission, 2017, here in Colombia.
These days the mechanic is mounting the kit: T-Case Gear Set, Chain Drive, Electric/Pushbutton, Jimny, 17% High/87% LowSKU: 304088-3-KITI've bought a new OEM transfer chain, because the old one was already elongated. However, the mechanic is complaining that the chain is not matching the sprockets of the gears in the kit, because they are smaller than the original ones. In the manual Trail-Gear mentions that the chain needs to be changed only in the case of automatic transmission (mine is manual) to a 29225-84A00, I don't know if I need to buy that chain then, is it different from the one I have?Did you fit this kit straight away or did you have to change the chain to a specific one?
Thanks for your help!
I've already contacted Trail Gear customer service about it, but maybe someone already noticed this in the past, I'm having problems with the transfer kit 304088-3-KIT. I've got a Suzuki Jimny, mechanic/manual transmission, 2017, here in Colombia.
These days the mechanic is mounting the kit: T-Case Gear Set, Chain Drive, Electric/Pushbutton, Jimny, 17% High/87% LowSKU: 304088-3-KITI've bought a new OEM transfer chain, because the old one was already elongated. However, the mechanic is complaining that the chain is not matching the sprockets of the gears in the kit, because they are smaller than the original ones. In the manual Trail-Gear mentions that the chain needs to be changed only in the case of automatic transmission (mine is manual) to a 29225-84A00, I don't know if I need to buy that chain then, is it different from the one I have?Did you fit this kit straight away or did you have to change the chain to a specific one?
Thanks for your help!
Please Log in or Create an account to join the conversation.
- jackonlyjack
-
- Offline
- Platinum Member
-
Registered
Less
More
- Posts: 2975
- Thank you received: 669
04 Mar 2025 19:07 #259697
by jackonlyjack
Replied by jackonlyjack on topic Transfer chain not fitting low range gears from Trail Gear kit
Just looked on jimnybits here in the UK
No mention about the chain
Only saying the actual case needs a small amount of grinding to give chain clearance
This should be shown in the install guide
No mention about the chain
Only saying the actual case needs a small amount of grinding to give chain clearance
This should be shown in the install guide
Please Log in or Create an account to join the conversation.

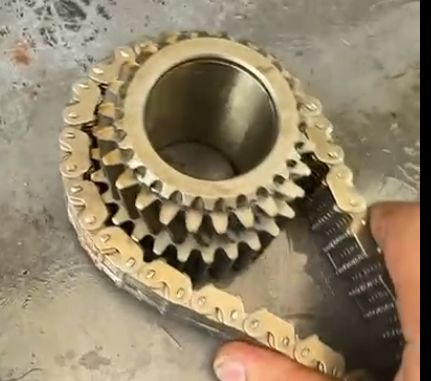

04 Mar 2025 19:19 #259698
by JimnyCol
Replied by JimnyCol on topic Transfer chain not fitting low range gears from Trail Gear kit
Please Log in or Create an account to join the conversation.

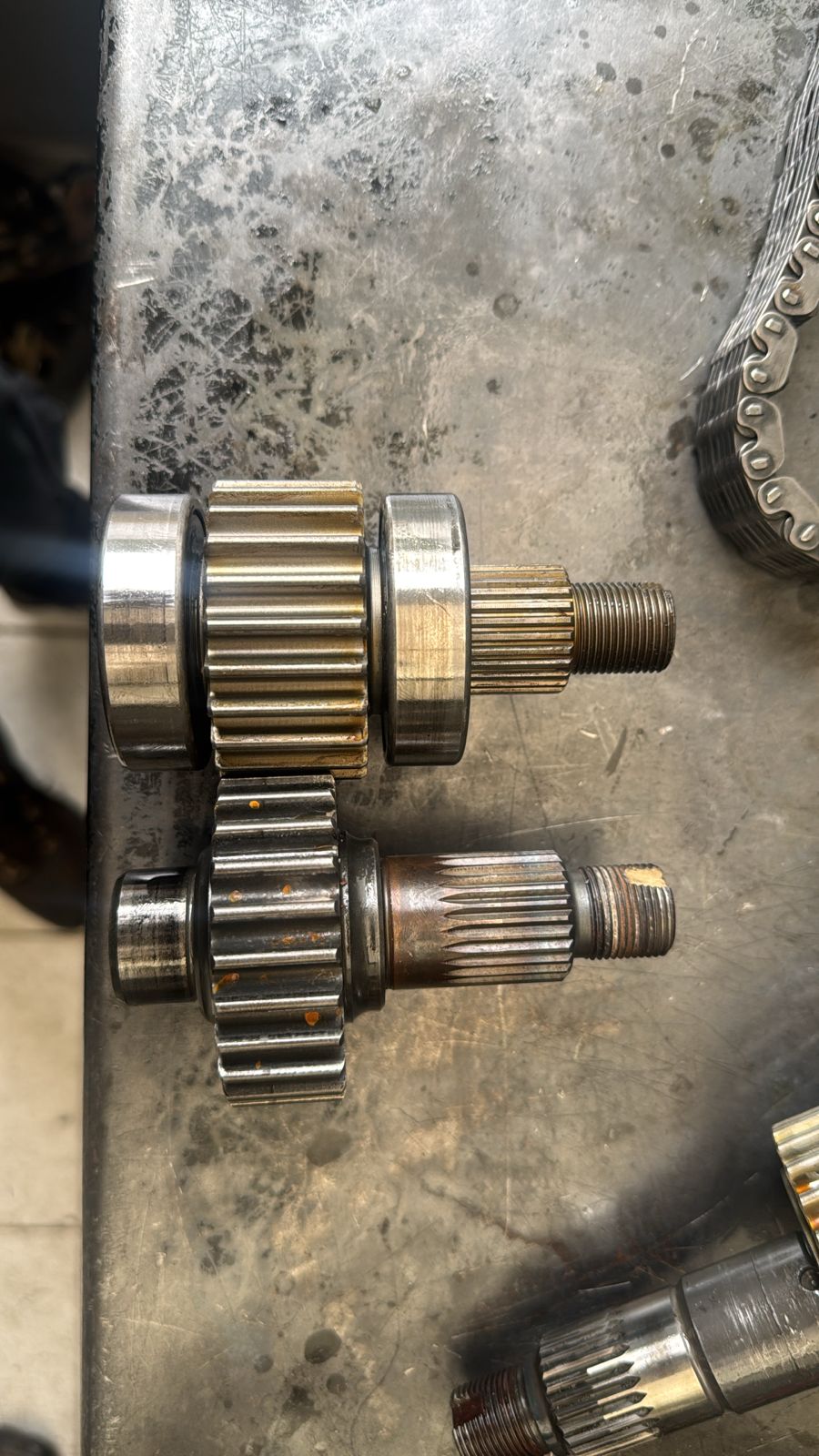

04 Mar 2025 20:58 #259700
by JimnyCol
Replied by JimnyCol on topic Transfer chain not fitting low range gears from Trail Gear kit
Width:
- Chain: 28.25 mm
- Original gears: 23.85 mm
- TG (kit) gears: 30.25 mm
Does anyone here know what's the width of the manual transmission chain?? But I bet my manual jimny has got a manual chain already, so I don't understand which chain do I need...
- Chain: 28.25 mm
- Original gears: 23.85 mm
- TG (kit) gears: 30.25 mm
Does anyone here know what's the width of the manual transmission chain?? But I bet my manual jimny has got a manual chain already, so I don't understand which chain do I need...
Please Log in or Create an account to join the conversation.
06 Mar 2025 10:30 - 07 Mar 2025 05:42 #259709
by yakuza
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Replied by yakuza on topic Transfer chain not fitting low range gears from Trail Gear kit
2922584A00 Genuine Suzuki CHAIN 29225-84A00
Part number for the original push button transfer case Edit: CHAIN for manual gear jimny 2005 and newer above.
I have the same 17/87 trail gear set in my jimny. I reused the original chain that was in my transfer case from new, and after 40000km's it was replaced with a new one, same kind, with part number as above.
All sprockets and gear wheels fit just fine in my case.
as mentioned above I had to grind off a splash rib inside the box as the trail gear manual explaines.
You have clearly the wrong kit for your transfer case. could be a difference in markets what case your car come with, or trail gear has sent the wrong parts.
To me it looks like my parts had the wider variant but I have not measured this as there never was any need to.
Edit 2: You should not try to fit wider sprockets/gears into your transfer case by the way, you will not be able to fit the lid back on.
Edit 3: or if the base of the Gear wheel is excactly as wide as the one you remove it might. But take measurements and check thoruoghly.
- Looks to me like the wider chain is 1 1/4" wide by some listings on line so the one I gave the part number for here is most likely the one that will fit the wider gear wheels in the kit.
I am not able to take measurements of my own wheels now, I am travelling until Sunday / Monday
Part number for the original push button transfer case Edit: CHAIN for manual gear jimny 2005 and newer above.
I have the same 17/87 trail gear set in my jimny. I reused the original chain that was in my transfer case from new, and after 40000km's it was replaced with a new one, same kind, with part number as above.
All sprockets and gear wheels fit just fine in my case.
as mentioned above I had to grind off a splash rib inside the box as the trail gear manual explaines.
You have clearly the wrong kit for your transfer case. could be a difference in markets what case your car come with, or trail gear has sent the wrong parts.
To me it looks like my parts had the wider variant but I have not measured this as there never was any need to.
Edit 2: You should not try to fit wider sprockets/gears into your transfer case by the way, you will not be able to fit the lid back on.
Edit 3: or if the base of the Gear wheel is excactly as wide as the one you remove it might. But take measurements and check thoruoghly.
- Looks to me like the wider chain is 1 1/4" wide by some listings on line so the one I gave the part number for here is most likely the one that will fit the wider gear wheels in the kit.
I am not able to take measurements of my own wheels now, I am travelling until Sunday / Monday
Norway 2005 Jimny M16A VVT, 235 BFG MT, 2" Trailmaster, ARB rear lck, 17%/87% high/low gears.
Last edit: 07 Mar 2025 05:42 by yakuza.
Please Log in or Create an account to join the conversation.
07 Mar 2025 14:35 #259718
by JimnyCol
Replied by JimnyCol on topic Transfer chain not fitting low range gears from Trail Gear kit
Dear yakuza,
I think there won't be problem closing the transfer case, it's the same case for all; but I have to buy a new, different chain, although in the manual was stated that only automatic Jimny owner should buy such chain.
Here is the answer I got from Trail Gear:
" Unfortunately it appears that Suzuki did several different configurations depending on where the model was manufactured. Hey did state that if the stock chain from your vehicle does not fit than you will more than likely need 29225-84A00."
I think there won't be problem closing the transfer case, it's the same case for all; but I have to buy a new, different chain, although in the manual was stated that only automatic Jimny owner should buy such chain.
Here is the answer I got from Trail Gear:
" Unfortunately it appears that Suzuki did several different configurations depending on where the model was manufactured. Hey did state that if the stock chain from your vehicle does not fit than you will more than likely need 29225-84A00."
