Jimny JB43 Connector Pinout
17 Mar 2024 18:50 #255125
by JiMINI
Jimny JB43 Connector Pinout was created by JiMINI
Hey everyone.
2015 Jimny JB43 (with the hood scoop) Automatic LHD.

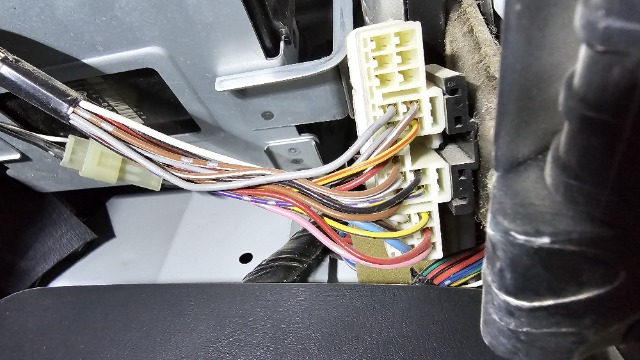

I am trying for a long time now to find the pinout of a specific connector.

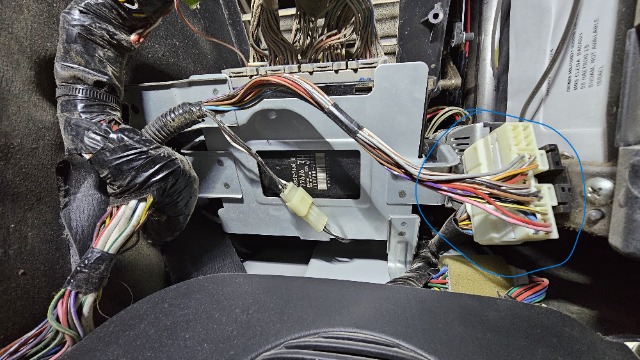

It is located behind the gloves compartment right next to the ECM.
This connector (or at least 1 or2 of its wires) is the in charge of delivering power to the fuel pump.
I want to find the correct wire that is in charge of this.
Would love any help on this as I have searched all over the internet and couldn't find anything.
Please help!!
Thank you!!
2015 Jimny JB43 (with the hood scoop) Automatic LHD.
I am trying for a long time now to find the pinout of a specific connector.
It is located behind the gloves compartment right next to the ECM.
This connector (or at least 1 or2 of its wires) is the in charge of delivering power to the fuel pump.
I want to find the correct wire that is in charge of this.
Would love any help on this as I have searched all over the internet and couldn't find anything.
Please help!!
Thank you!!
Please Log in or Create an account to join the conversation.
18 Mar 2024 05:42 - 18 Mar 2024 05:49 #255131
by Hughes
Replied by Hughes on topic Jimny JB43 Connector Pinout

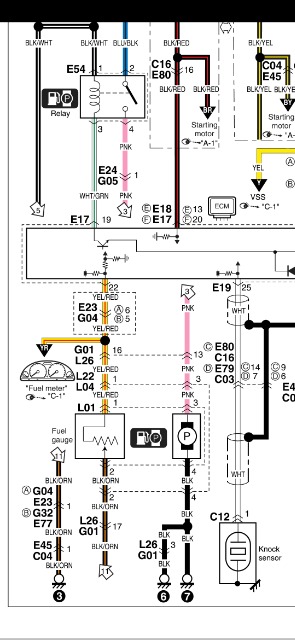

Have you got a wiring diagram?
Mine suggests the pink wire goes to the fuel pump.
Mine suggests the pink wire goes to the fuel pump.
Last edit: 18 Mar 2024 05:49 by Hughes.
