Spot light wiring, help!!!!!!Â£

p1ngu32
New Member
Public

28 Sep 2012 14:02 #49030 by p1ngu32

Replied by p1ngu32 on topic Spot light wiring, help!!!!!!Â£

On your relay, pin 86 to 12v. Pin 85 to earth side of your main beam as the jimny is Negative switched. Pin 87 to 12v. and pin 30 to the postive of your lights.

If you were to splice into any red wire on the jimny then anything you plug into there will be on permanently as the power is always on, suzuki decided to put the switches in the negative side of the wiring.

Please Log in or Create an account to join the conversation.

ne-crock
Topic Author
New Member
Public

28 Sep 2012 15:21 #49034 by ne-crock

Replied by ne-crock on topic Spot light wiring, help!!!!!!Â£

Thanks for the offer but i've finaly got them working now just waiting for darkness to give them a proper test!

Please Log in or Create an account to join the conversation.

dirtydogz
Offline
Platinum Member
Registered

28 Sep 2012 17:24 - 28 Sep 2012 17:29 #49043 by dirtydogz

Replied by dirtydogz on topic Spot light wiring, help!!!!!!Â£

Sorry mate I know it's a bit late now your spot light are working.

I must have posted this about 10 time in the past.
Dirtydogz,.

2002 JLX Soft Top

Jimnybits 2" lift +Pro Comp ES1000 shocks.

Big Jimny rear shock mounts. Big Jimny adjustable panhard rods.
Big Jimny steering damper bracket. Disco Armstrong steering damper. 7X15 black modulars. 205/75/15 Maxxis 743 bravo m/t.Superpro camber correction bushes.Black A bar....

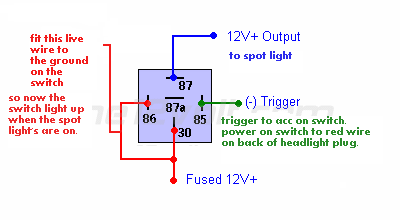

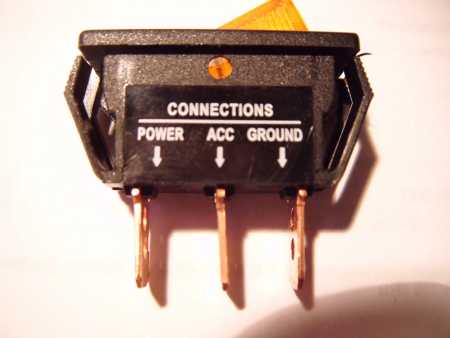

Attachments:

Last edit: 28 Sep 2012 17:29 by dirtydogz.

Please Log in or Create an account to join the conversation.

markyp2000
New Member
Public

28 Sep 2012 17:30 #49044 by markyp2000

Replied by markyp2000 on topic Spot light wiring, help!!!!!!Â£

p1ngu32 wrote: On your relay, pin 86 to 12v. Pin 85 to earth side of your main beam as the jimny is Negative switched. Pin 87 to 12v. and pin 30 to the postive of your lights.

If you were to splice into any red wire on the jimny then anything you plug into there will be on permanently as the power is always on, suzuki decided to put the switches in the negative side of the wiring.

but if you wire a live to the spot light and then the earth to the back of the head light on of the lives goes to an earth but its a bit of a bodge way to do it iv just fited 6 spots on mine run through 3 relays 4 at the front 2 at rear as work lights and soon to be fitting a light in the back running of a pin switch on the rear door but still scratching my head at the mo on how i want to do it

Please Log in or Create an account to join the conversation.

ne-crock
Topic Author
New Member
Public

28 Sep 2012 17:51 #49049 by ne-crock

Replied by ne-crock on topic Spot light wiring, help!!!!!!Â£

Dirtydogz i did bump up an old topic to see if you had the photo as it wouldnt show,

But anyway its done now

Why does it get dark quickly when you dont want it to but when i do the sun is refusing to set!

Please Log in or Create an account to join the conversation.

dirtydogz
Offline
Platinum Member
Registered

28 Sep 2012 18:16 - 28 Sep 2012 19:40 #49054 by dirtydogz

Replied by dirtydogz on topic Spot light wiring, help!!!!!!Â£

Have fun playing with your new toy tonight, they will come in handy when your on a dark county lane at night, when you meet a nutcase :silly: who wont turn his main beam off. :angry:

:evil: :whistle:

2002 JLX Soft Top

Jimnybits 2" lift +Pro Comp ES1000 shocks.

Last edit: 28 Sep 2012 19:40 by dirtydogz.
