Scratch head (Gen 4 Owner manual)

  • Andy2640
  • Topic Author
  • Visitor
  • Visitor
    Public
03 May 2019 06:59 #207178 by Andy2640
Replied by Andy2640 on topic Re:Scratch head (Gen 4 Owner manual)

Lambert wrote: Mine didn't make it to year 4. Since then I have had avm manual ones. Bit more effort but way more reliable and versatile. They allow me to run on the road in 4x2lo which is great for towing and manoeuvring trailers. It is possible to do this electronically on the gen3 as well as mechanically so I suspect that it is a modification in development for the gen4.



Ohh, that dont sound too promising. Even with regular servicing they can still go awry? Damn it. I'll be keeping an eye out for that mod then.

Cheers

Please Log in or Create an account to join the conversation.

  • Lambert
  • Lambert's Avatar
  • Offline
  • Moderator
  • Moderator
    Registered
  • The quickest Jimny in Harrogate...(that I own)
More
03 May 2019 07:09 #207181 by Lambert
Replied by Lambert on topic Re:Scratch head (Gen 4 Owner manual)
On the gen3 there are two failure modes. The solenoid packs that control the vacuum to the hubs can get full of debris and need cleaning if you are lucky or die a miserable death if you are not. And on older cars the vacuum pipes on the axle corrode and leak. They are replaceable but most people will bypass them and either lock the hubs permanently or fit manual ones like I have. Either way not a big deal to sort.
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
The following user(s) said Thank You: Andy2640

Please Log in or Create an account to join the conversation.

More
03 May 2019 07:23 #207182 by Bob1050
Replied by Bob1050 on topic Re:Scratch head (Gen 4 Owner manual)
The section on jacking the Jimny up using a trolley jack (e.g. to change a wheel) is a tad ambiguous. Read the words and look at the diagram - can you put the jack under the axle/diff and lift or not? How should you do it - bet your average garage or tyre depot operative won't be following the Manual..

As for the guidance on changing between 2 & 4 WD and LR and HR - downright confusing.

Please Log in or Create an account to join the conversation.

  • Lambert
  • Lambert's Avatar
  • Offline
  • Moderator
  • Moderator
    Registered
  • The quickest Jimny in Harrogate...(that I own)
More
03 May 2019 07:35 #207184 by Lambert
Replied by Lambert on topic Re:Scratch head (Gen 4 Owner manual)
On th gen3 radius and trailing arms there's little nub things cast into the bottom edges about half way along. They act as locating pins to stop the pad of the jack from slipping. I only put stands under the actual axle and as close to the spring seats as I can.
Temeraire (2018 quasar grey automatic)
One of the last 200ish of the gen3s, probably.
ADOS Attention Deficit Ooooh Shiny!
The following user(s) said Thank You: stiffsteve204me

Please Log in or Create an account to join the conversation.

  • AlexK
  • Visitor
  • Visitor
    Public
03 May 2019 07:57 #207186 by AlexK
Replied by AlexK on topic Scratch head (Gen 4 Owner manual)
The manual was perhaps trying to say don't shift into 4H while depressing the accelerator. If you release the gas pedal it will reduce the load in the drivetrain making it easier for the transfer case to engage the front axle.

Please Log in or Create an account to join the conversation.

  • Andy2640
  • Topic Author
  • Visitor
  • Visitor
    Public
03 May 2019 08:10 - 03 May 2019 08:11 #207188 by Andy2640
Replied by Andy2640 on topic Re:Scratch head (Gen 4 Owner manual)

Bob1050 wrote: The section on jacking the Jimny up using a trolley jack (e.g. to change a wheel) is a tad ambiguous. Read the words and look at the diagram - can you put the jack under the axle/diff and lift or not? How should you do it - bet your average garage or tyre depot operative won't be following the Manual..

As for the guidance on changing between 2 & 4 WD and LR and HR - downright confusing.


Thats a good point.

My tyre fitter, jacked it up from around the axle, couldnt see exactly where, as i was sneeky peeking them from a distance. Needless to say i was worried.
Last edit: 03 May 2019 08:11 by Andy2640.

Please Log in or Create an account to join the conversation.

More
03 May 2019 20:59 #207240 by Bob1050
Replied by Bob1050 on topic Re:Scratch head (Gen 4 Owner manual)
I'd be interested in other forum members thoughts on the wording and diagram in the Manual for lifting the new Jimny. I have re-read it and it's ambiguous (to me) to say the least.

Please Log in or Create an account to join the conversation.

More
04 May 2019 06:53 #207261 by stiffsteve204me
Replied by stiffsteve204me on topic Re:Scratch head (Gen 4 Owner manual)

Bob1050 wrote: I'd be interested in other forum members thoughts on the wording and diagram in the Manual for lifting the new Jimny. I have re-read it and it's ambiguous (to me) to say the least.

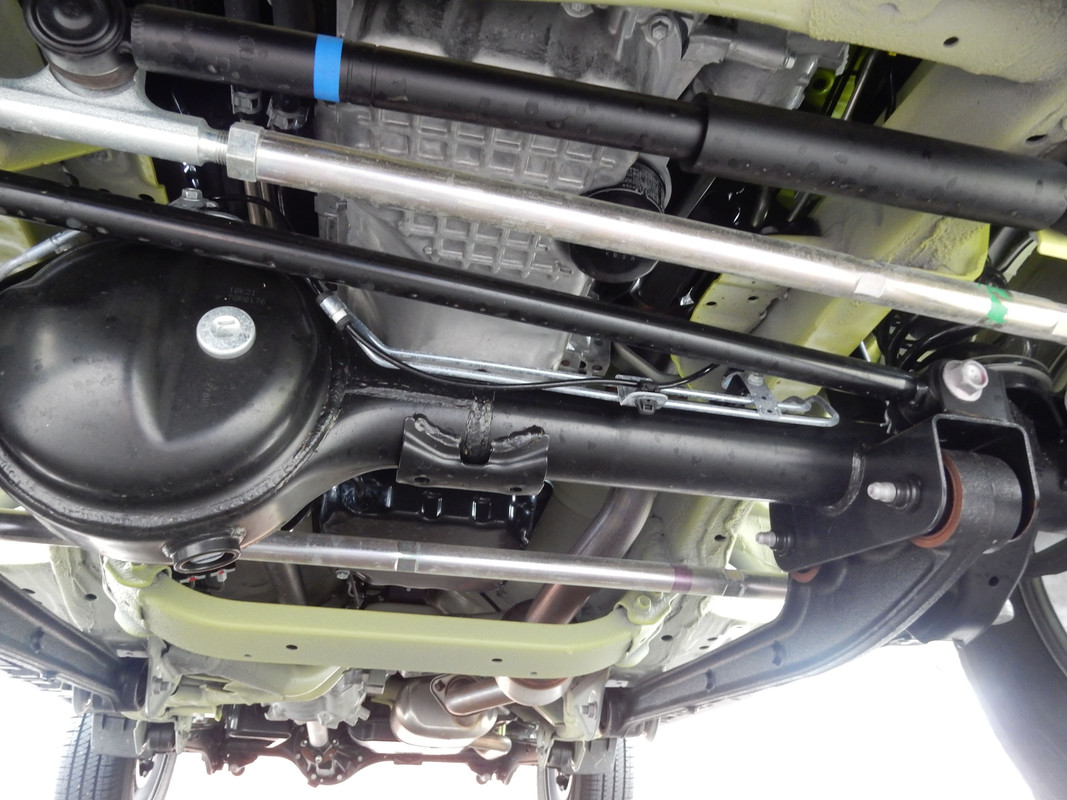

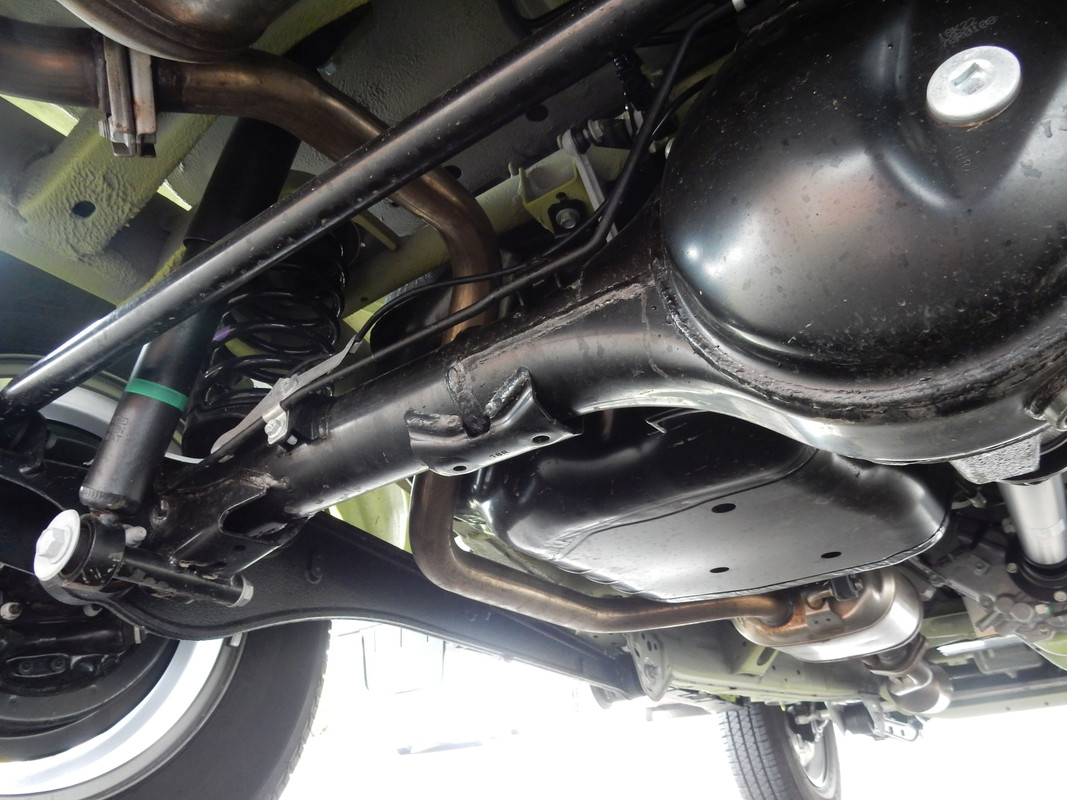

Sect. 7-1. How do you find it ambiguous, Bill?

Dependent on what type of jack is used, it seems clear enough to me, although I have not had a look at the supplied jack, nor the jacking points for its use, to see if there are any issues.
The jacking points for when a trolley jack is used are clearly there.

File Attachment:


File Attachment:







Steve.
“He that strikes the venison first shall be the lord o' the feast.” — Shakespeare, King Lear.
The following user(s) said Thank You: Andy2640

Please Log in or Create an account to join the conversation.

More
04 May 2019 19:46 #207308 by Bob1050
Replied by Bob1050 on topic Re:Scratch head (Gen 4 Owner manual)
Steve - you a real gent posting those pics - suddenly it all becomes clearer. Appreciate you taking the time to take/share those images. Now I will feel more confident when the time comes to rotate all my wheels and ensure tyre wear evens out with the 4WD system.
The following user(s) said Thank You: stiffsteve204me

Please Log in or Create an account to join the conversation.

More
04 May 2019 20:01 #207313 by mlines
Replied by mlines on topic Scratch head (Gen 4 Owner manual)
That "jacking point" looks dual purpose as they state in some publicity material that they have strengthened the axles and that new bracket spans one of the joints that can crack

Sent from my Pixel 2 XL using Tapatalk
Martin

2003 M13 early KAP build.
3" Trailmaster lift with 1.5 Spacers on front
Customised winch bumper and roll cage
235/85R16 Maxxis Bighorns on 16" Rims, 4:1 Rocklobster, Rear ARB locker and on-board air
Corrected arms all-round, rear disks, Recaro seats and harnesses
The following user(s) said Thank You: stiffsteve204me

Please Log in or Create an account to join the conversation.

More
04 May 2019 20:20 #207318 by stiffsteve204me
Replied by stiffsteve204me on topic Re:Scratch head (Gen 4 Owner manual)

Bob1050 wrote: Steve - you a real gent posting those pics - suddenly it all becomes clearer. Appreciate you taking the time to take/share those images. Now I will feel more confident when the time comes to rotate all my wheels and ensure tyre wear evens out with the 4WD system.




No bother, Bob, I assure you. ;)


Steve.
“He that strikes the venison first shall be the lord o' the feast.” — Shakespeare, King Lear.

Please Log in or Create an account to join the conversation.

  • cyberdriver
  • Visitor
  • Visitor
    Public
04 May 2019 22:53 #207332 by cyberdriver
Replied by cyberdriver on topic Re:Scratch head (Gen 4 Owner manual)
"Do not shift the transfer lever without depressing the accelerator pedal"

I would de-press the accelerator and depress the clutch ;)

the bigjimny wiki also says depress when it probably means de-press.

www.bigjimny.com/mediawiki/index.php/DO%...%27T%27s_with_Jimnys

Please Log in or Create an account to join the conversation.
